Removal and Installation of Rear Speaker

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove body side trim panel. Refer to BODY SIDE TRIM .
  2. Remove the three rear speaker screws and remove speaker.
  3. Disconnect connector.
  4. Installation is in the reverse order of removal.
  1. Rear speaker screws: 4 N.m (0.4 kg-m, 35 in-lb)

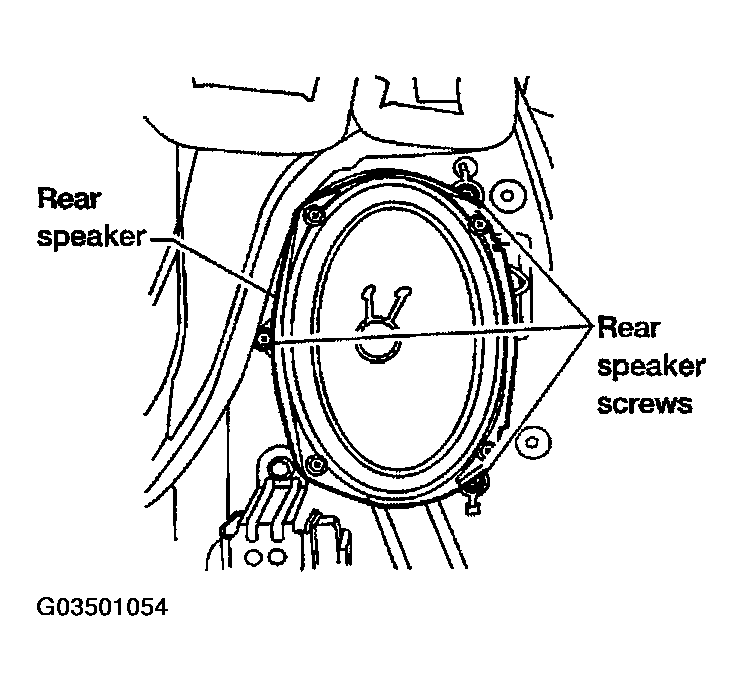

Fig 1: Removing Speaker
G03501054Courtesy of NISSAN MOTOR CO., U.S.A.
