Removal and Installation of Front Door Speaker

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove door finisher. Refer to DOOR FINISHER .
  2. Remove the three front door speaker screws.
  3. Disconnect connector and remove the speaker.
  4. Installation is in the reverse order of removal.
  1. Front door speaker screws: 4 N.m (0.4 kg-m, 35 in-lb)

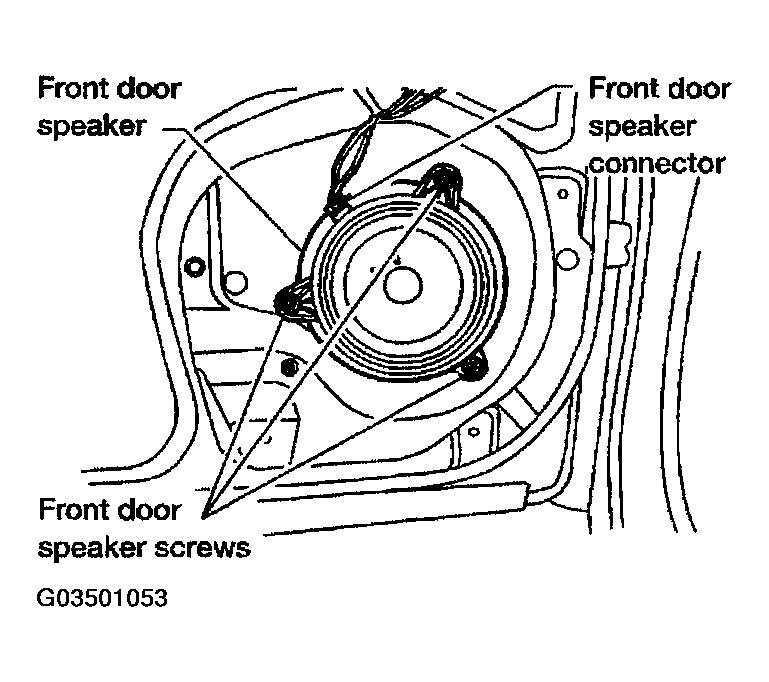

Fig 1: Removing Front Door Speaker Screws
G03501053Courtesy of NISSAN MOTOR CO., U.S.A.
