Removal and Installation of Center Speaker

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove combination meter cover. Refer to COMBINATION METERS .
  2. Remove the center speaker screws
  3. Disconnect connector and remove the speaker.
  4. Installation is in the reverse order of removal.

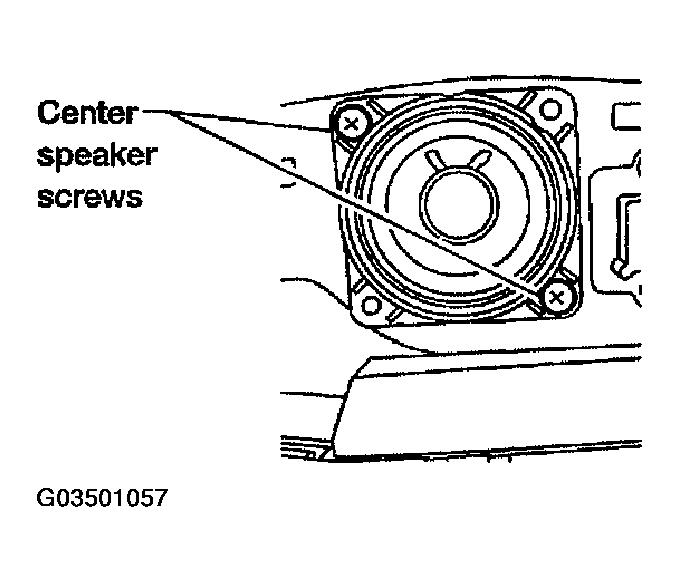

    Fig 1: Removing Center Speaker Screws
    G03501057Courtesy of NISSAN MOTOR CO., U.S.A.
