Light Warning Chime Does Not Operate

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK WARNING CHIME OPERATION
Check key warning chime and seat belt warning chime functions.

Do key warning chime and seat belt warning chime sound?
1. YES: GO TO 2.
2. NO: Go to ALL WARNING CHIMES DO NOT OPERATE .
CHECK BCM INPUT SIGNAL
With CONSULT-II
1. Select "BCM".
2. With "DATA MONITOR" of "BUZZER", confirm "TAIL LAMP SW" status changes when the lighting switch is moved from ON (1st position) to OFF.
  1. Lighting switch ON (1st position): TAIL LAMP SW ON
  2. Lighting switch OFF: TAIL LAMP SW OFF
  Without CONSULT-II

  Check combination switch. Refer to "COMBINATION SWITCH READING FUNCTION ".

  OK or NG
  1. OK: Replace the BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
  2. NG: Check lighting switch. Refer to "COMBINATION SWITCH READING FUNCTION ".

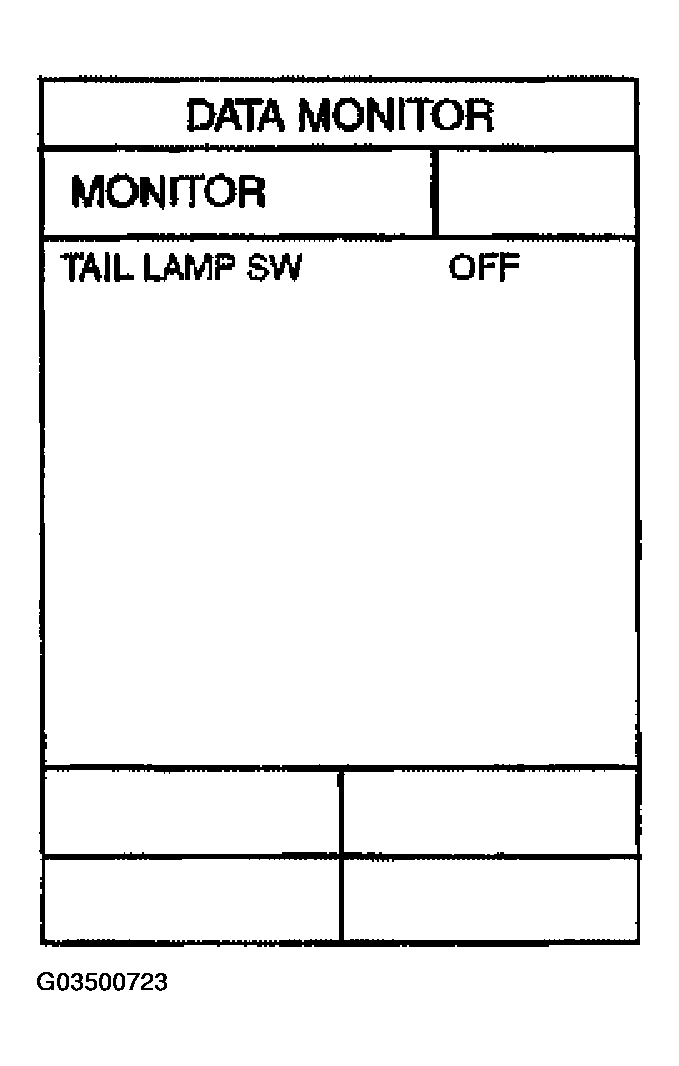

  Fig 1: Data Monitor Display (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
