A/T Indicator Does Not Illuminate

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK SELF-DIAGNOSIS OF COMBINATION METER
Perform combination meter self-diagnosis. Refer to SELF-DIAGNOSIS FUNCTION .

OK or NG
1. OK: GO TO 2.
2. NG: Replace combination meter. Refer to REMOVAL AND INSTALLATION OF COMBINATION METER

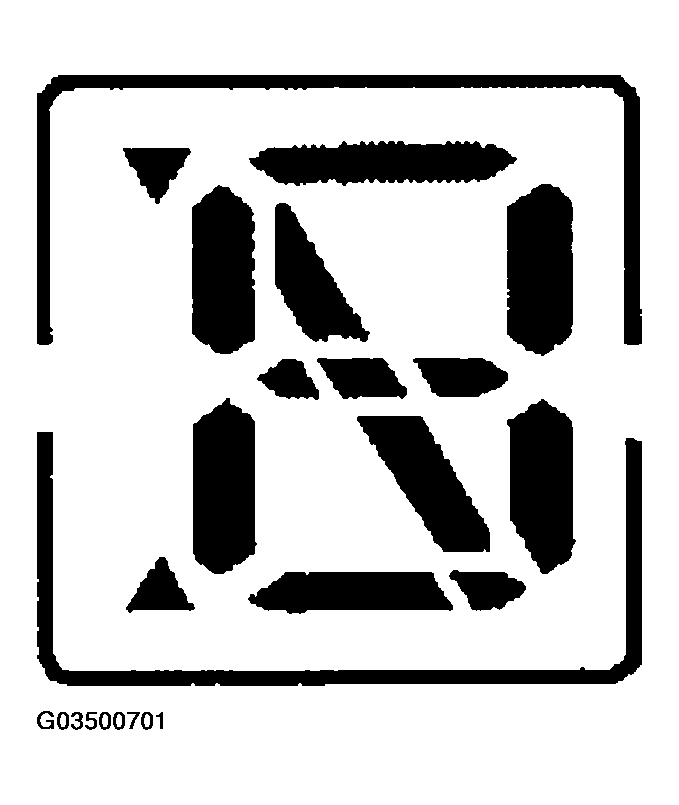

Fig 1: Identifying A/T Indicator
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK TCM
Perform self-diagnosis of TCM. For 4 A/T models, refer to AUTOMATIC TRANSAXLE .

OK or NG
1. OK: Replace combination meter. Refer to REMOVAL AND INSTALLATION OF COMBINATION METER .
2. NG: Check the applicable parts.
