Oil Pressure Switch
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

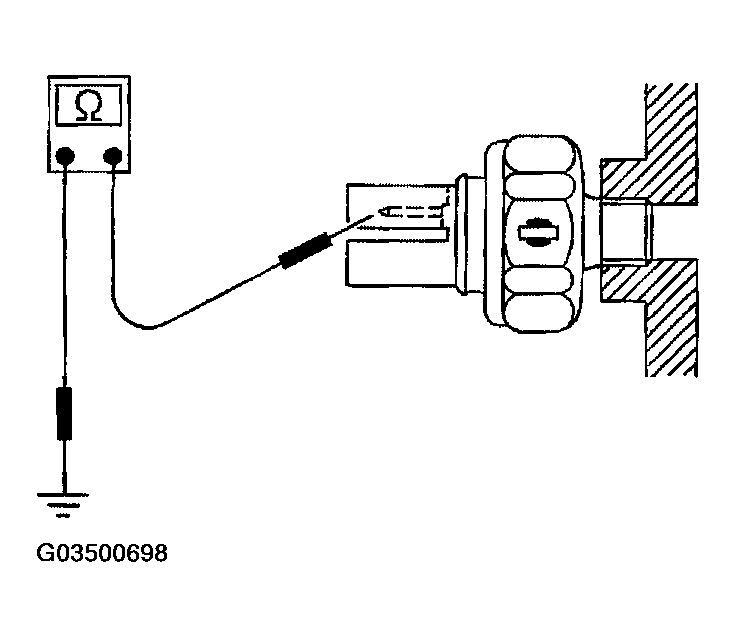

Check continuity between oil pressure switch and ground.
CONTINUITY CHART
| Condition |
Oil pressure kPa (kg/cm2
, psi) |
Continuity |
| Engine stopped |
Less than 29 (0.3, 4) |
Yes |
| Engine running |
More than 29 (0.3, 4) |
No |
Courtesy of NISSAN MOTOR CO., U.S.A.
