How To Initiate Combination Meter Self- Diagnosis Mode

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Once entered, Combination Meter Self-Diagnosis Mode will function with the ignition switch in ON or START. Combination Meter Self-Diagnosis Mode will exit upon turning the ignition switch to OFF. To initiate Combination Meter Self-Diagnosis Mode, refer to the following procedure.

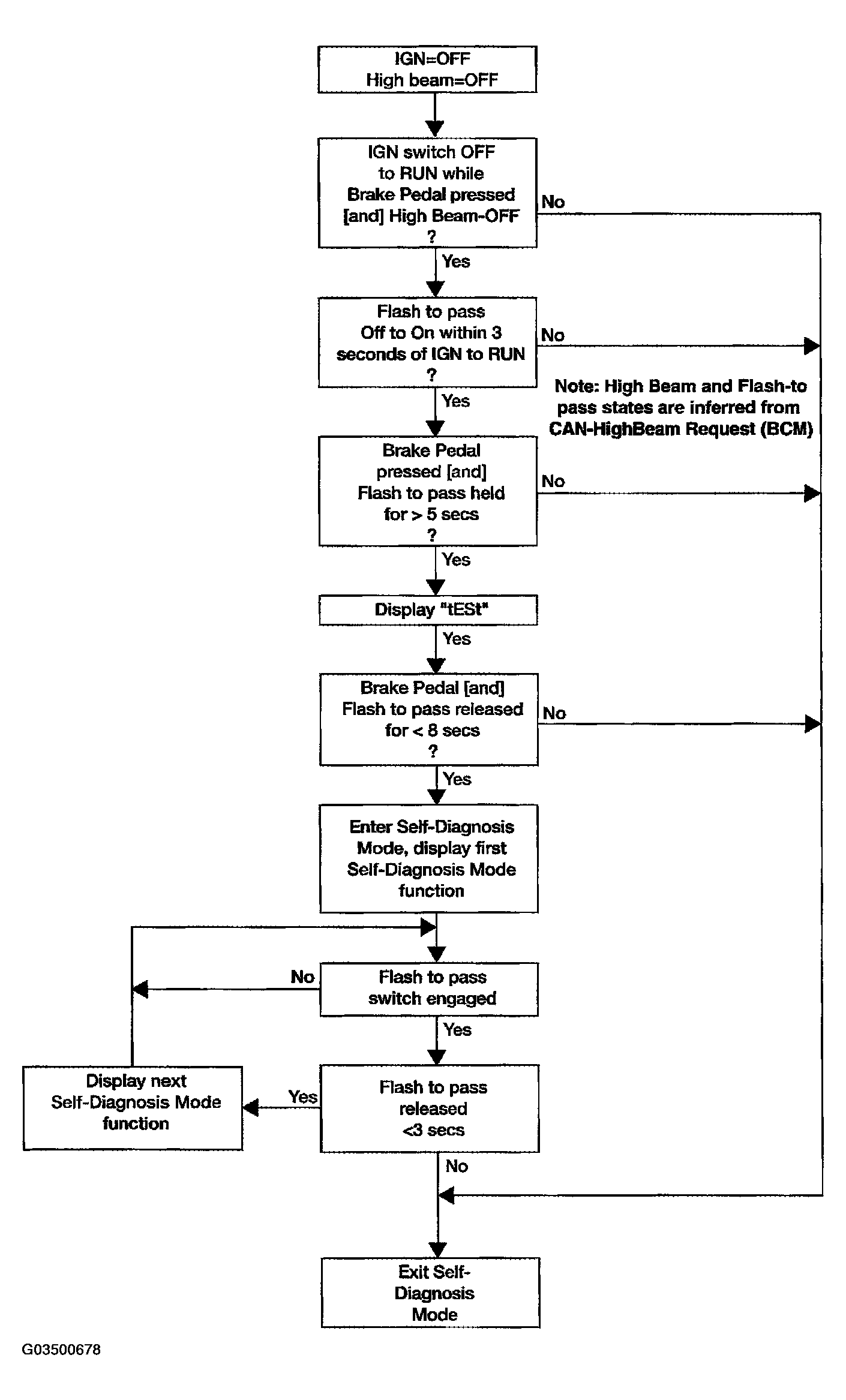

Fig 1: Combination Meter Self- Diagnosis Mode

Courtesy of NISSAN MOTOR CO., U.S.A.
