Wiring Diagram --- INT/L ---

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

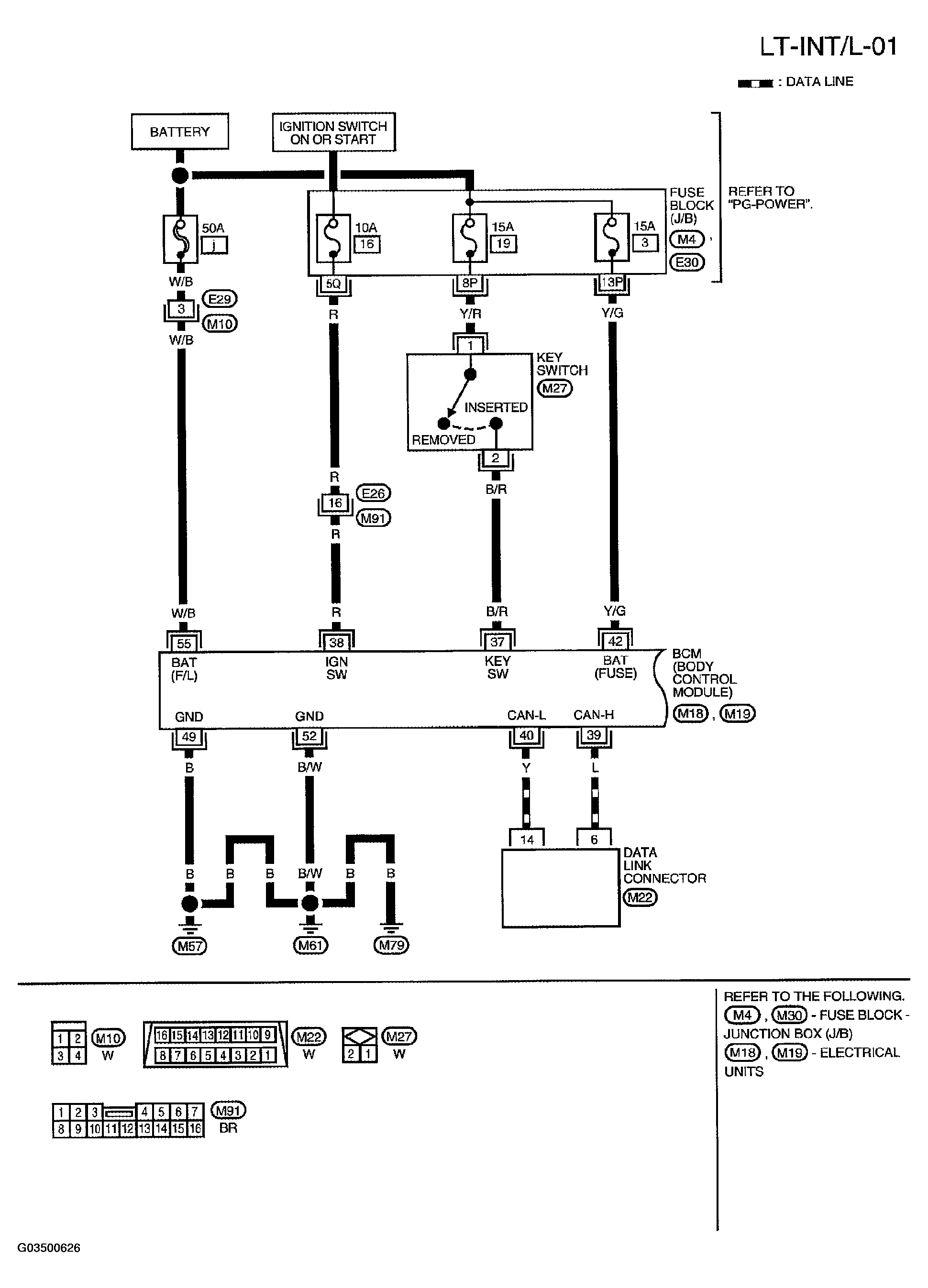

Fig 1: Wiring Diagram - (LT-INT/L-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

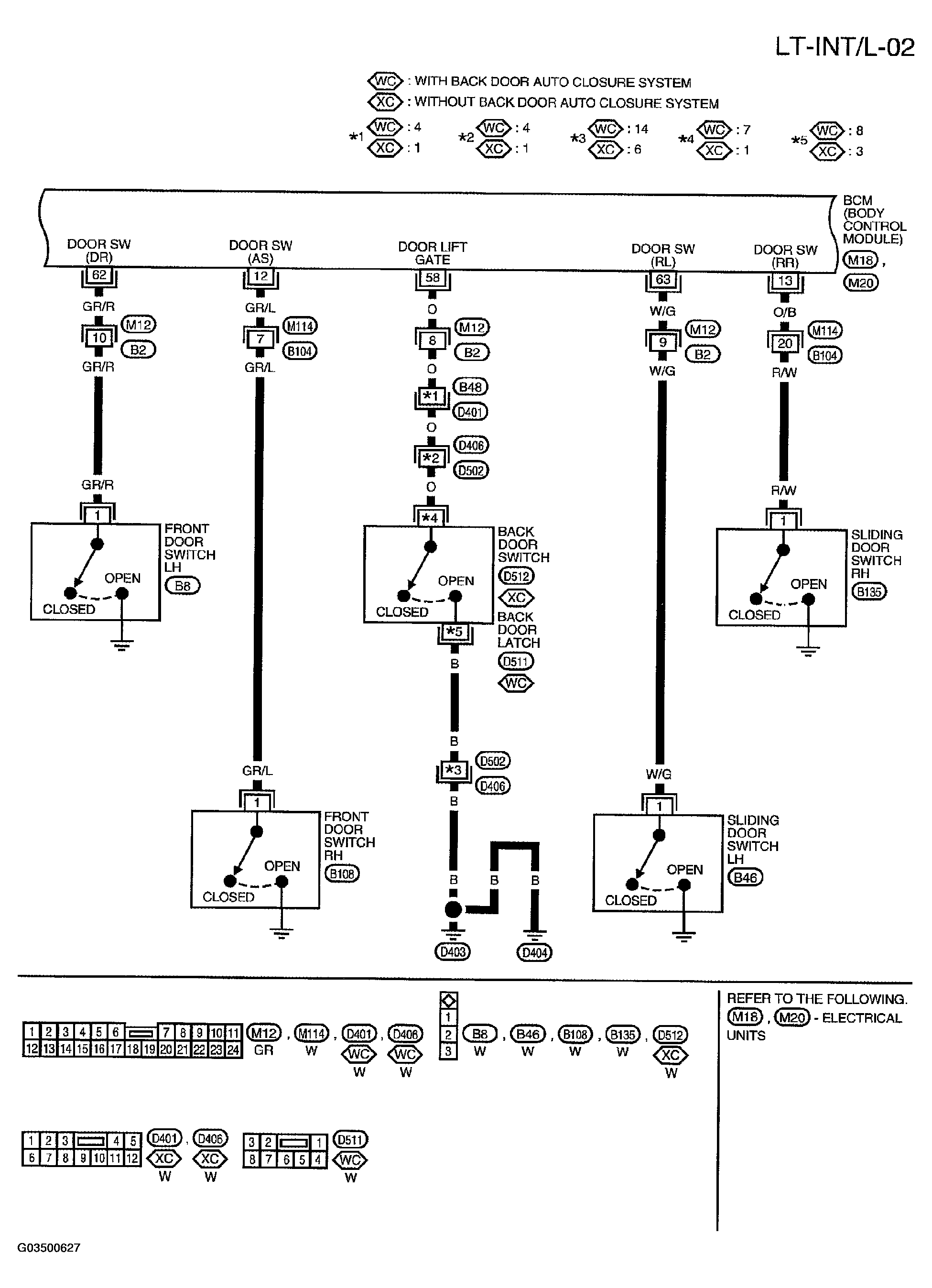

Fig 2: Wiring Diagram - (LT-INT/L-02)

Courtesy of NISSAN MOTOR CO., U.S.A.

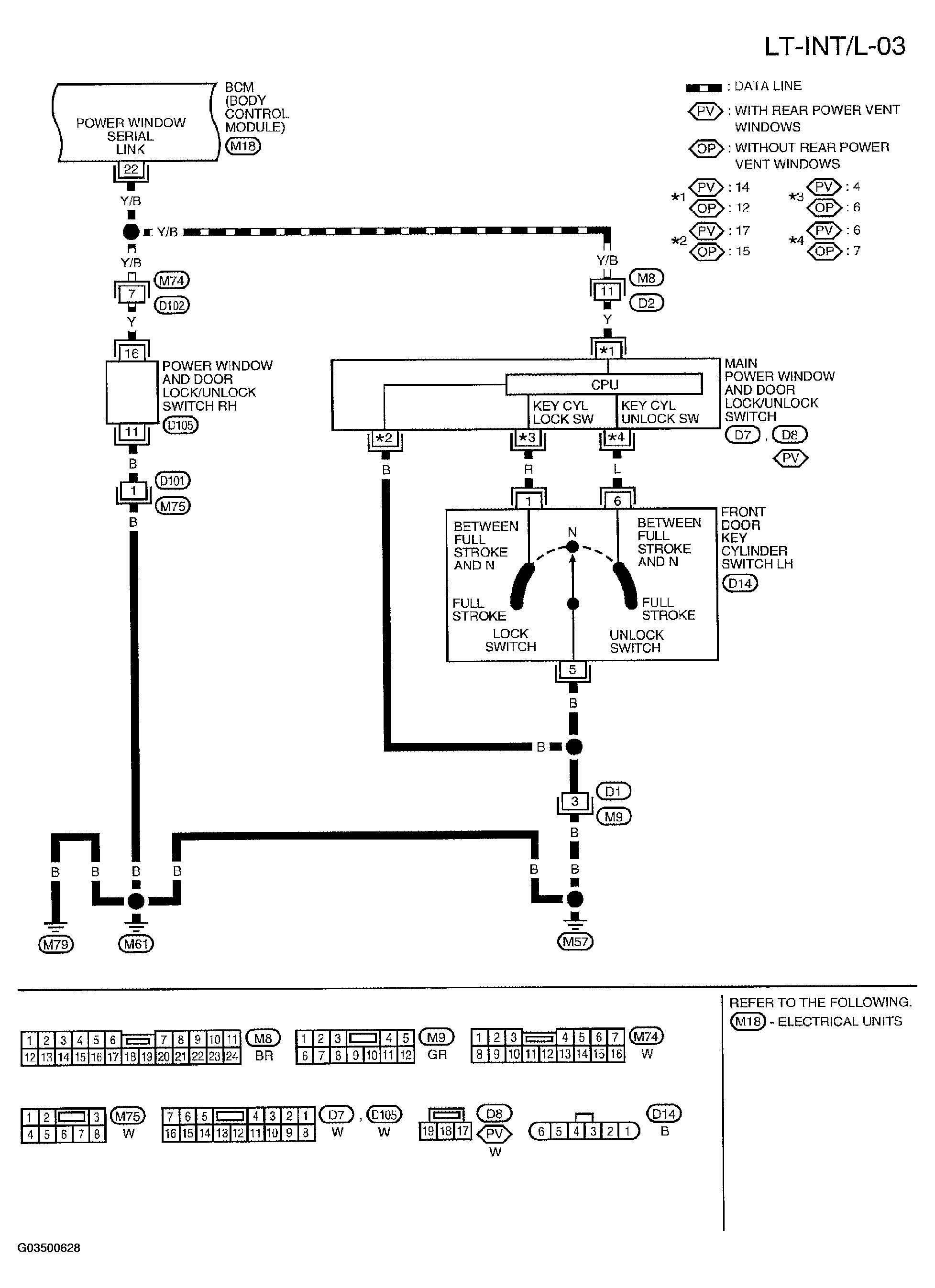

Fig 3: Wiring Diagram - (LT-INT/L-03)

Courtesy of NISSAN MOTOR CO., U.S.A.

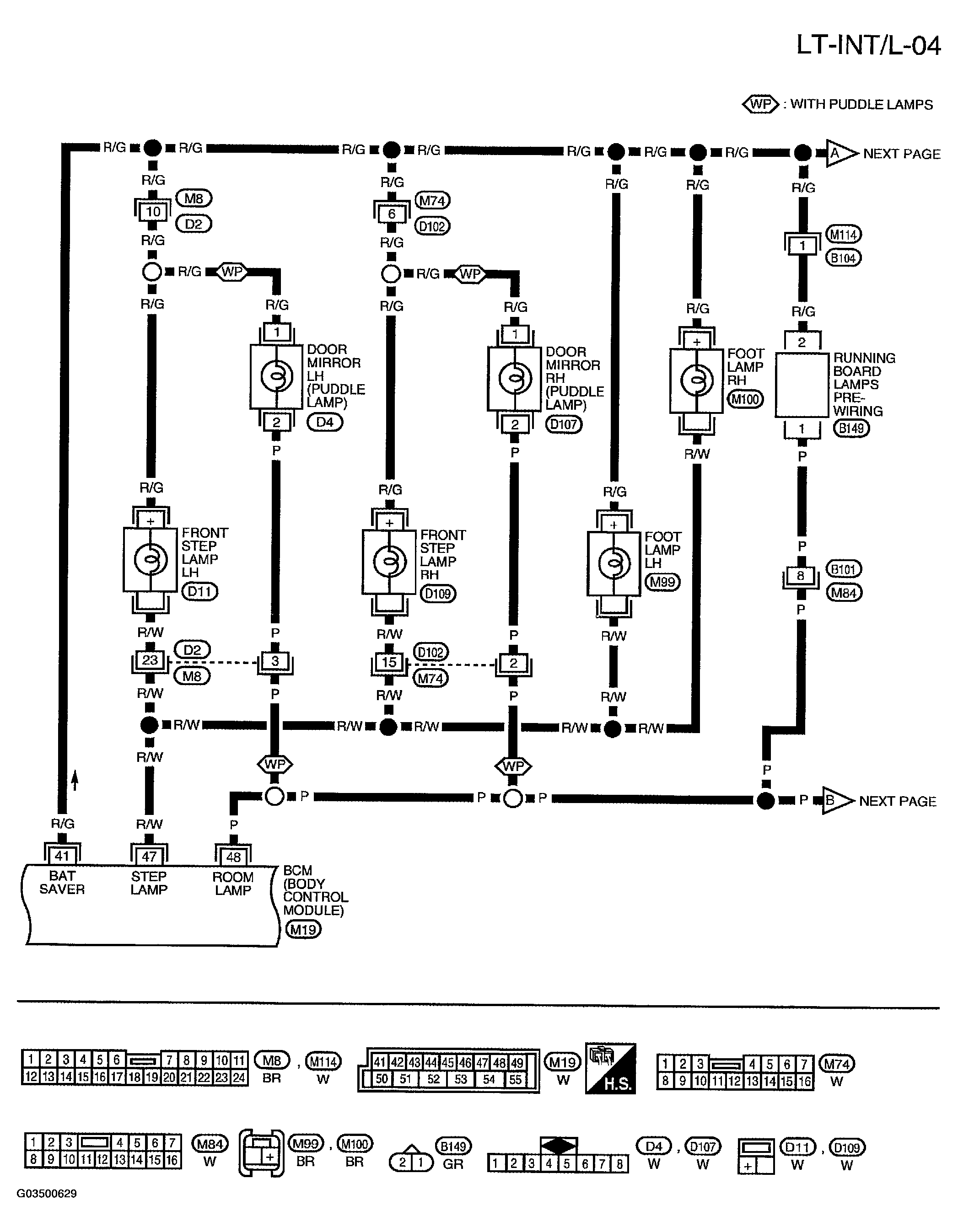

Fig 4: Wiring Diagram - (LT-INT/L-04)

Courtesy of NISSAN MOTOR CO., U.S.A.

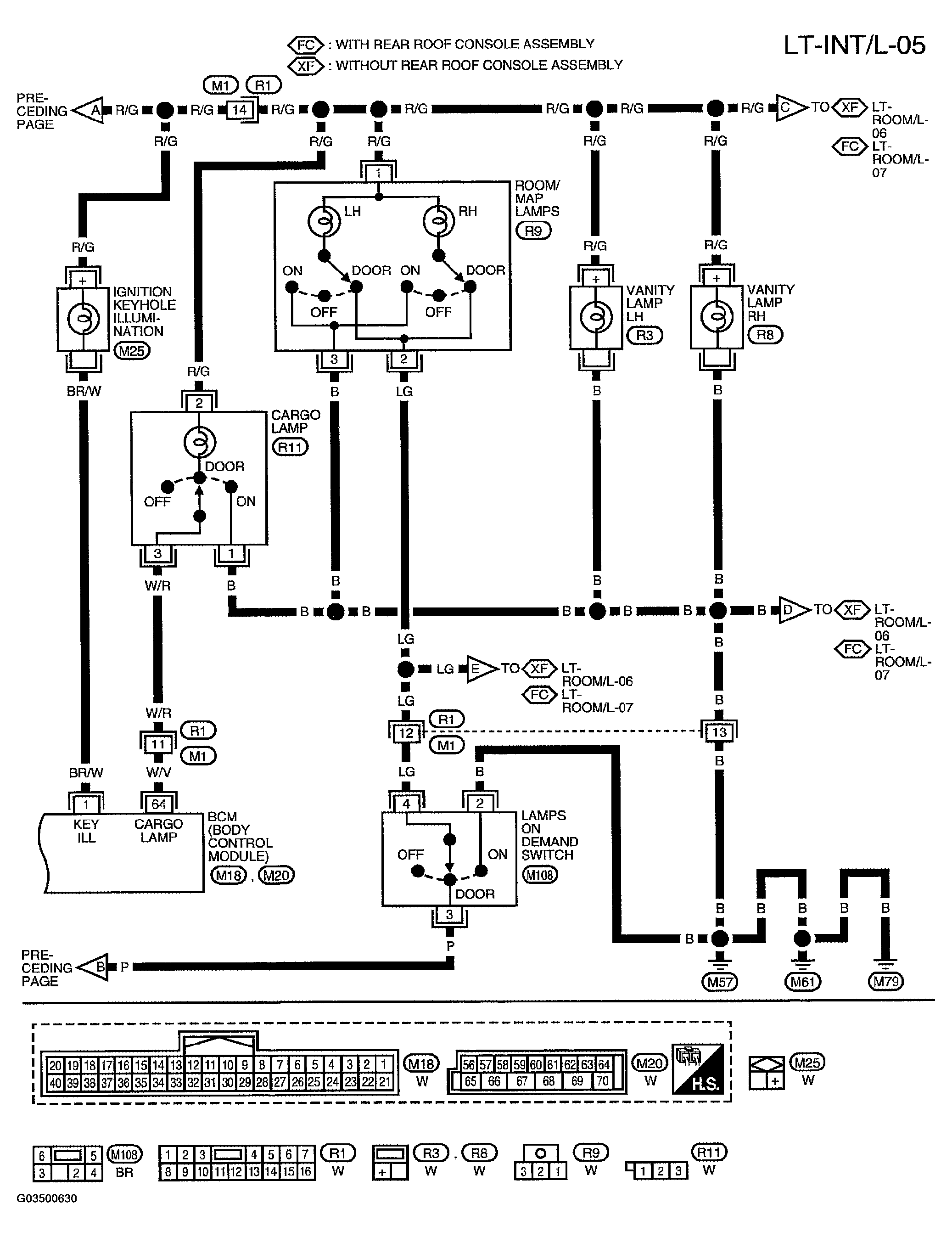

Fig 5: Wiring Diagram - (LT-INT/L-05)

Courtesy of NISSAN MOTOR CO., U.S.A.

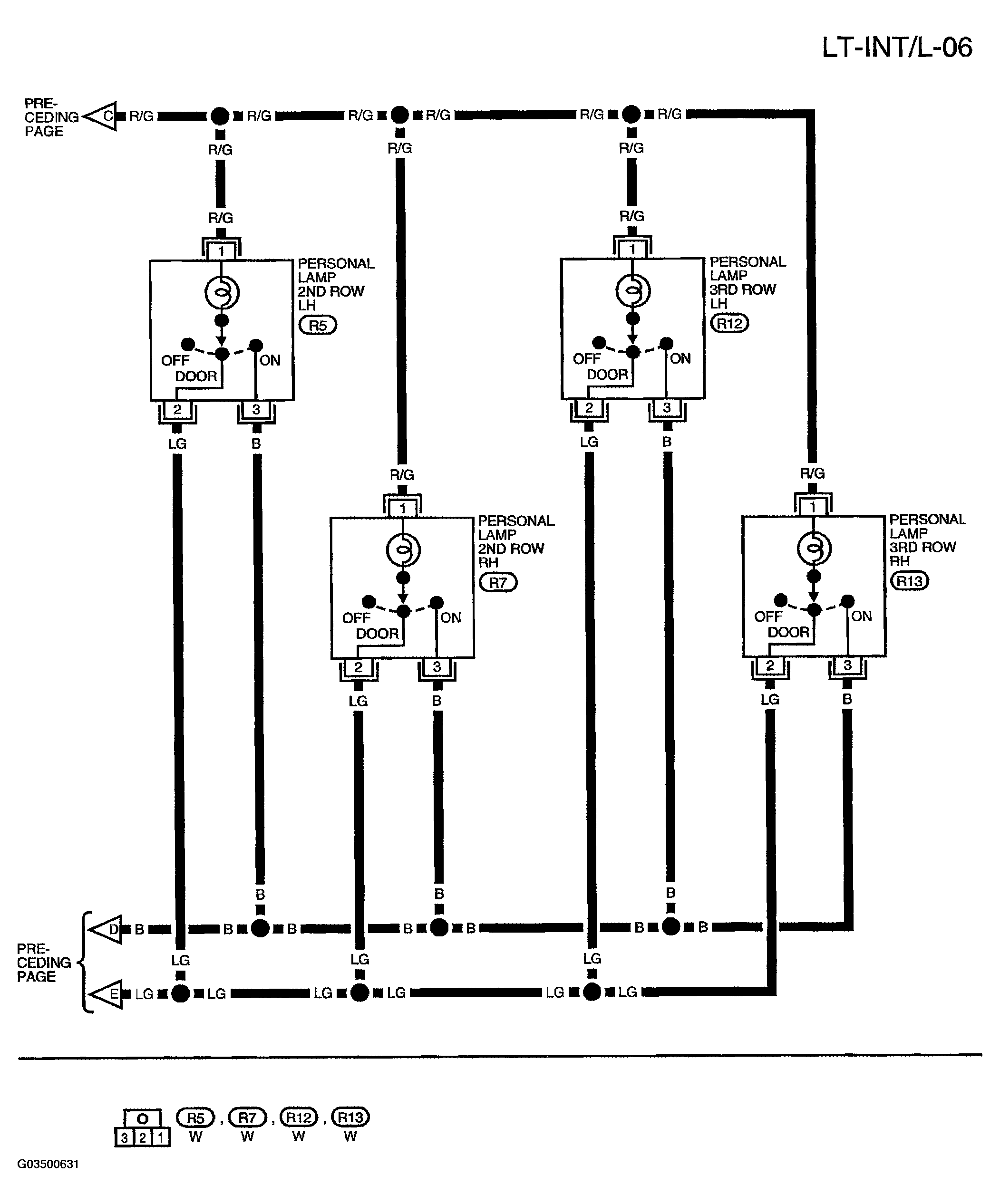

Fig 6: Wiring Diagram - (LT-INT/L-06)

Courtesy of NISSAN MOTOR CO., U.S.A.

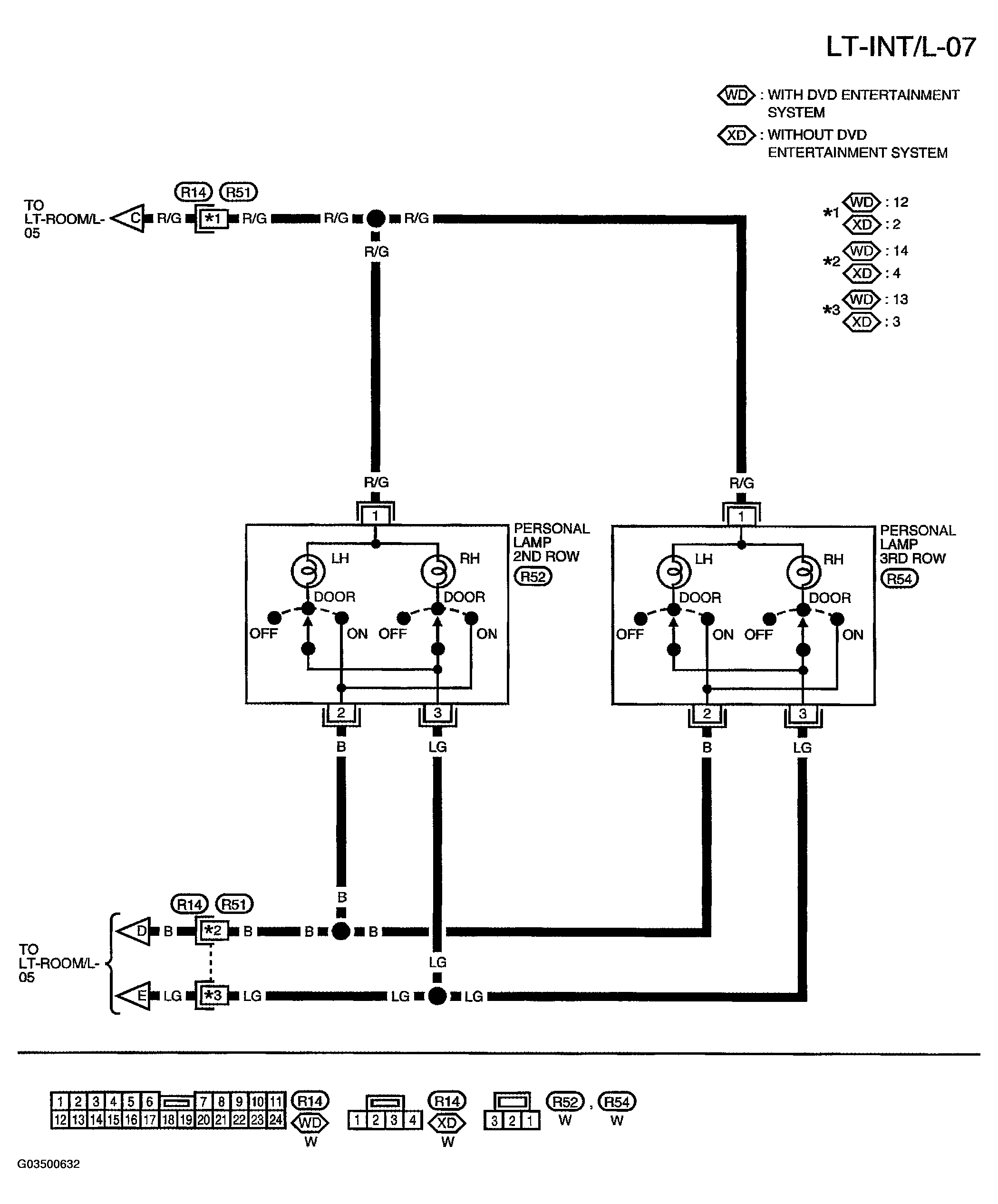

Fig 7: Wiring Diagram - (LT-INT/L-07)

Courtesy of NISSAN MOTOR CO., U.S.A.
