Wiring Diagram - ILL -

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references in wiring diagrams to PG-POWER, see POWER DISTRIBUTION or GROUND DISTRIBUTION .

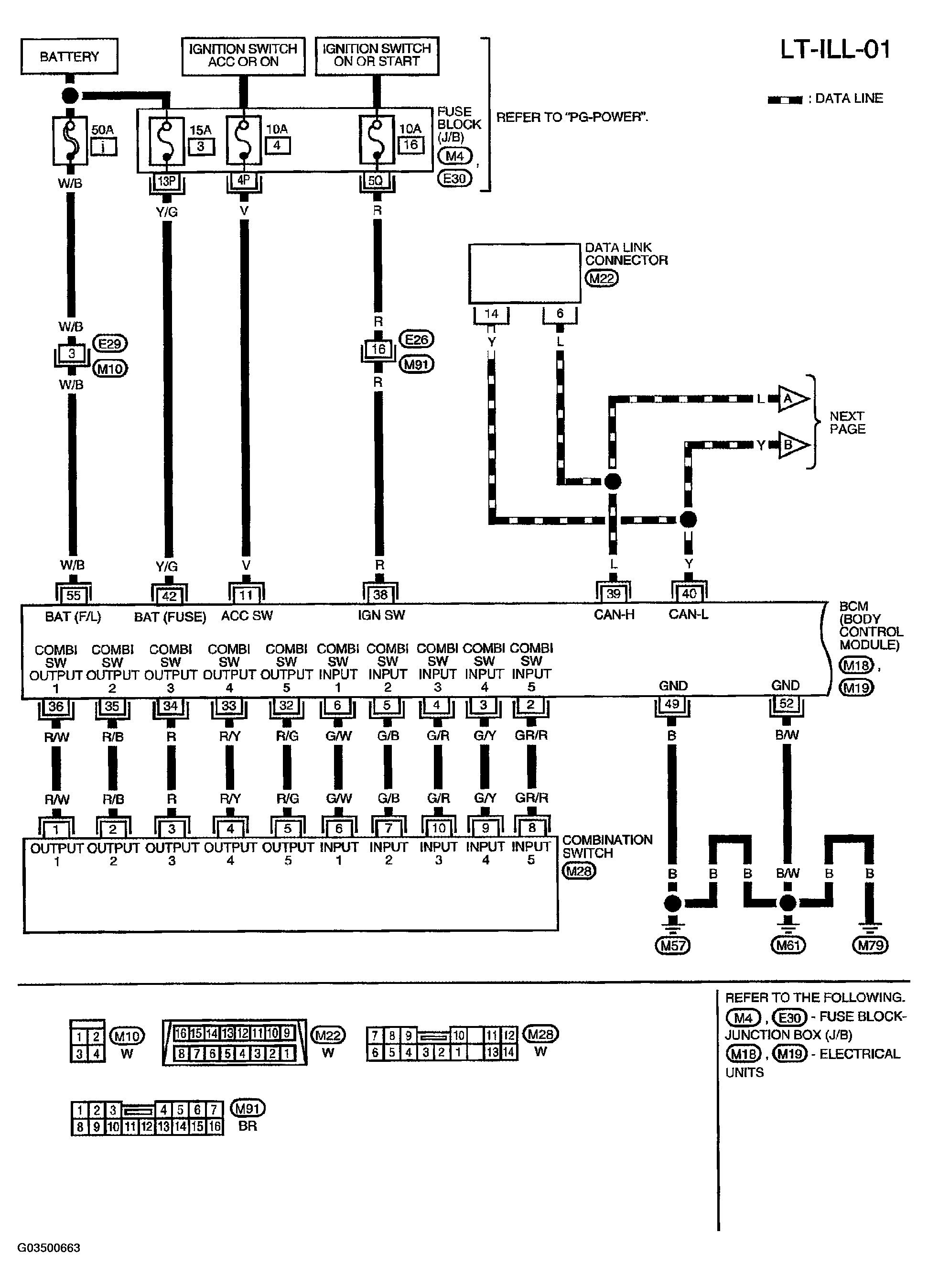

Fig 1: Wiring Diagram - (LT-ILL-01)

G03500663

Courtesy of NISSAN MOTOR CO., U.S.A.

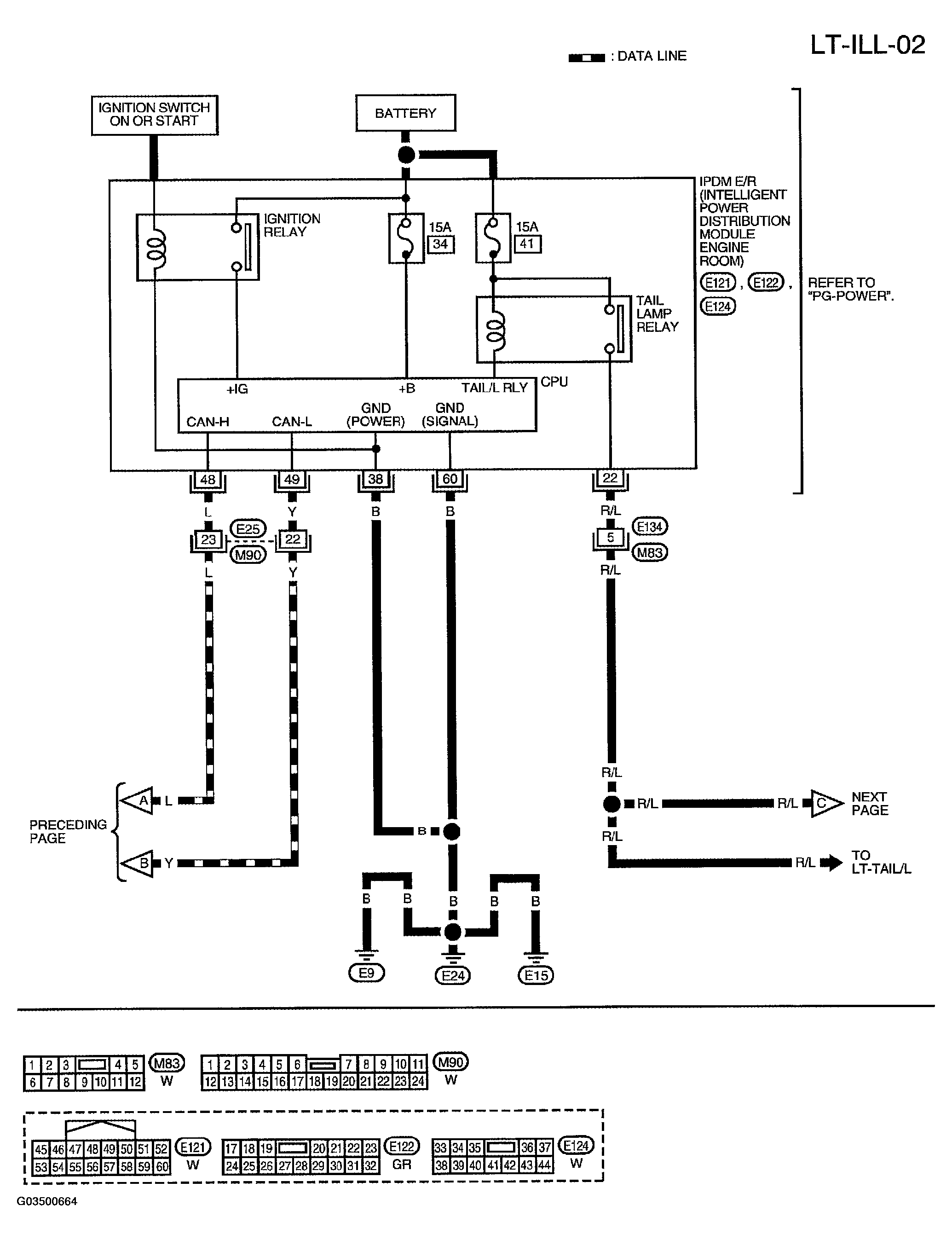

Fig 2: Wiring Diagram - (LT-ILL-02)

G03500664

Courtesy of NISSAN MOTOR CO., U.S.A.

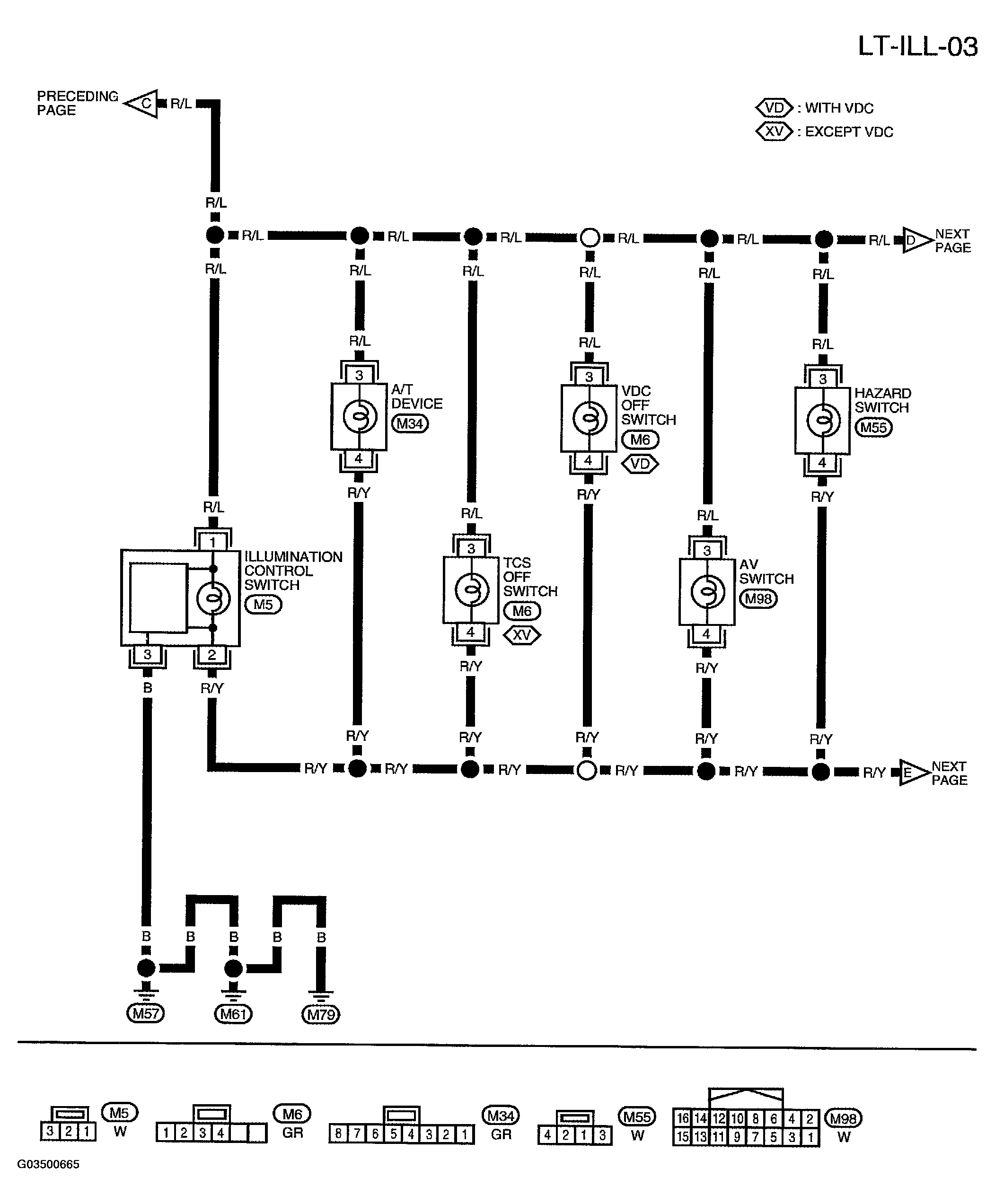

Fig 3: Wiring Diagram - (LT-ILL-03)

G03500665

Courtesy of NISSAN MOTOR CO., U.S.A.

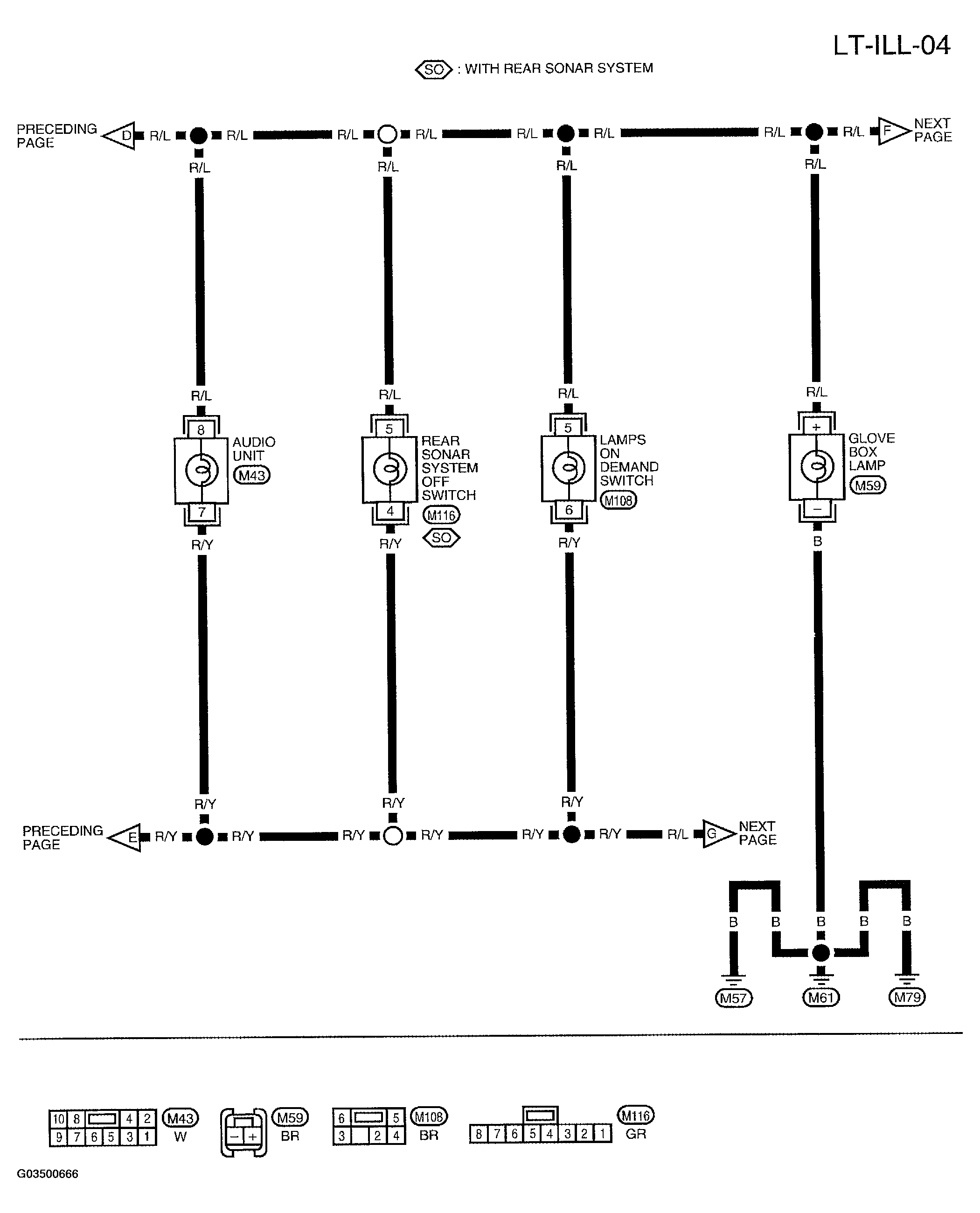

Fig 4: Wiring Diagram - (LT-ILL-04)

G03500666

Courtesy of NISSAN MOTOR CO., U.S.A.

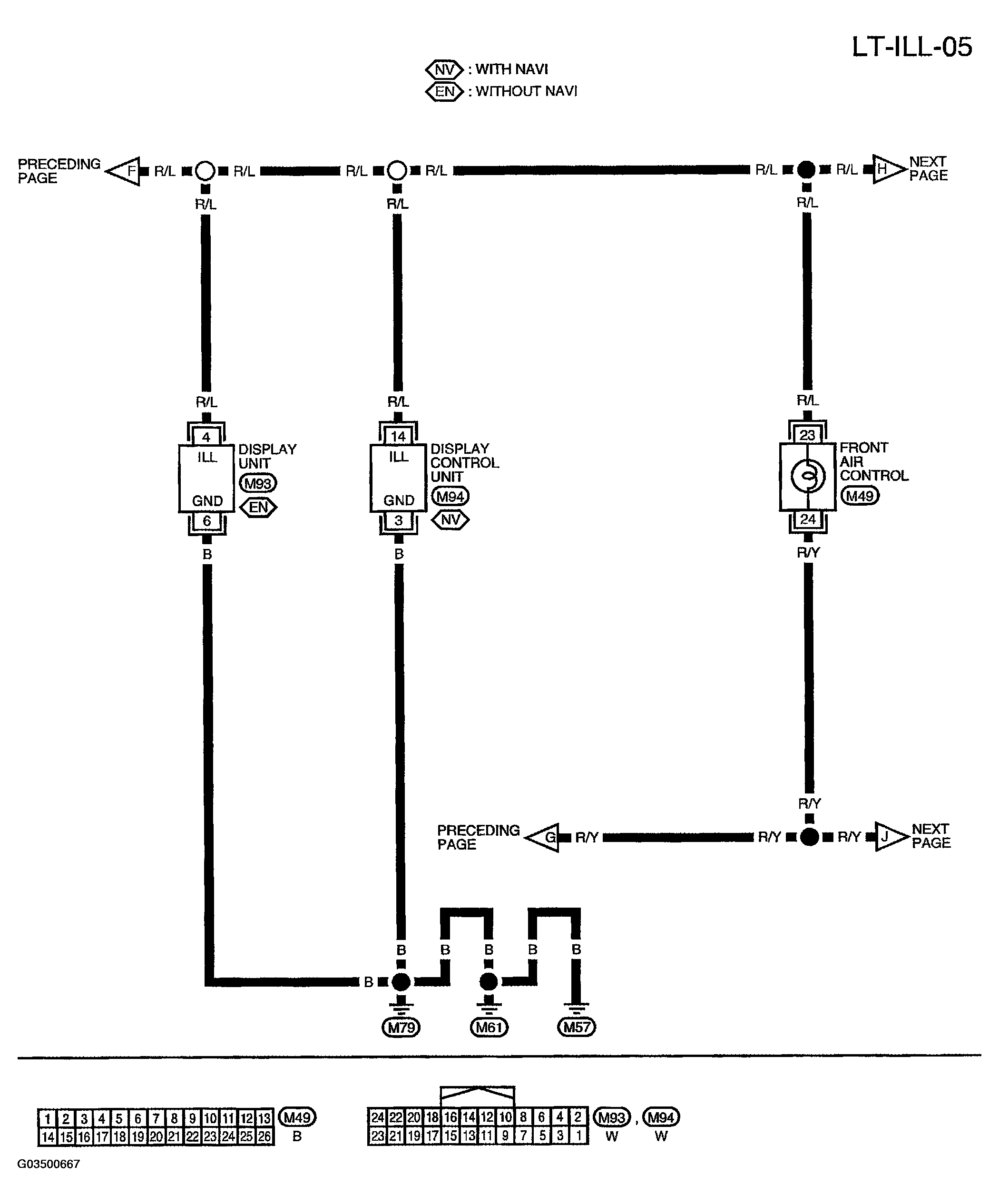

Fig 5: Wiring Diagram - (LT-ILL-05)

G03500667

Courtesy of NISSAN MOTOR CO., U.S.A.

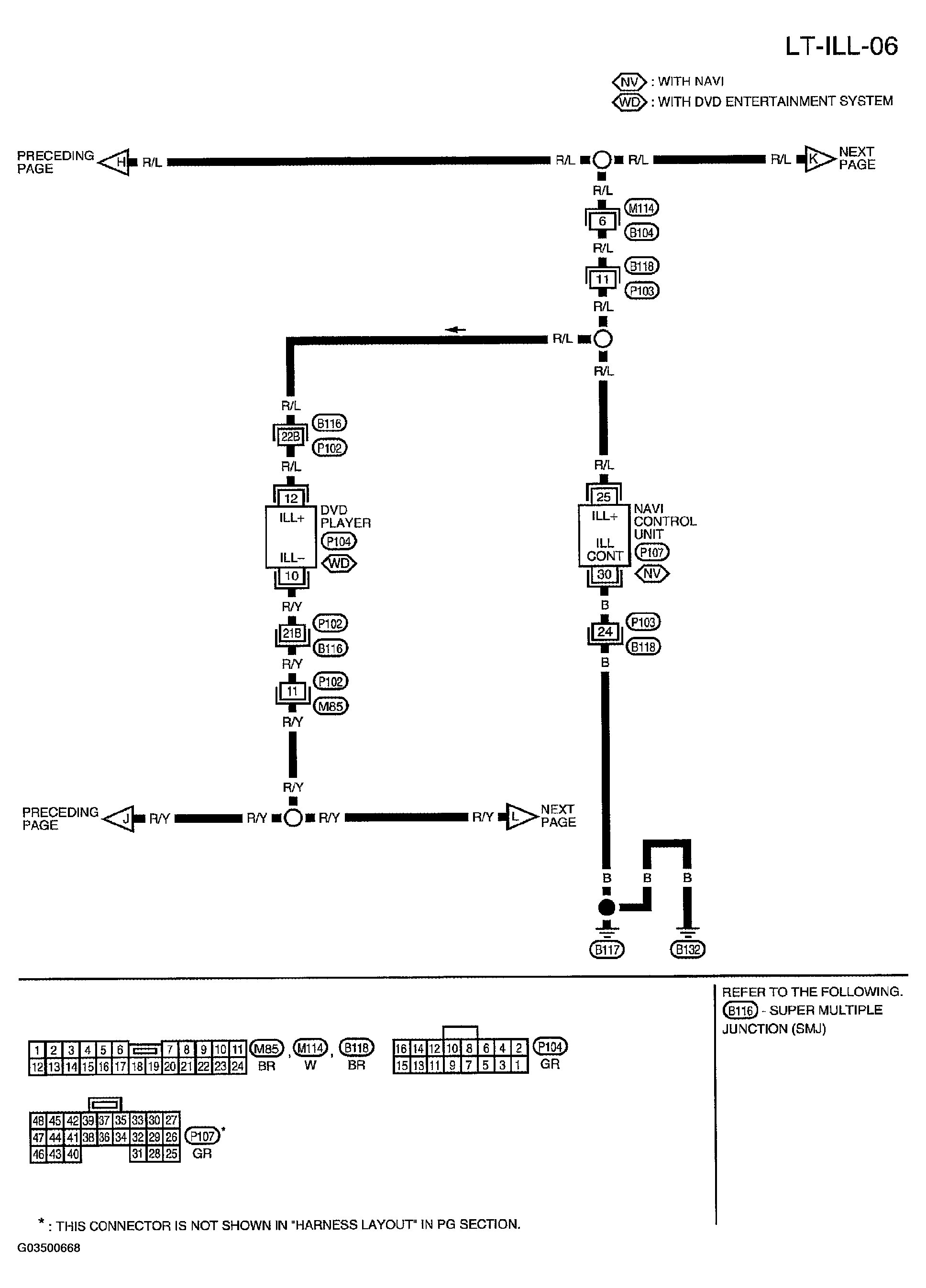

Fig 6: Wiring Diagram - (LT-ILL-06)

G03500668

Courtesy of NISSAN MOTOR CO., U.S.A.

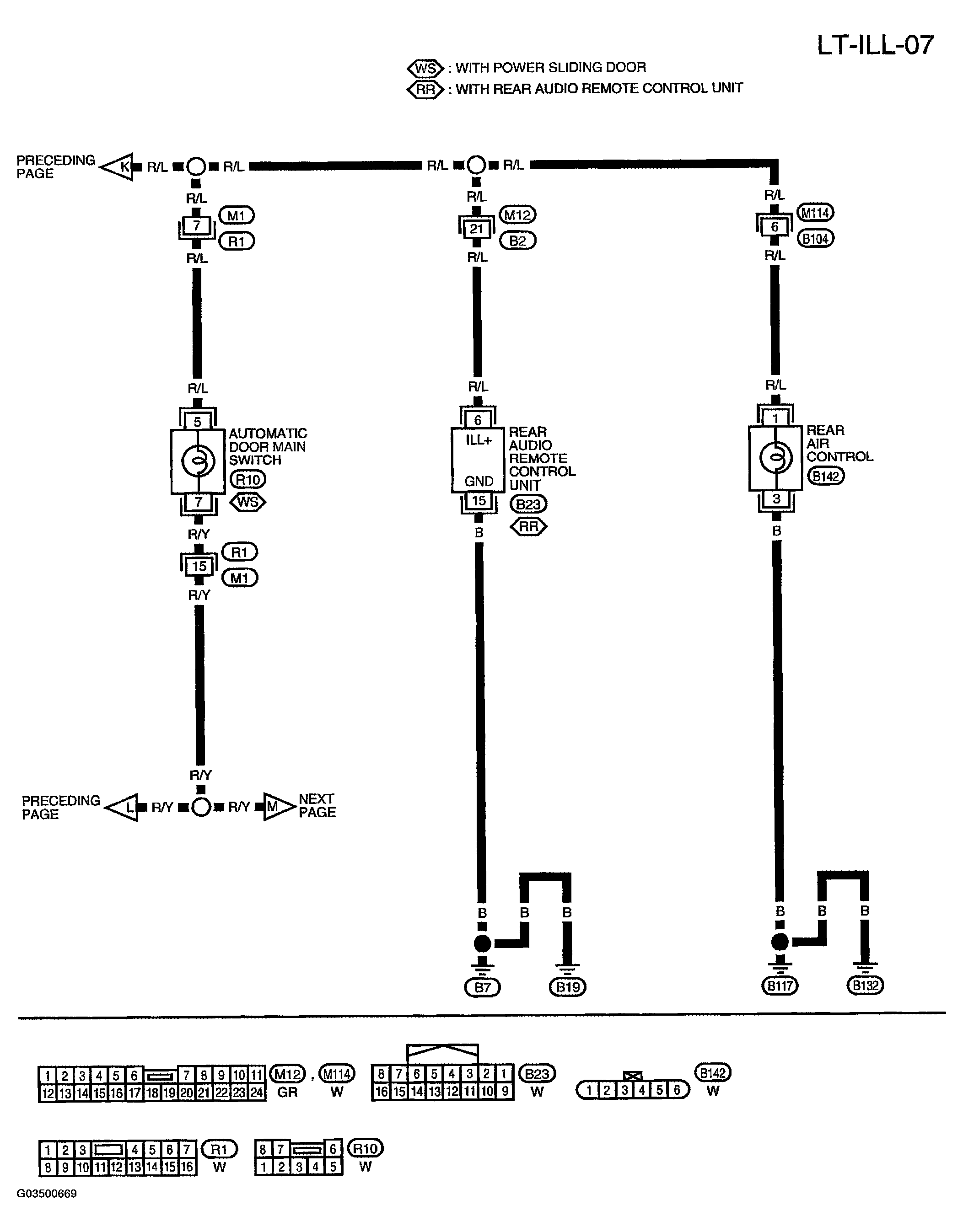

Fig 7: Wiring Diagram - (LT-ILL-07)

G03500669

Courtesy of NISSAN MOTOR CO., U.S.A.

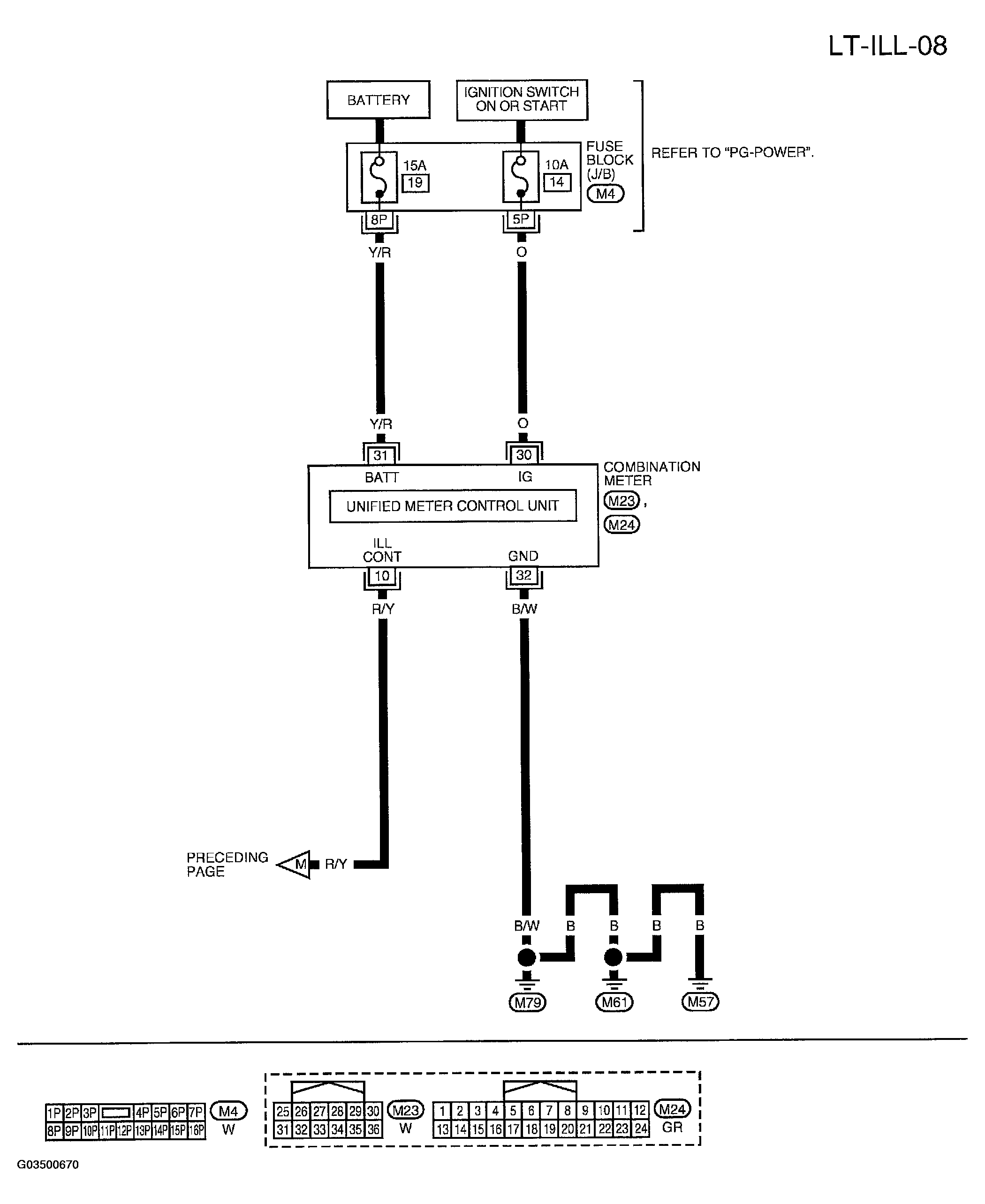

Fig 8: Wiring Diagram - (LT-ILL-08)

G03500670

Courtesy of NISSAN MOTOR CO., U.S.A.

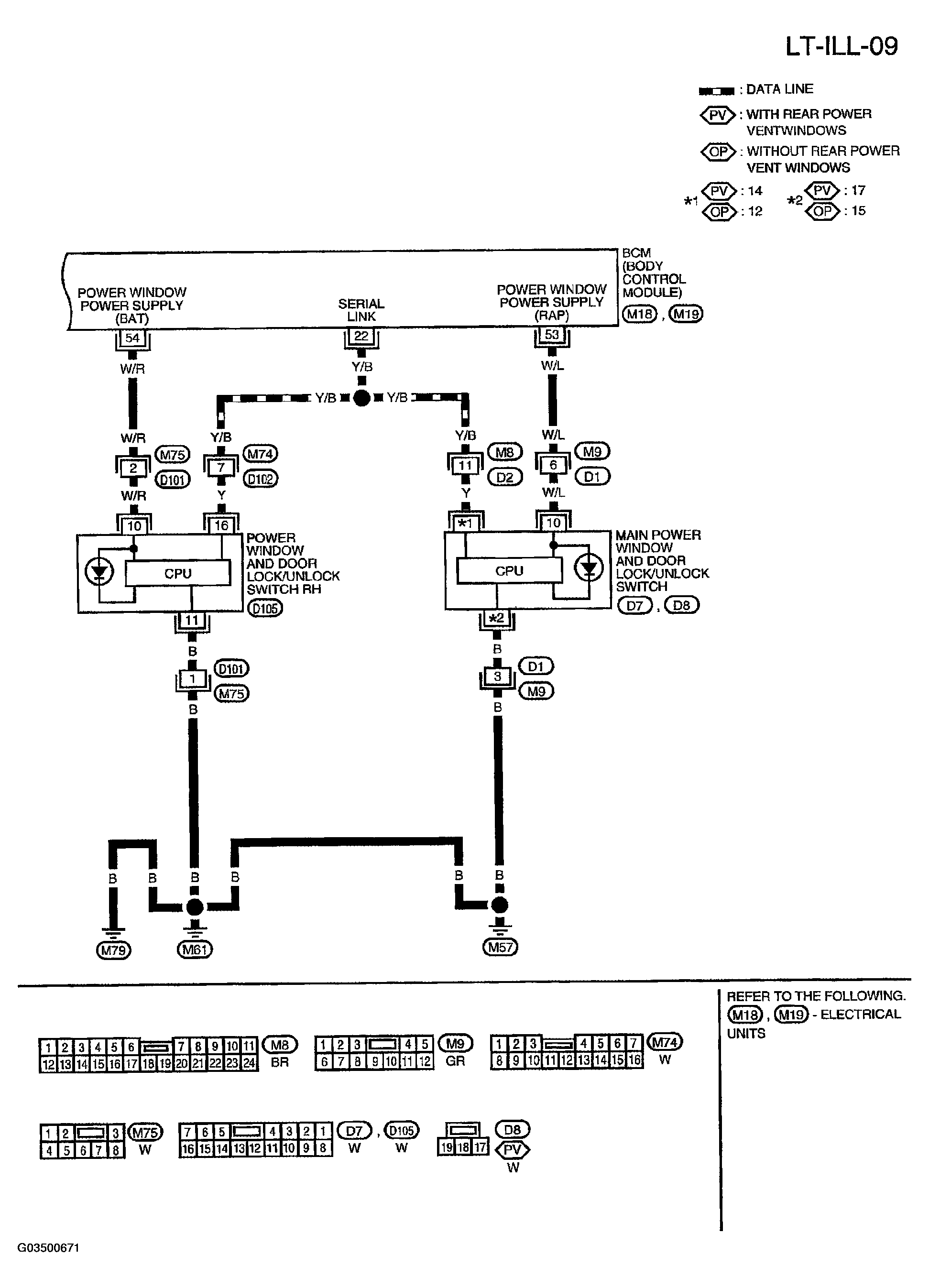

Fig 9: Wiring Diagram - (LT-ILL-09)

G03500671

Courtesy of NISSAN MOTOR CO., U.S.A.
