Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering column cover.
  2. While pressing tabs, pull lighting and turn signal switch toward driver door and disconnect from the base.

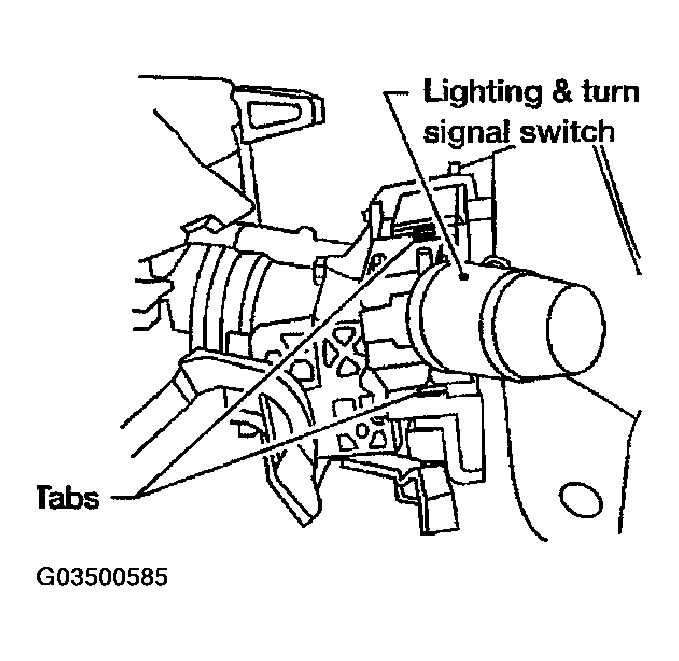

    Fig 1: Removing Tabs And Lighting And Turn Signal Switch
    G03500585Courtesy of NISSAN MOTOR CO., U.S.A.
