Wiring Diagram - DTRL

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references to PG-POWER, see GROUND DISTRIBUTION or POWER DISTRIBUTION .

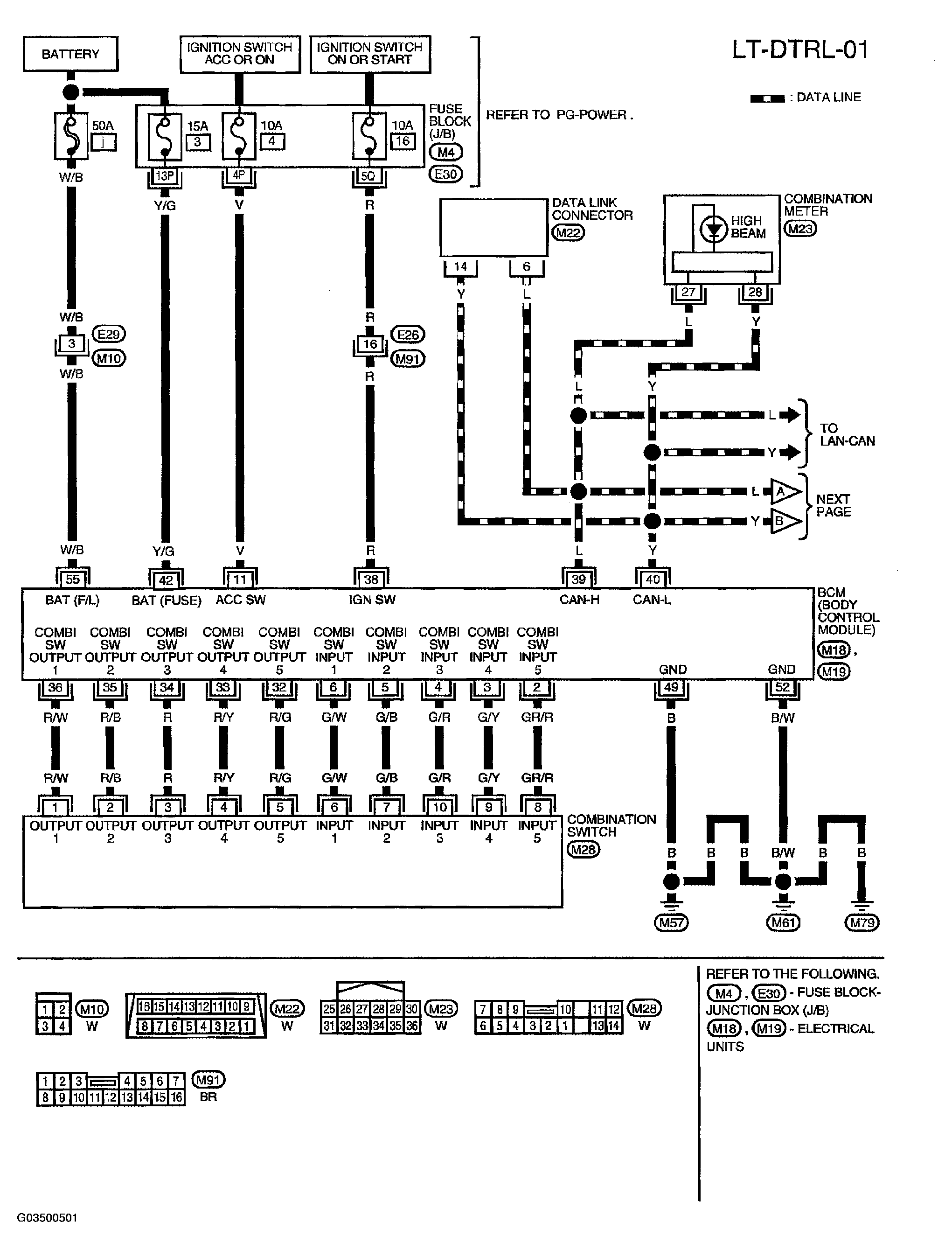

Fig 1: Wiring Diagram - (LT-DTRL-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

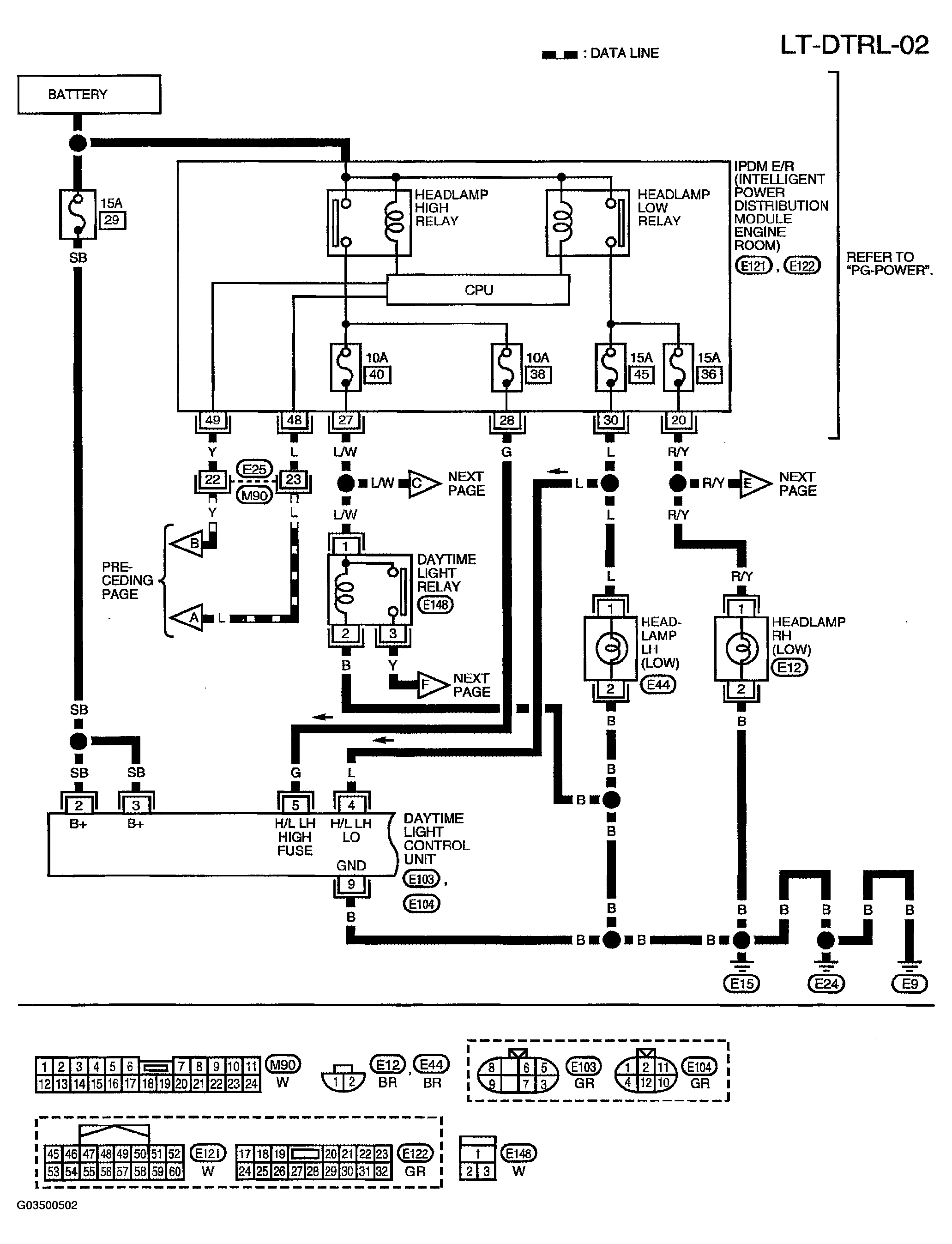

Fig 2: Wiring Diagram - (LT-DTRL-02)

Courtesy of NISSAN MOTOR CO., U.S.A.

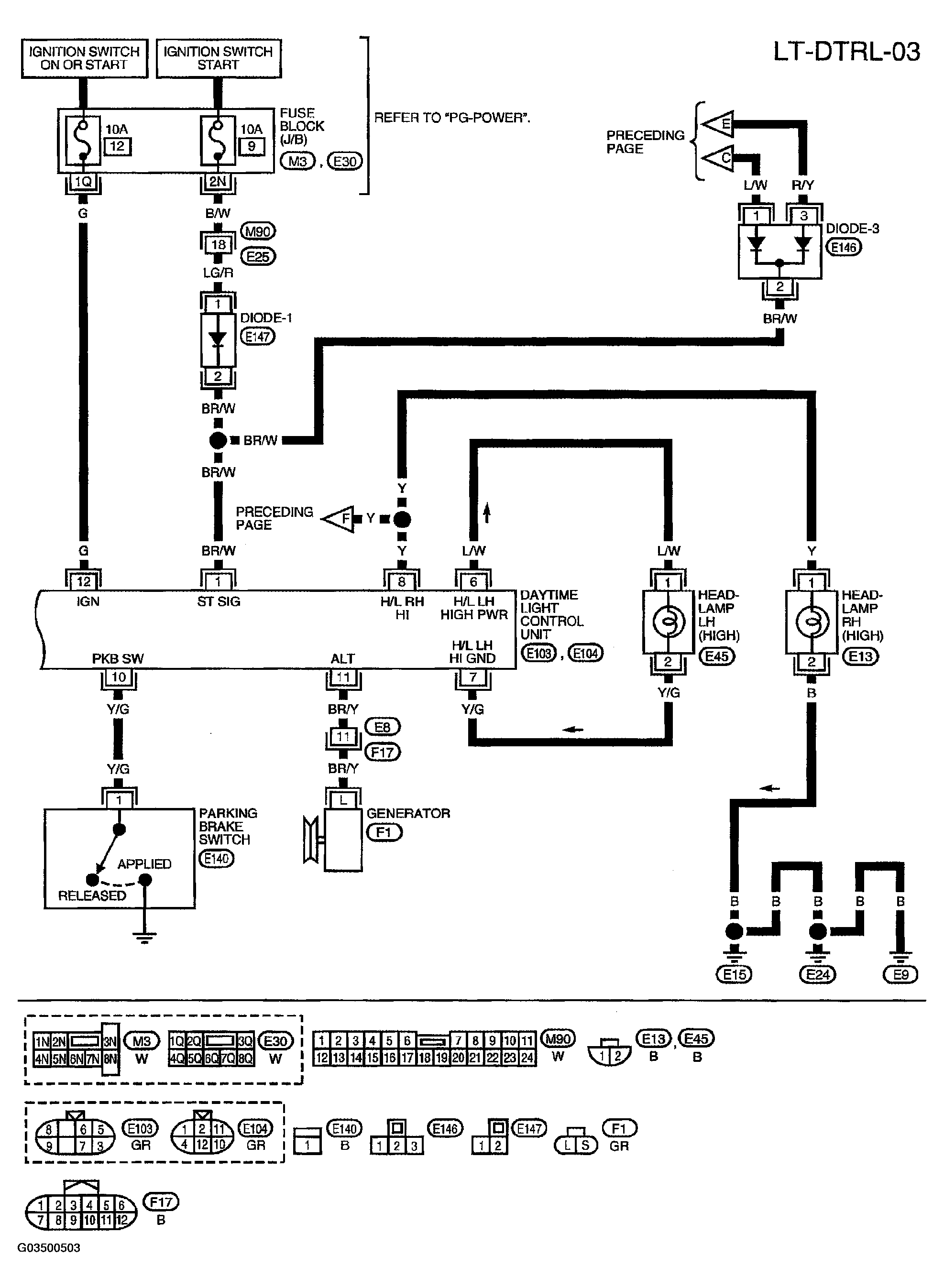

Fig 3: Wiring Diagram - (LT-DTRL-03)

Courtesy of NISSAN MOTOR CO., U.S.A.
