Hydrometer Temperature Correction

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

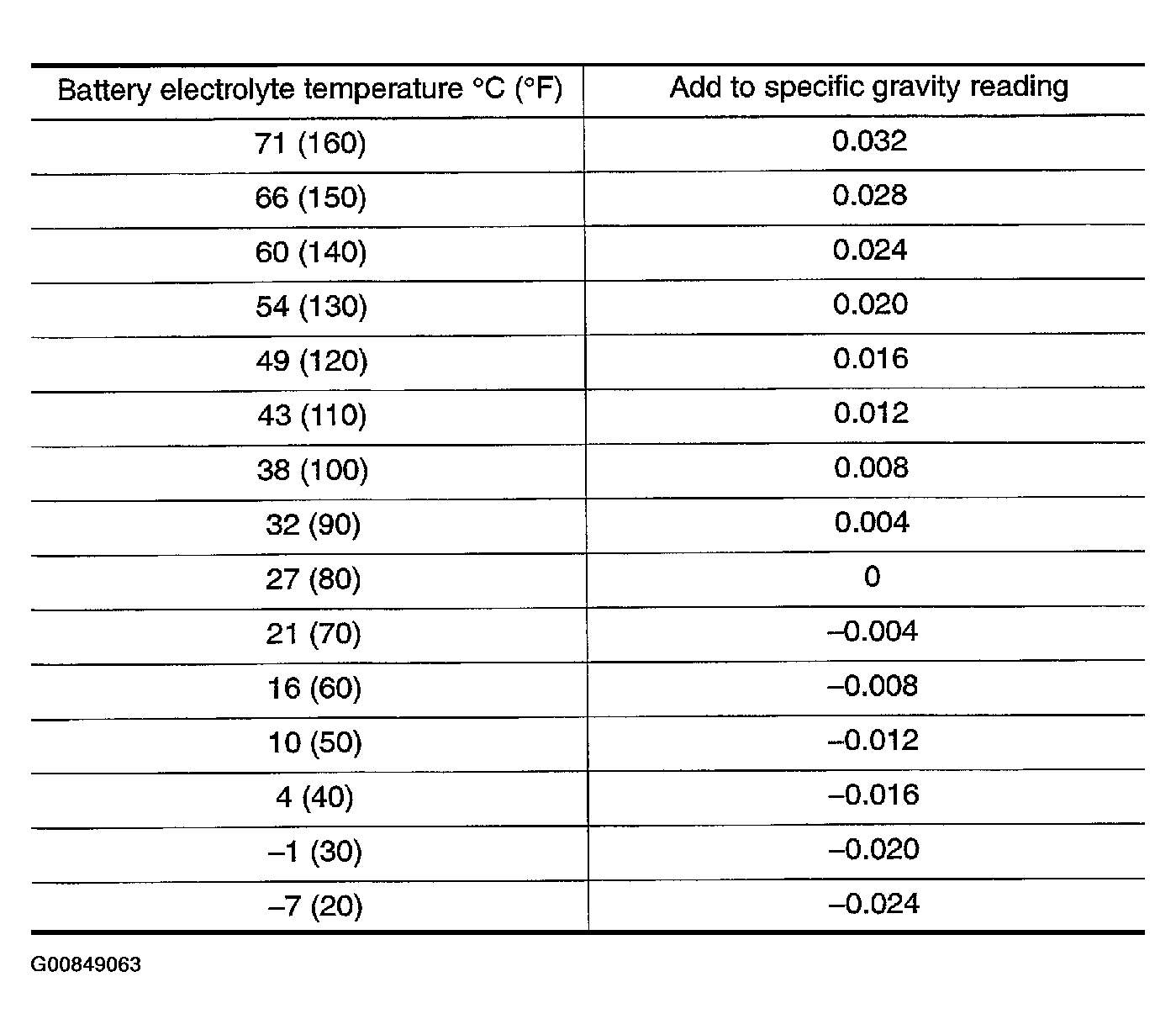

Fig 1: Specific Gravity Chart (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

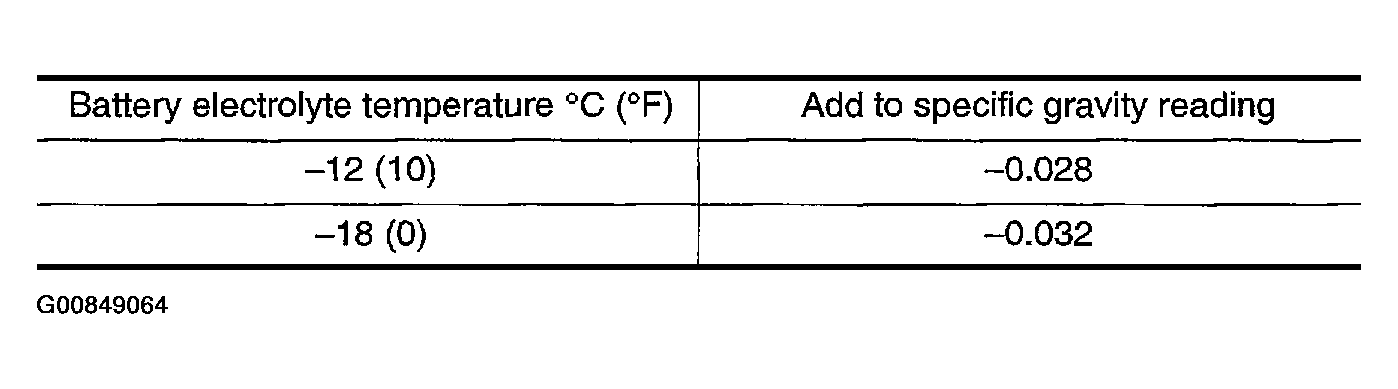

Fig 2: Specific Gravity Chart (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

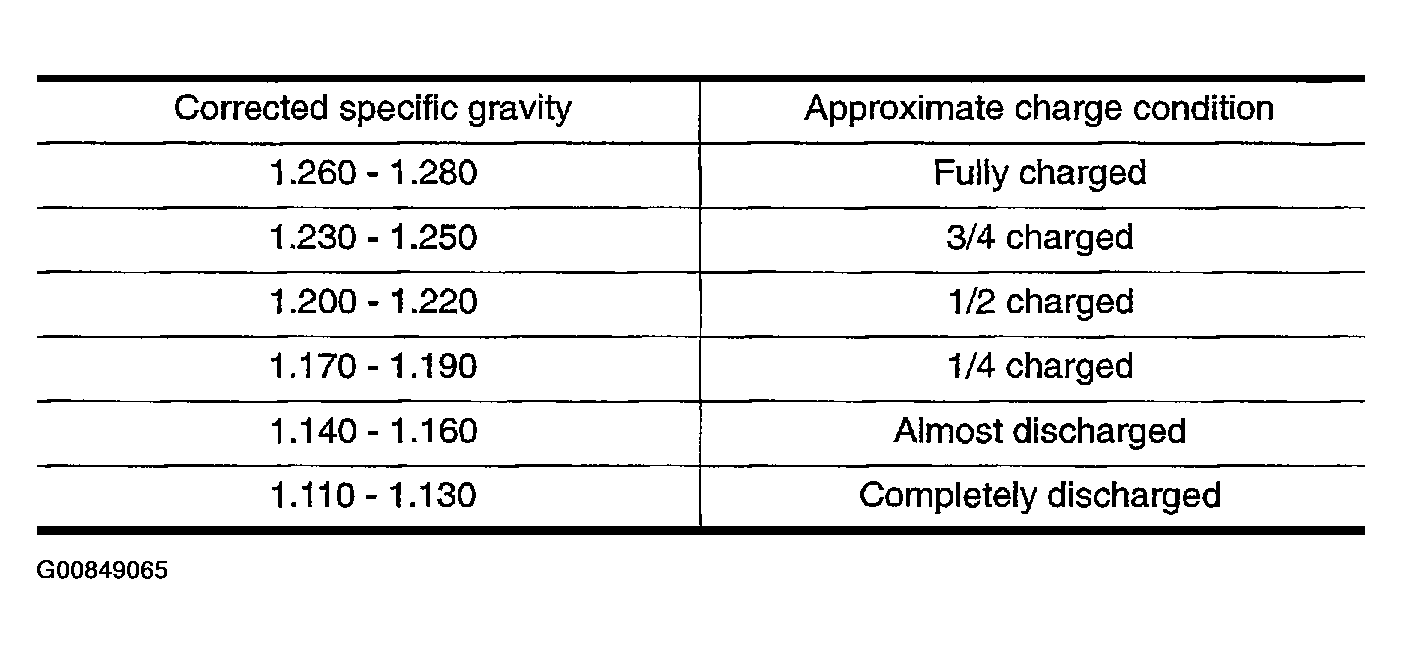

Fig 3: Specific Gravity Chart (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
