Wiring Diagram -A/C-

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

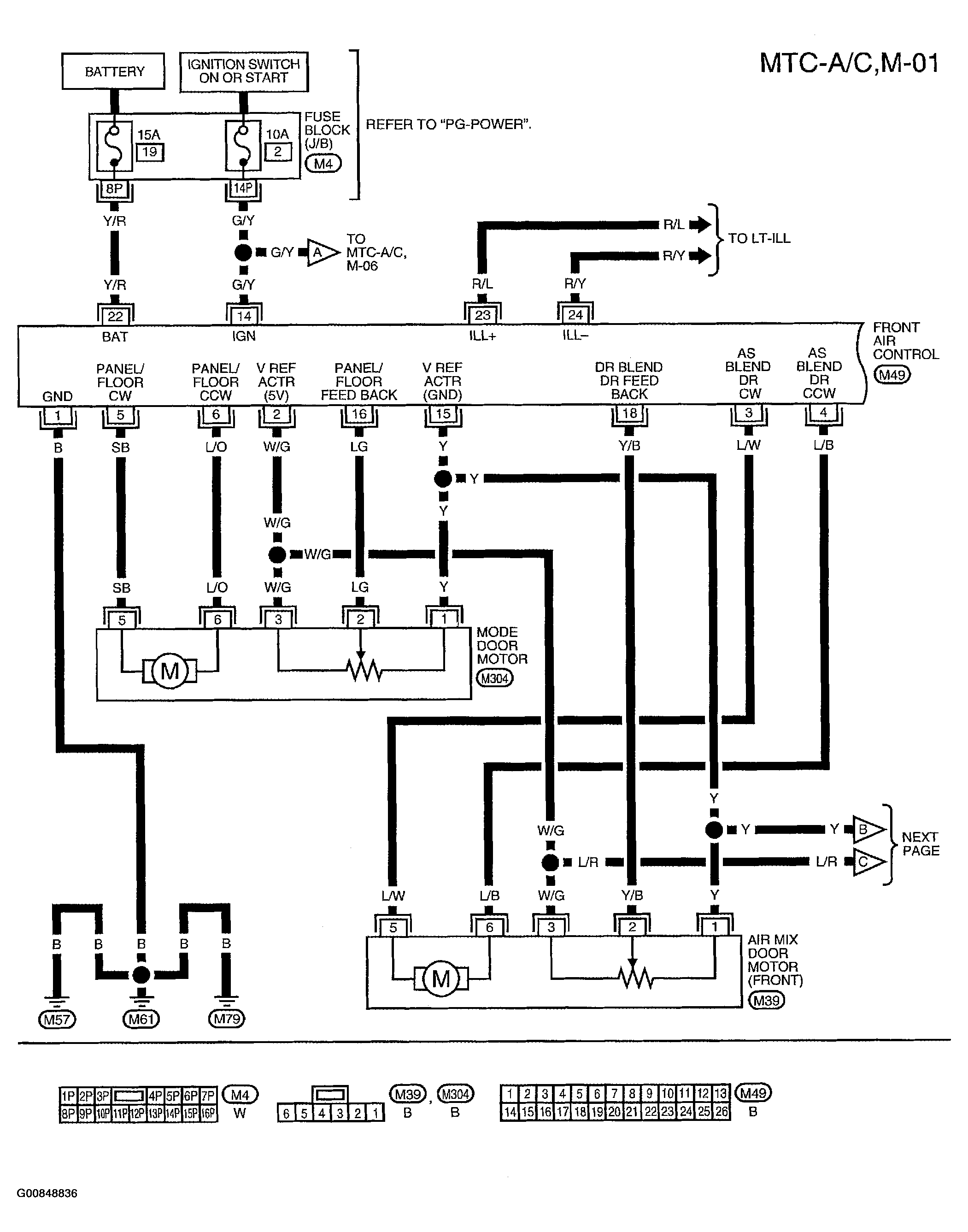

Fig 1: Wiring Diagram - MTC-A/C, M-01

Courtesy of NISSAN MOTOR CO., U.S.A.

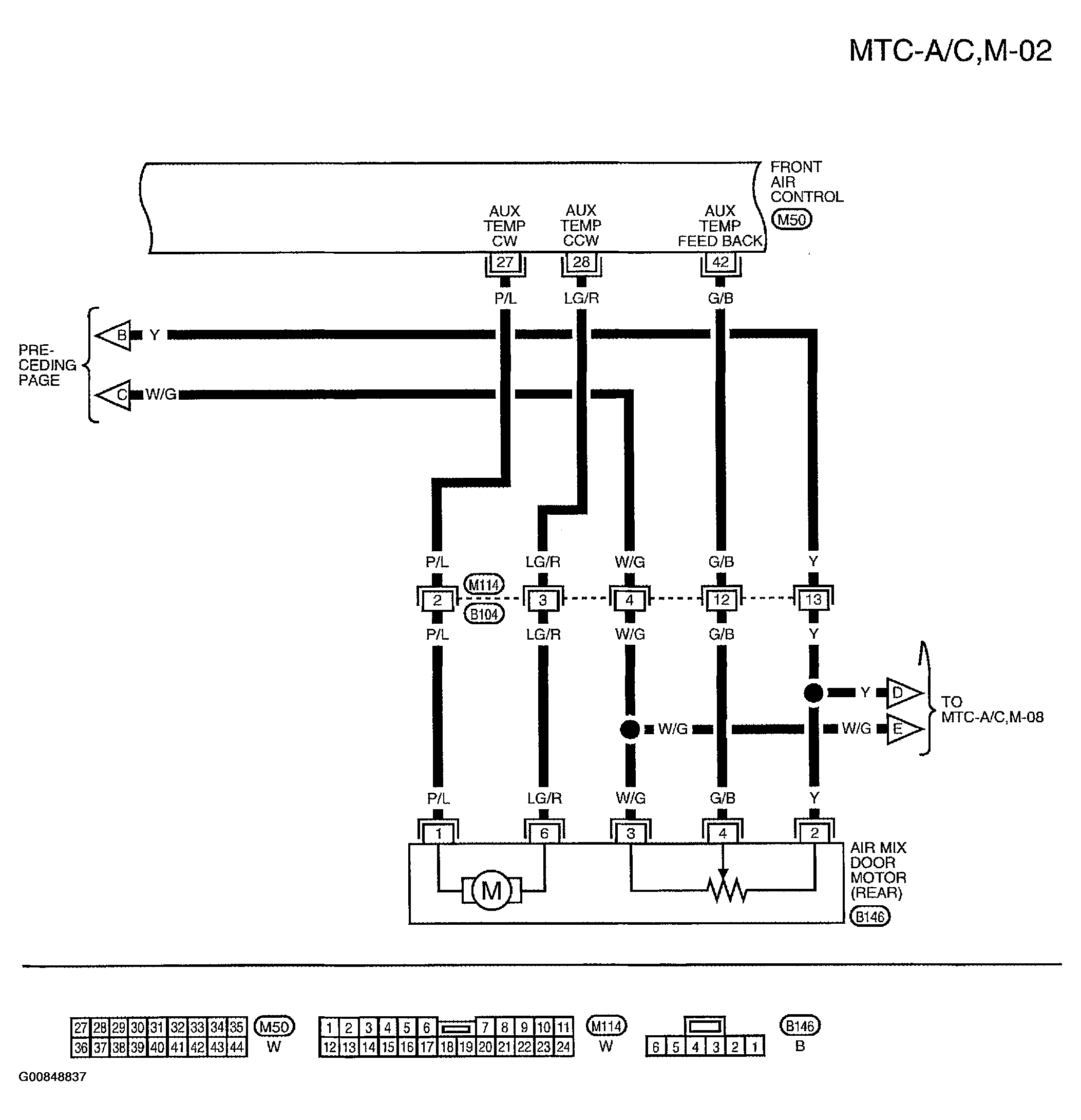

Fig 2: Wiring Diagram - MTC-A/C, M-02

Courtesy of NISSAN MOTOR CO., U.S.A.

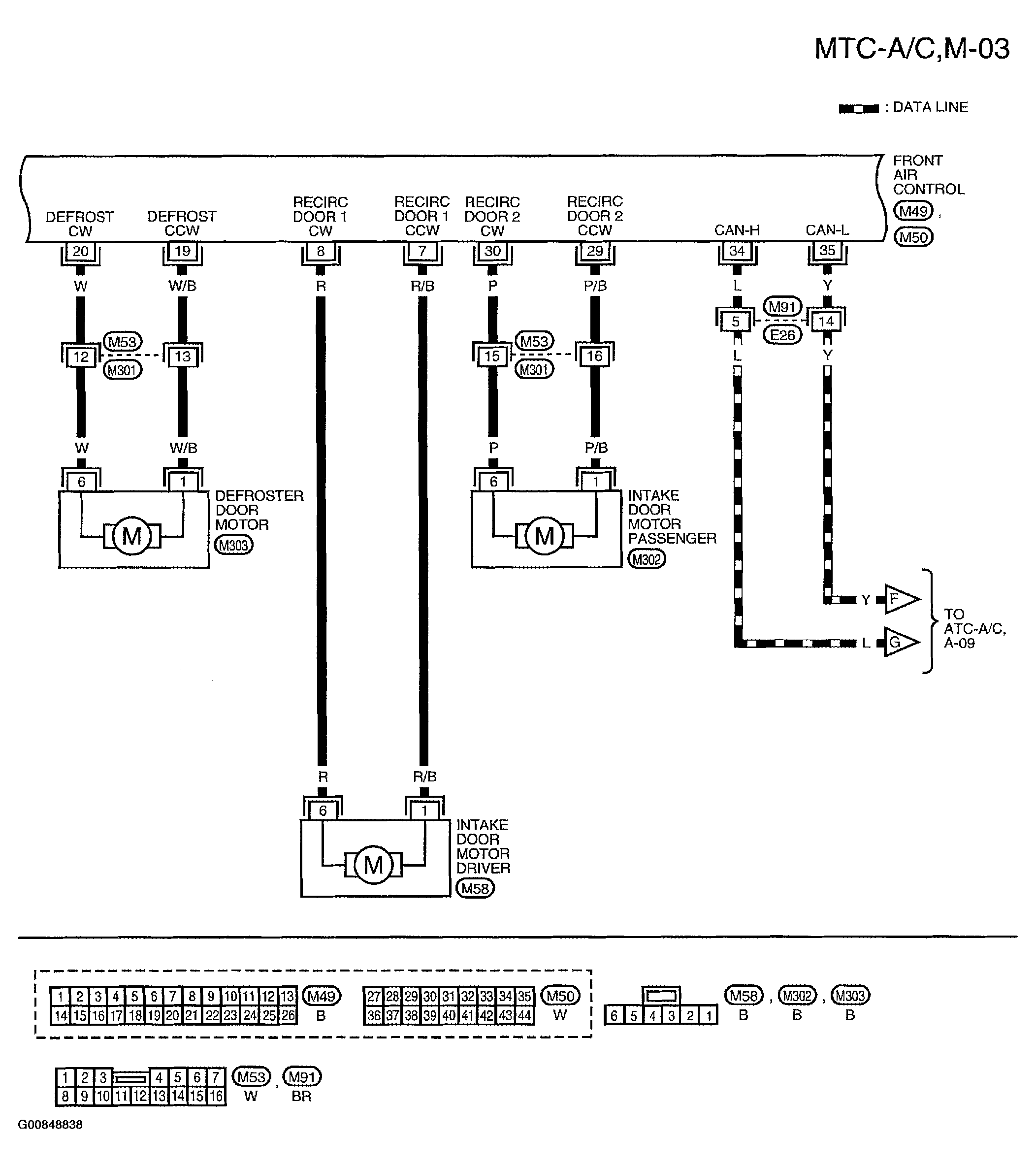

Fig 3: Wiring Diagram - MTC-A/C, M-03

Courtesy of NISSAN MOTOR CO., U.S.A.

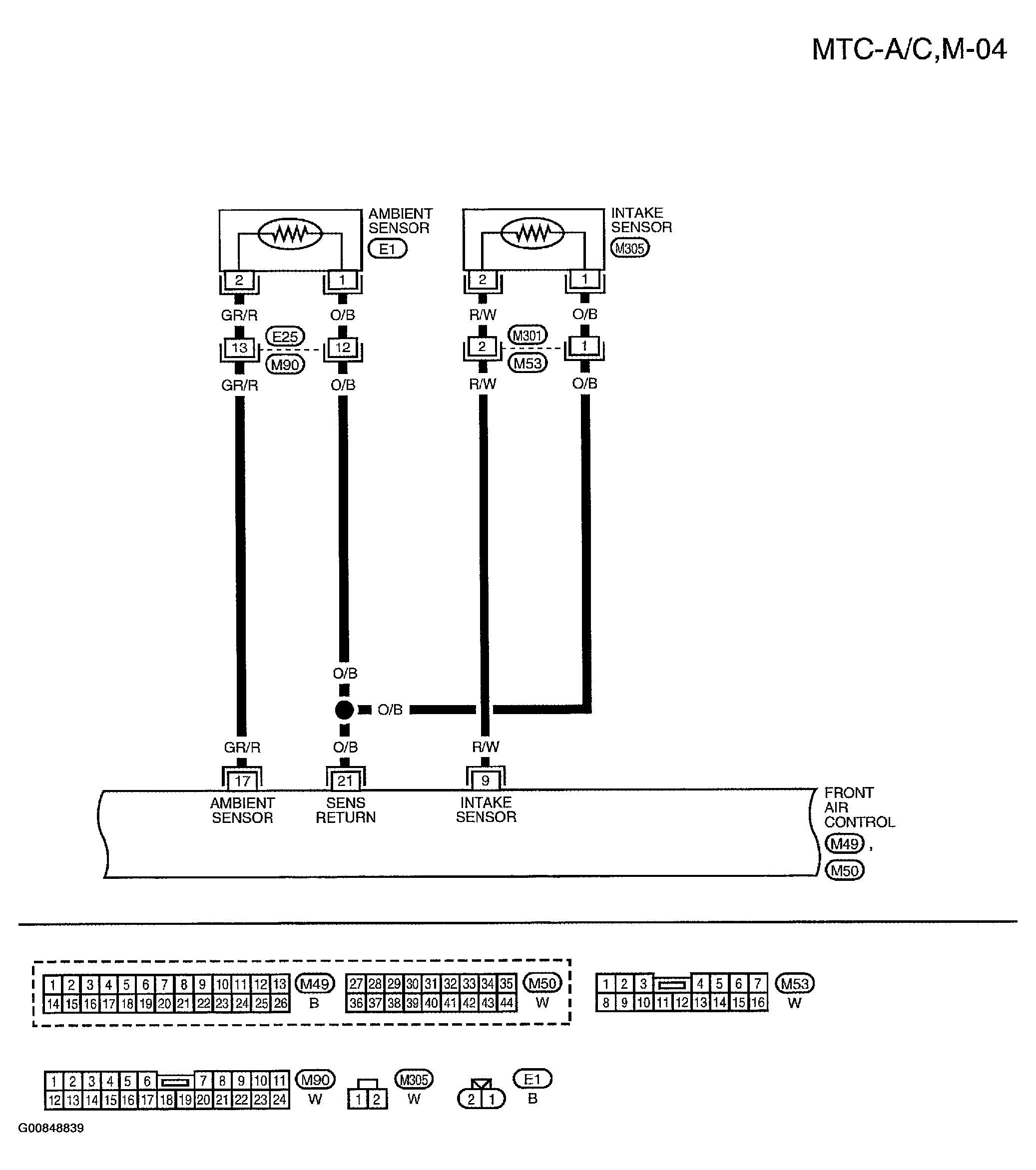

Fig 4: Wiring Diagram - MTC-A/C, M-04

Courtesy of NISSAN MOTOR CO., U.S.A.

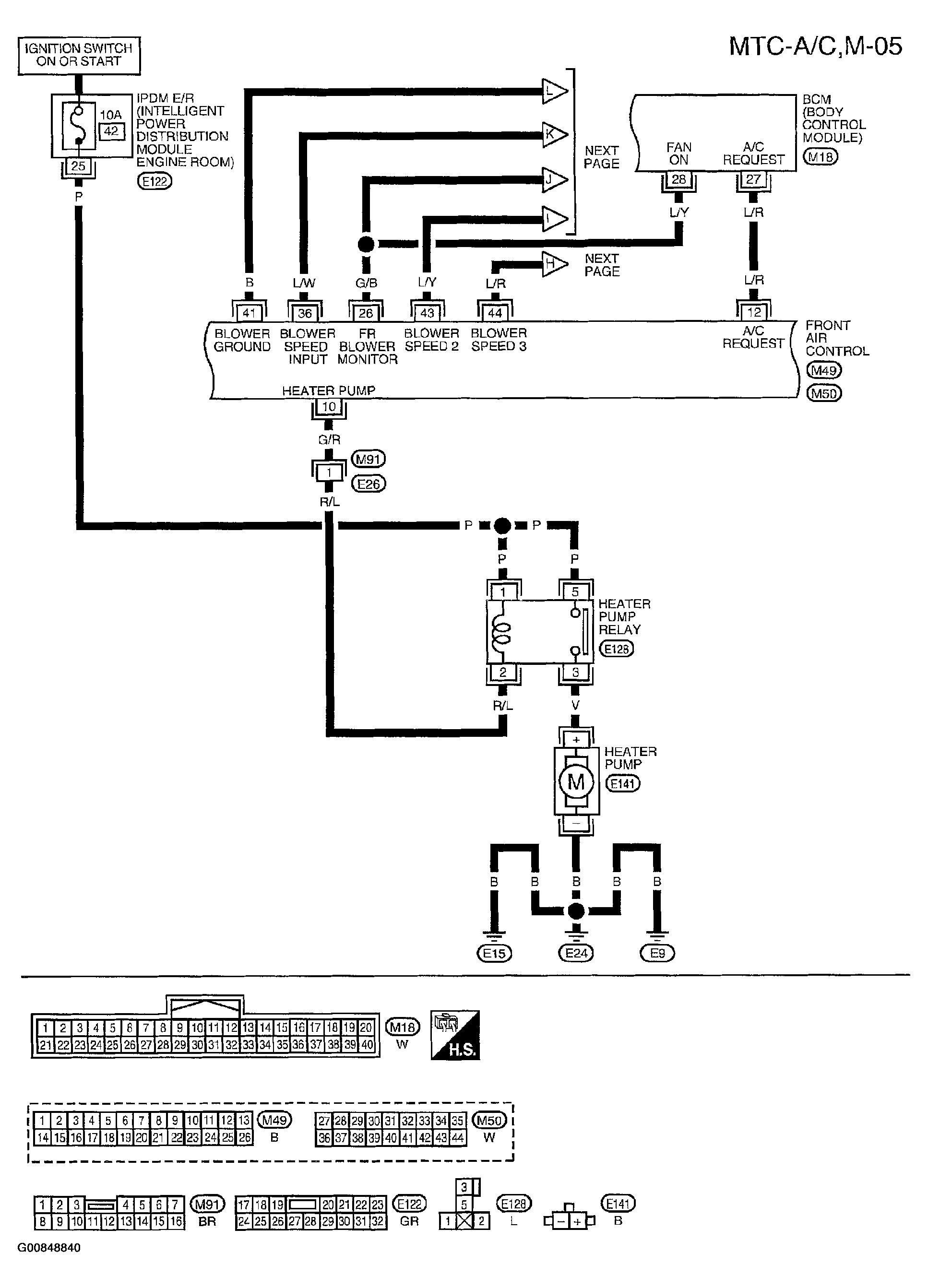

Fig 5: Wiring Diagram - MTC-A/C, M-05

Courtesy of NISSAN MOTOR CO., U.S.A.

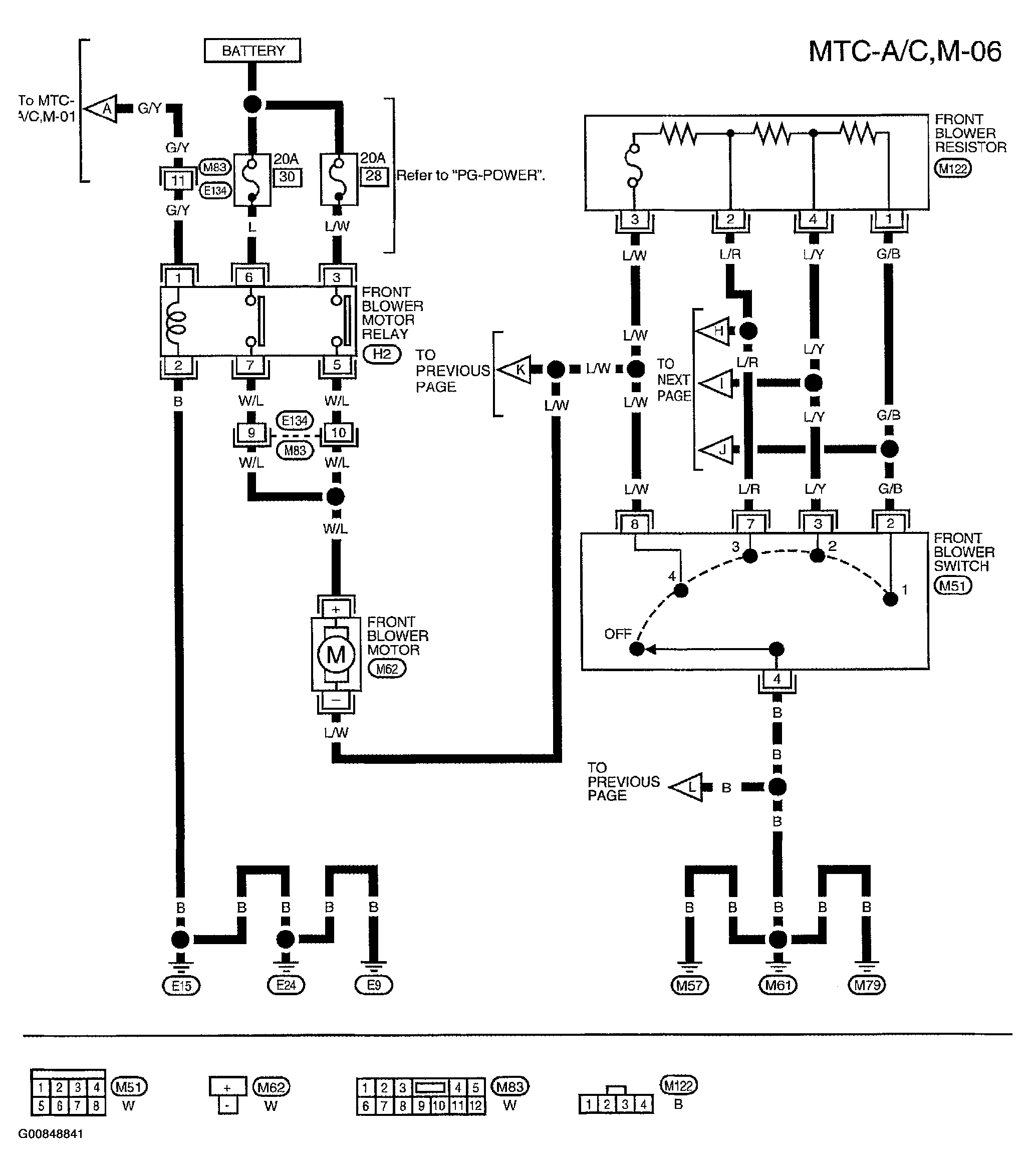

Fig 6: Wiring Diagram - MTC-A/C, M-06

Courtesy of NISSAN MOTOR CO., U.S.A.

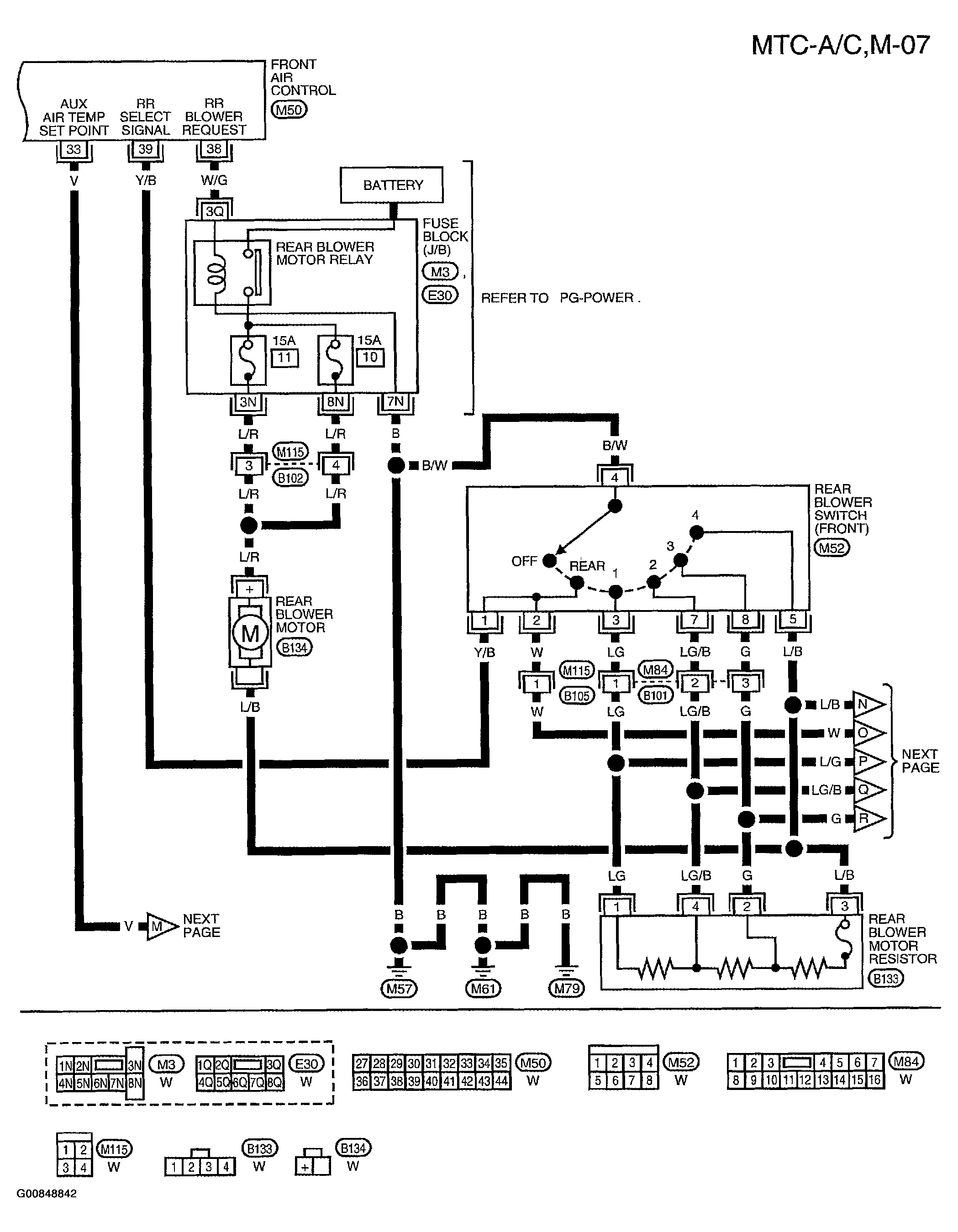

Fig 7: Wiring Diagram - MTC-A/C, M-07

Courtesy of NISSAN MOTOR CO., U.S.A.

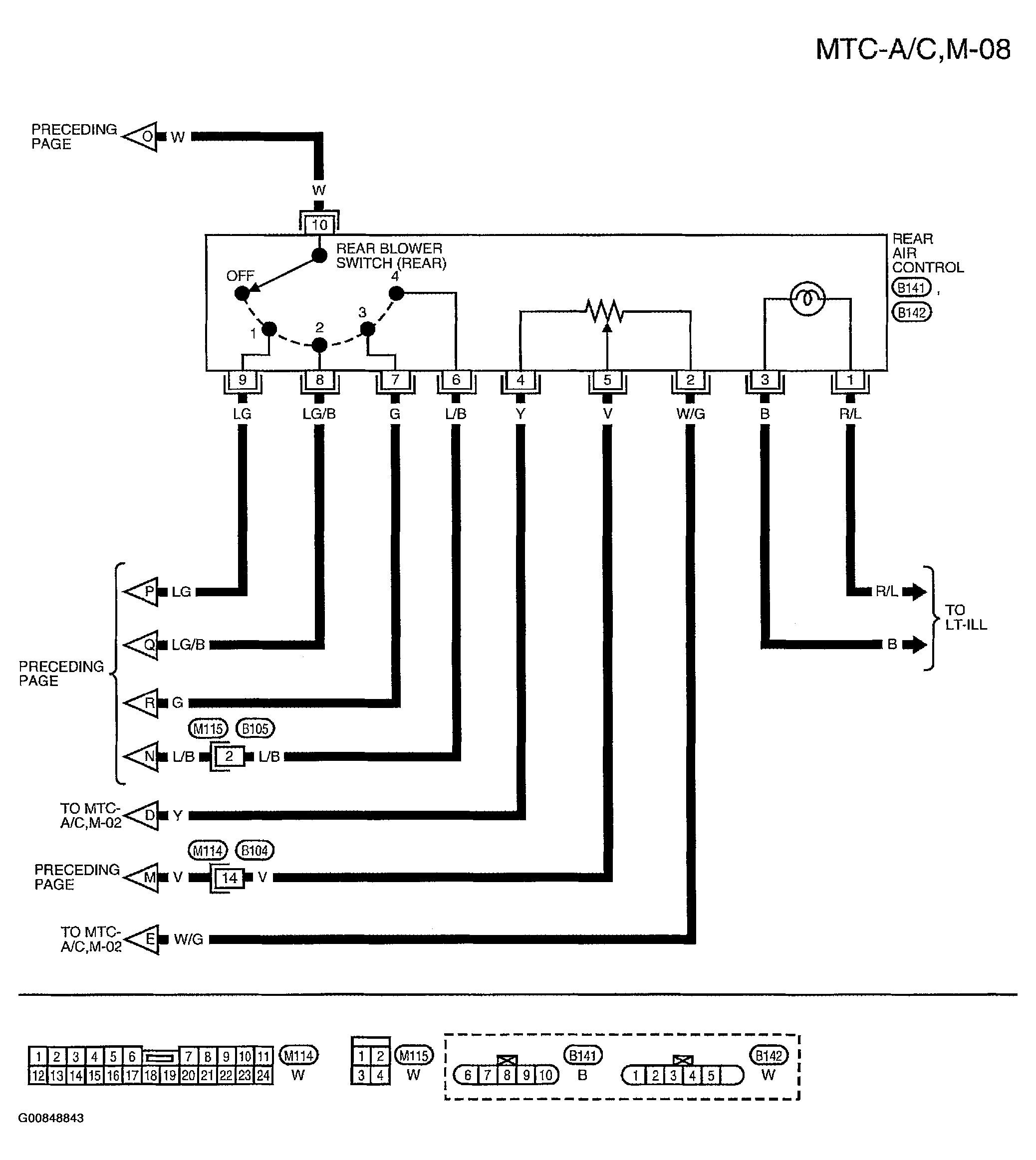

Fig 8: Wiring Diagram - MTC-A/C, M-08

Courtesy of NISSAN MOTOR CO., U.S.A.

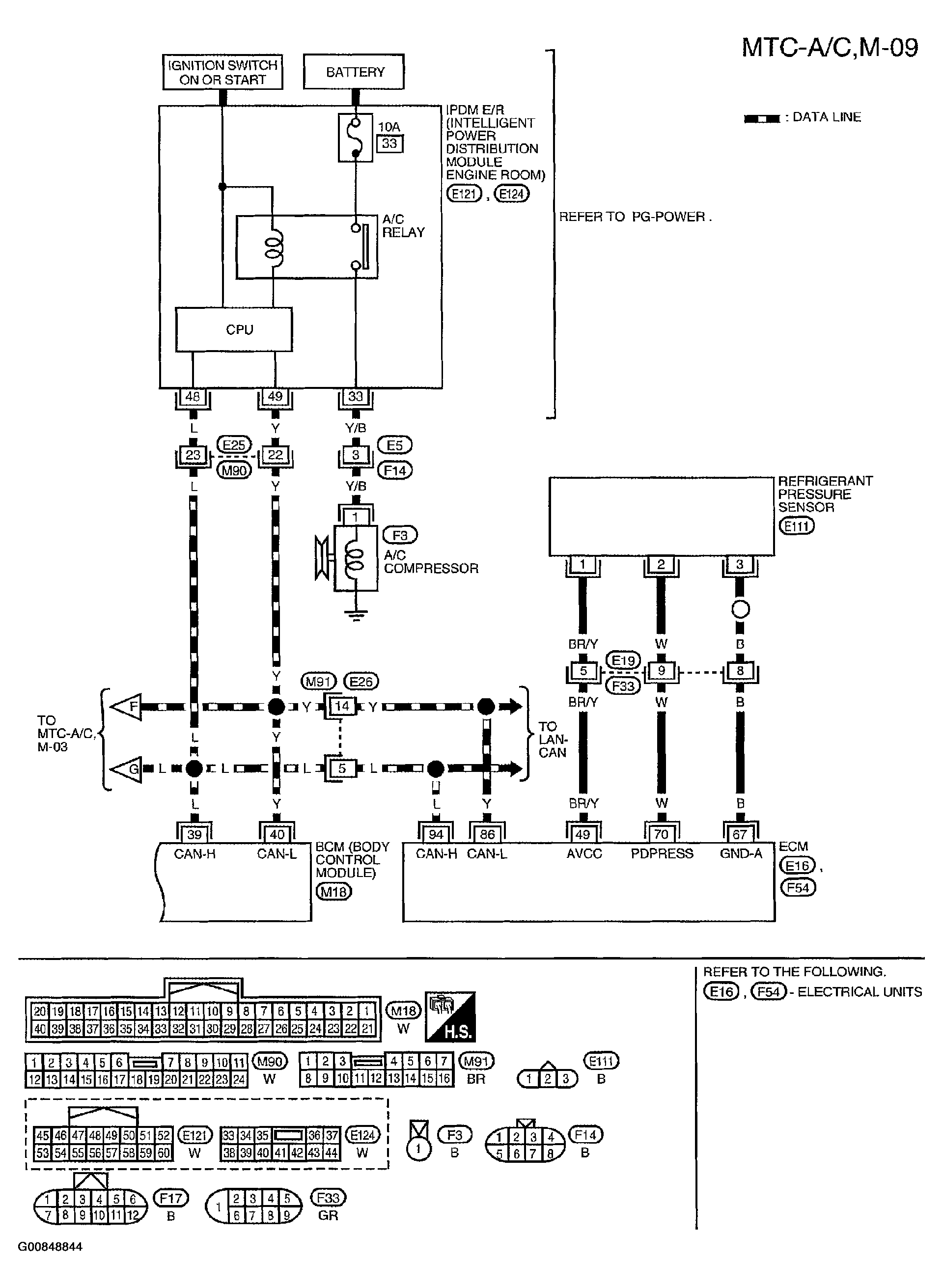

Fig 9: Wiring Diagram - MTC-A/C, M-09

Courtesy of NISSAN MOTOR CO., U.S.A.
