Rear Blower Motor Relay

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check circuit continuity between terminals by supplying 12 volts and ground to coil side terminals of relays.

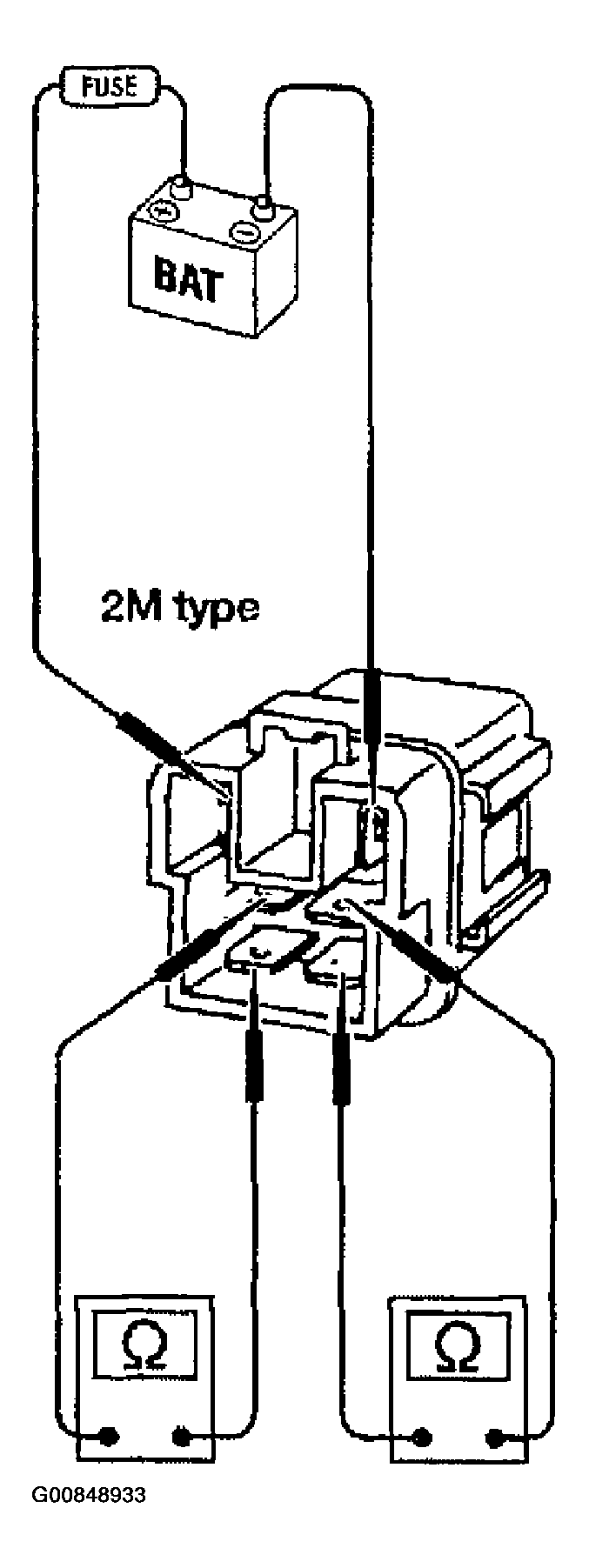

Fig 1: Checking Circuit Continuity Between Rear Blower Motor Relay Terminals
G00848933Courtesy of NISSAN MOTOR CO., U.S.A.
