Potentio Temperature Control (PTC)

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

The PTC is built into the front air control. It can be set from cold to hot or any intermediate position by rotating the temperature dial.

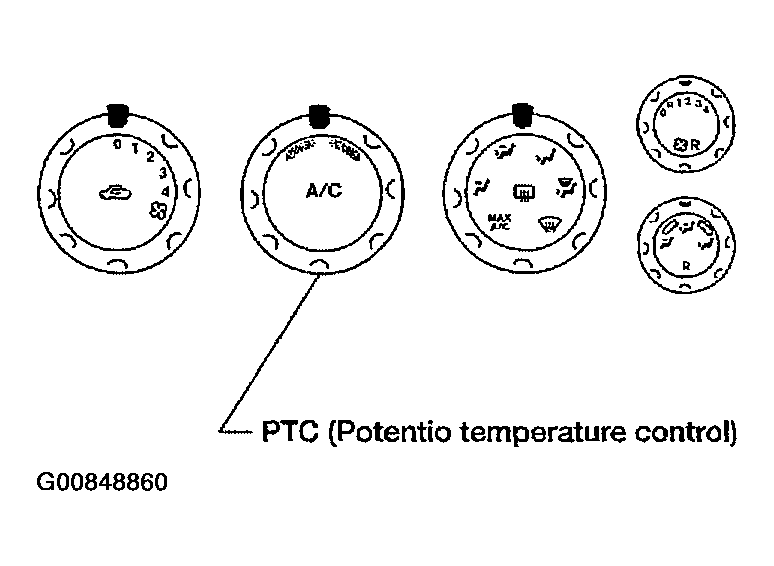

Fig 1: Identifying Potentio Temperature Control Switch
G00848860Courtesy of NISSAN MOTOR CO., U.S.A.
