Section 1081 (Manual HVAC System)
>>
Trouble Diagnosis
>>
Insufficient Cooling
>>
Trouble Diagnoses For Unusual Pressure
>>
Low-pressure Side Sometimes Becomes Negative
Low-pressure Side Sometimes Becomes Negative
WARNING:
This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

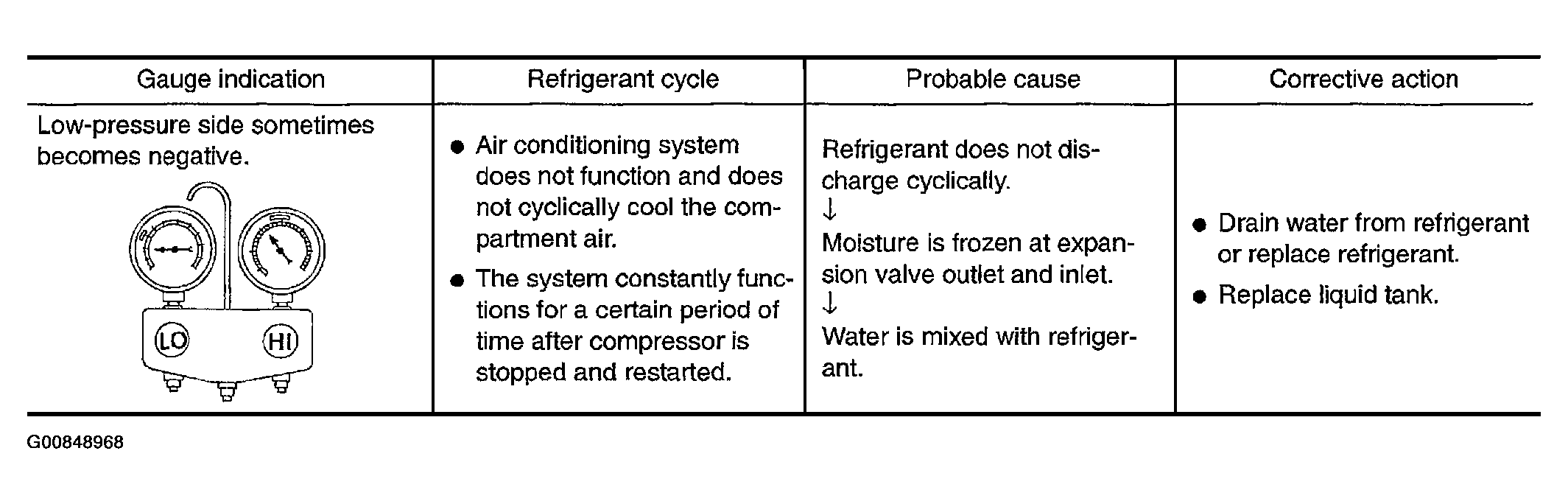

Fig 1: Trouble Symptom Chart-Low-Pressure Side Sometimes Becomes Negative
Courtesy of NISSAN MOTOR CO., U.S.A.
