Both High- and Low-pressure Sides are Too Low

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

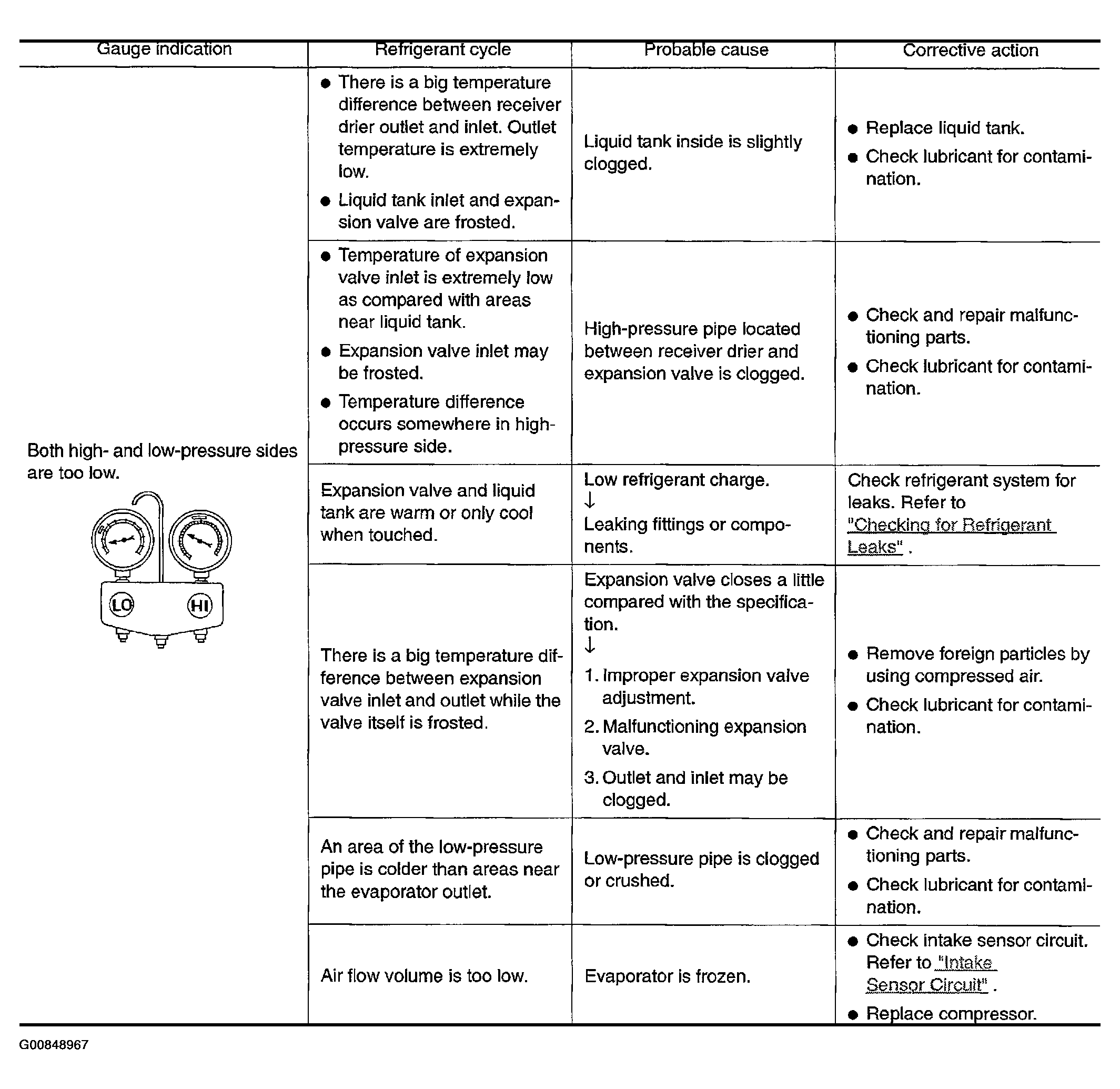

Fig 1: Trouble Symptom Chart-Both High- And Low-Pressure Sides Are Too Low
G00848967Courtesy of NISSAN MOTOR CO., U.S.A.
