Test Reading

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Recirculating-to-discharge Air Temperature Table

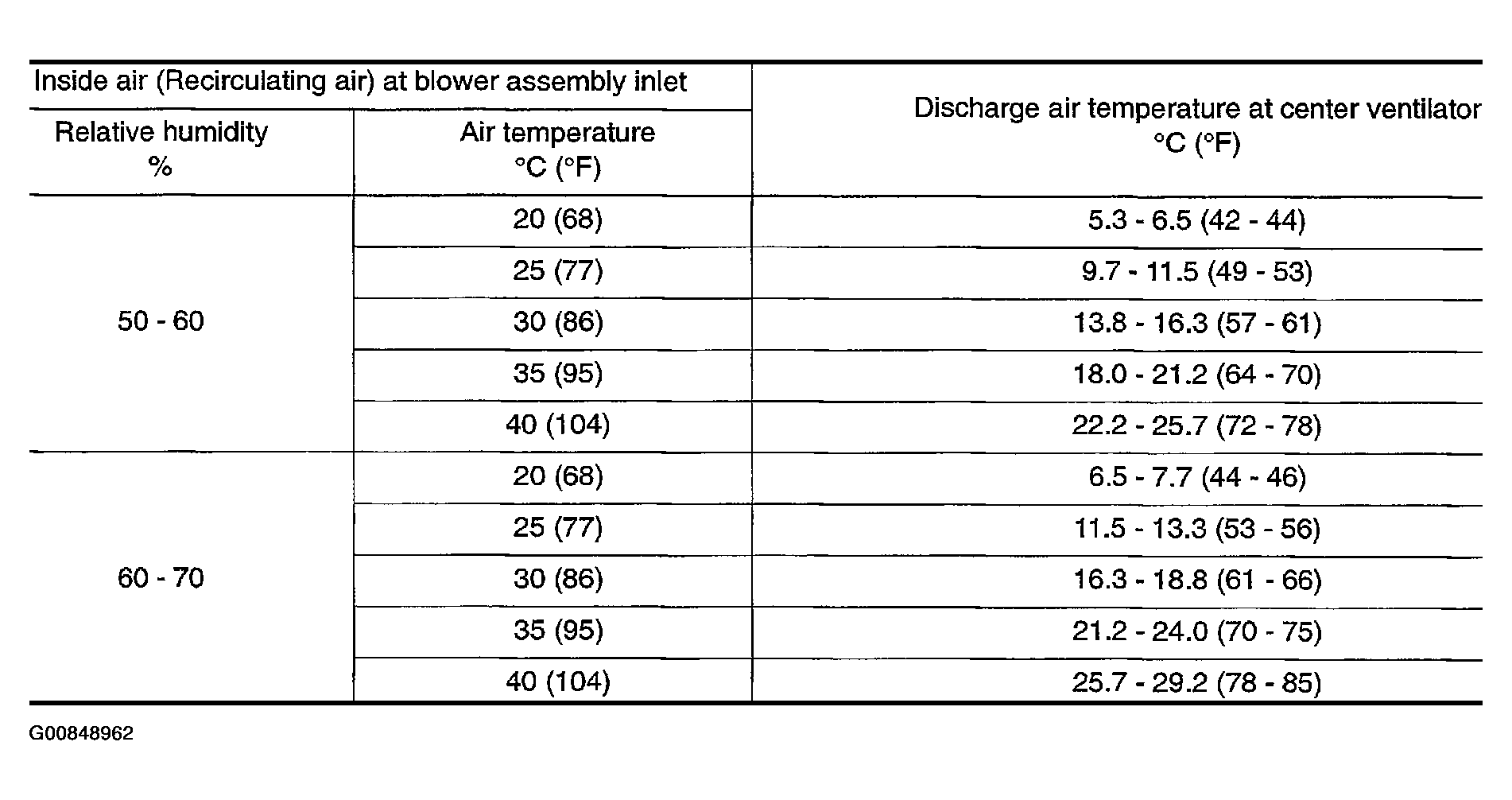

Fig 1: Air Conditioner Recirculating-To-Discharge Air Temperature Table

Courtesy of NISSAN MOTOR CO., U.S.A.

Ambient Air Temperature-to-operating Pressure Table

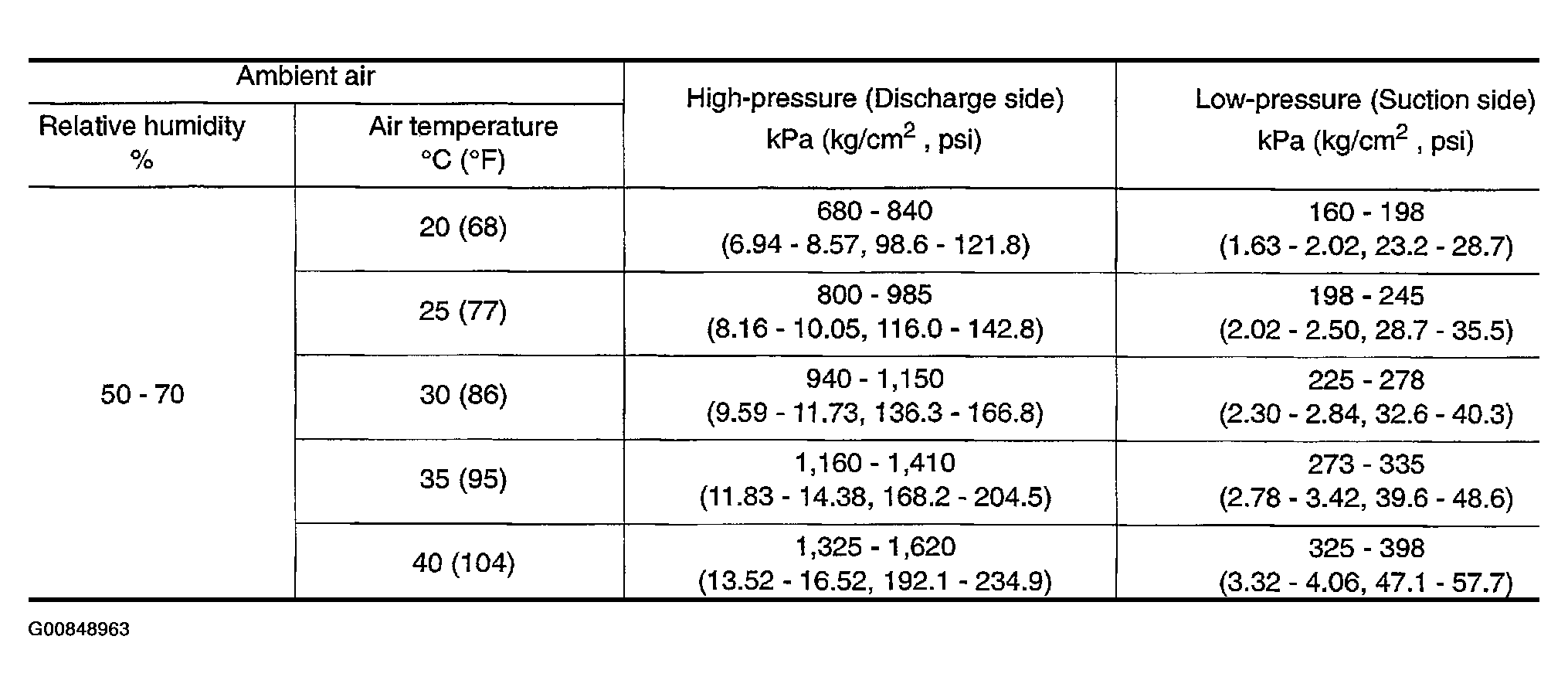

Fig 2: Air Conditioner Ambient Air Temperature-To-Operating Pressure Table

Courtesy of NISSAN MOTOR CO., U.S.A.
