Front Blower Switch

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals at each switch position.

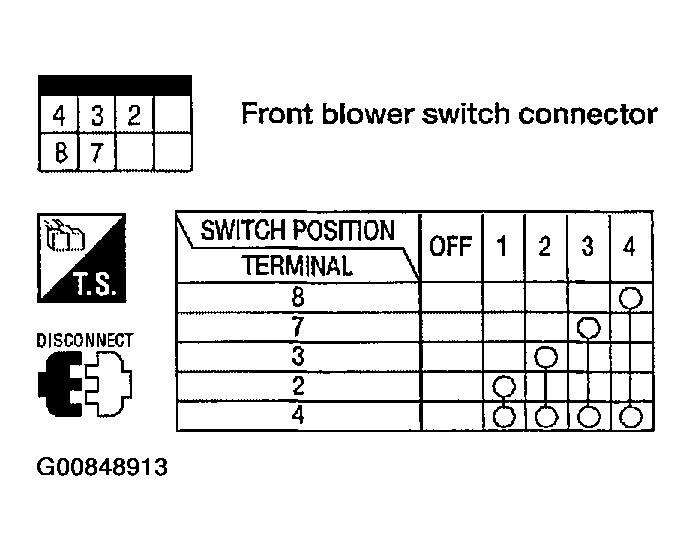

Fig 1: Checking Continuity Between Terminals At Each Switch Position
G00848913Courtesy of NISSAN MOTOR CO., U.S.A.
