Front Blower Motor Resistor

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals. There will be resistance, but there should not be an open or short between any two terminals.

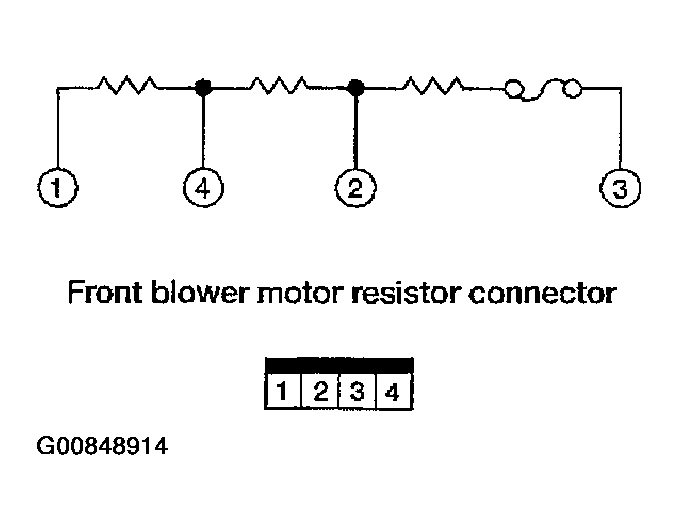

Fig 1: Checking Front Blower Motor Resistor Connector
G00848914Courtesy of NISSAN MOTOR CO., U.S.A.
