Operation Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

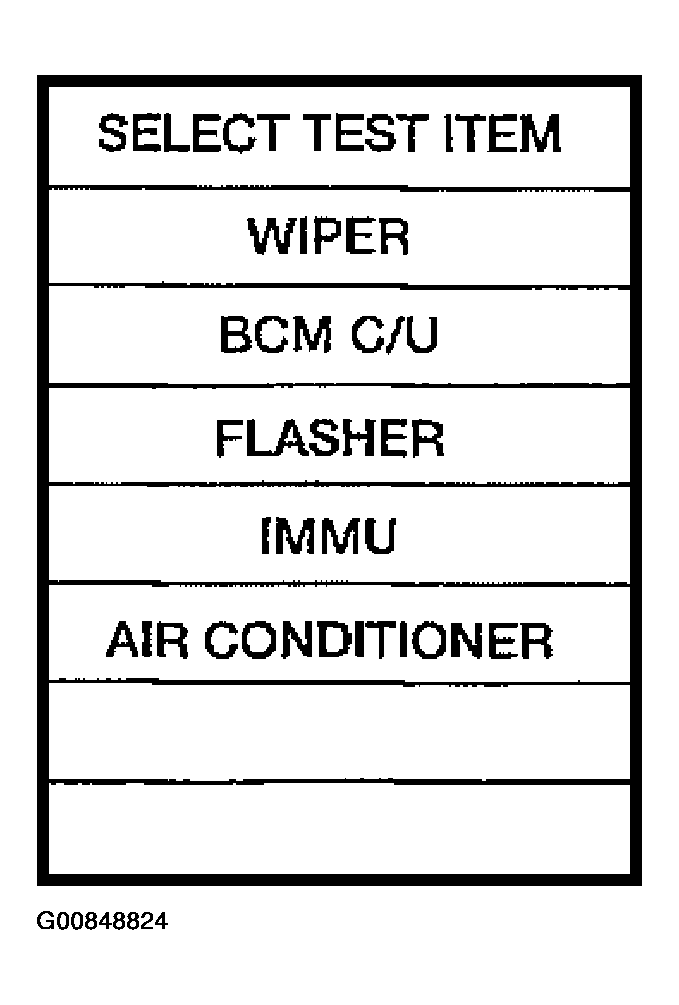

Touch "AIR CONDITIONER" on "SELECT TEST ITEM" screen.

Fig 1: CONSULT-II Display (SELECT TEST ITEM)
Courtesy of NISSAN MOTOR CO., U.S.A.

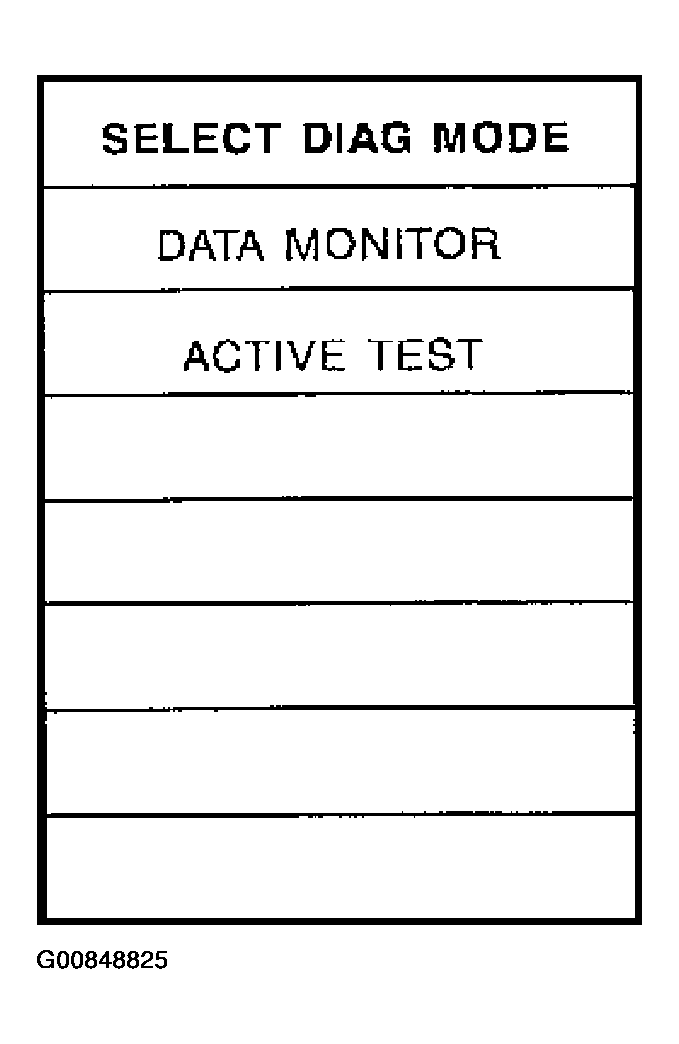

Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.

Fig 2: CONSULT-II Display (SELECT DIAG MODE)
Courtesy of NISSAN MOTOR CO., U.S.A.

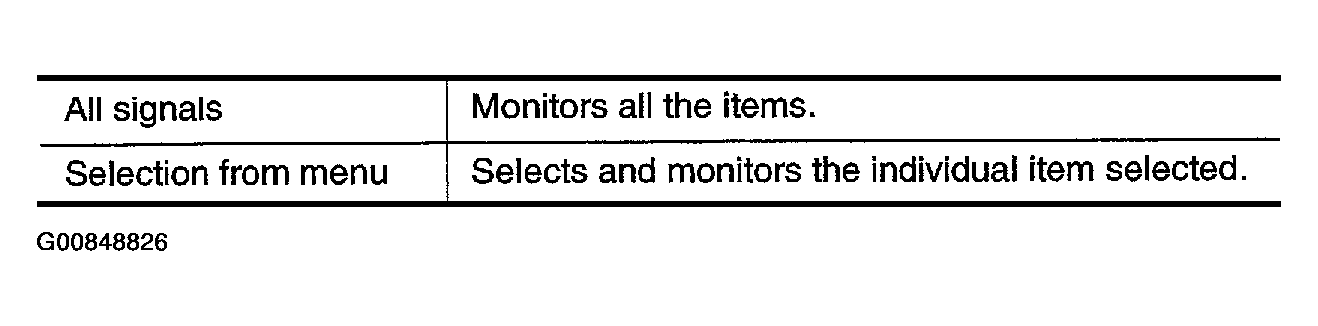

Touch either "ALL SIGNALS" or "SELECTION FROM MENU" on "DATA MONITOR" screen.

Fig 3: ALL SIGNALS & SELECTION FROM MENU Descriptions
Courtesy of NISSAN MOTOR CO., U.S.A.

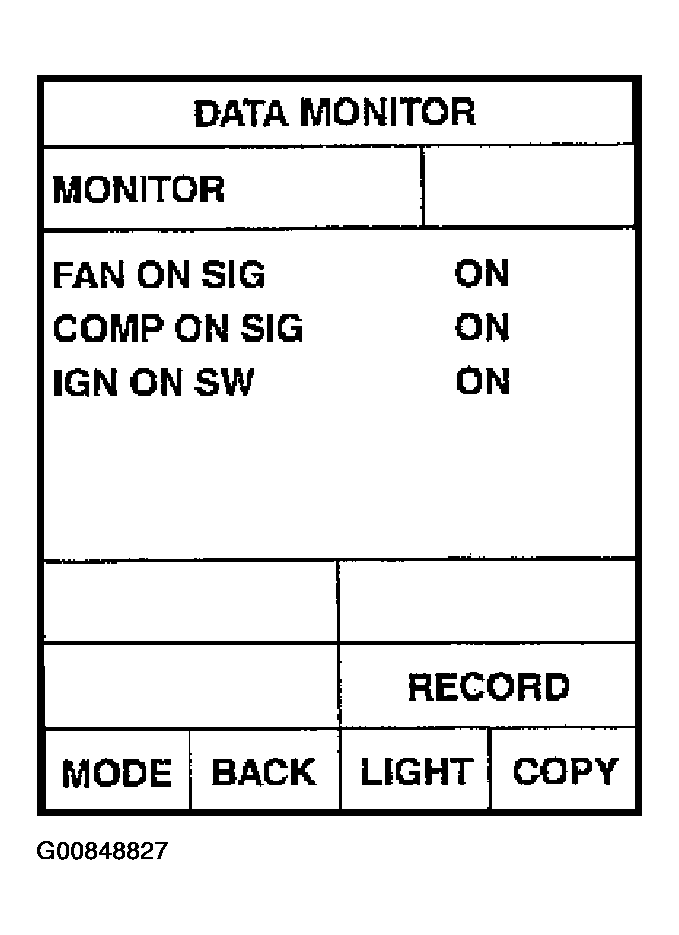

Fig 4: CONSULT-II Display (DATA MONITOR)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".
When "SELECTION FROM MENU" is selected, touch items to be monitored. When "ALL SIGNALS" is selected, all the items will be monitored.
Touch "RECORD" while monitoring, then the status of the monitored item can be recorded. To stop recording, touch "STOP".
