Removal and Installation for Condenser: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Discharge the refrigerant. Refer to "HFC-134A (R-134A) SERVICE PROCEDURE ".
Remove the radiator. Refer to "RADIATOR ".
CAUTION: Be careful not to damage the core surface of the condenser and the radiator.
Disconnect the high-pressure flexible hose and the high-pressure pipe from the condenser.
CAUTION: Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.
Disconnect the refrigerant pressure sensor connector.

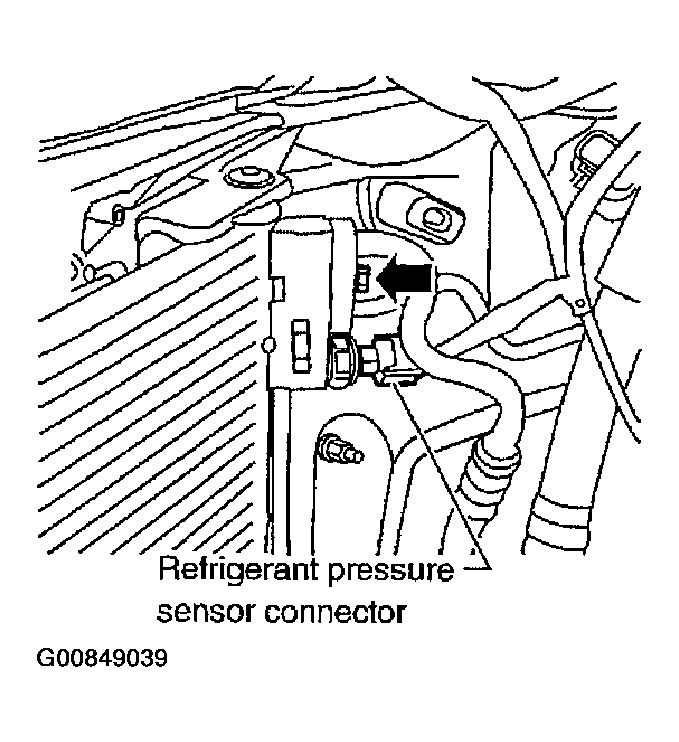

Fig 1: Disconnecting Refrigerant Pressure Sensor Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Carefully release retaining clips located on top driver side of condenser and rotate the condenser out of its mounts as shown.

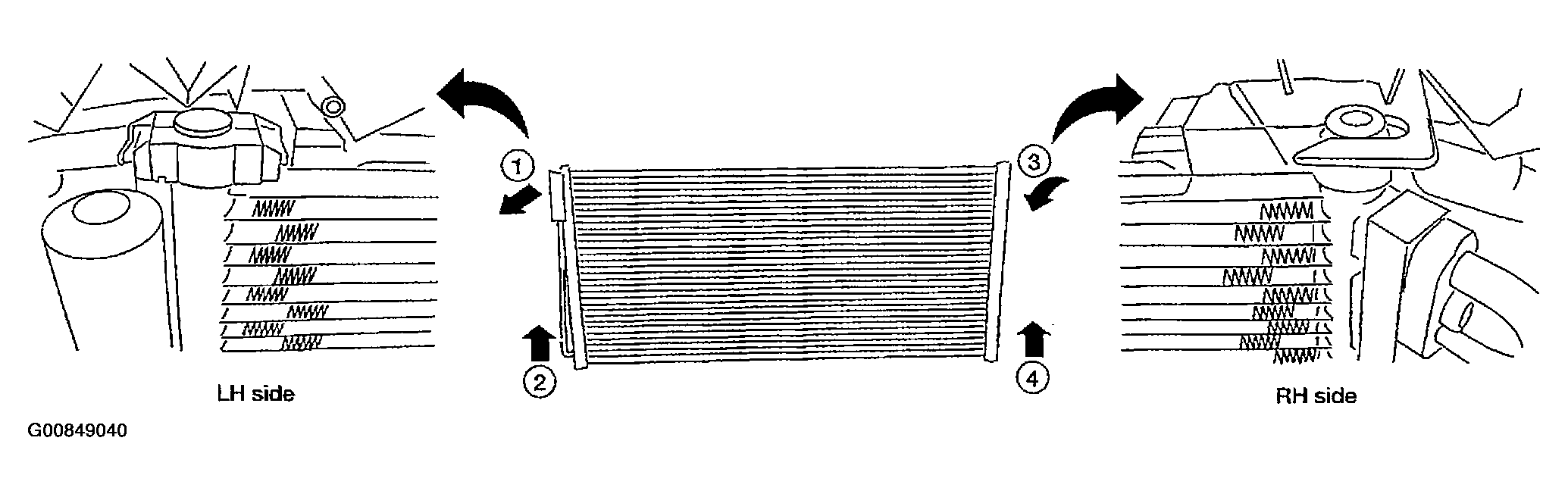

Fig 2: Removing Retaining Clips
Courtesy of NISSAN MOTOR CO., U.S.A.
