Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument lower panel RH and glove box. Refer to "INSTRUMENT LOWER PANEL RH AND GLOVE BOX ".
  2. Remove the center console trim panel. Refer to "REMOVAL AND INSTALLATION ".
  3. Disconnect the mode door motor electrical connector.
  4. Remove the three screws and remove the mode door motor.

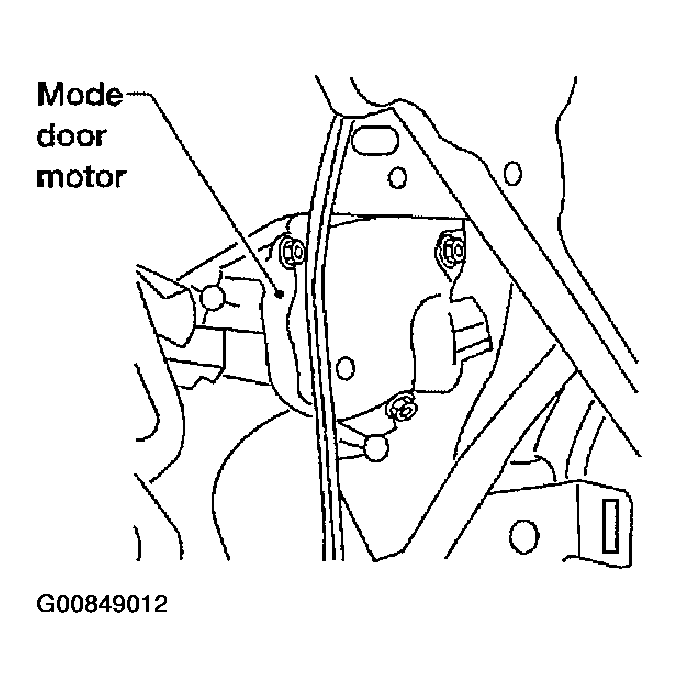

    Fig 1: Removing Mode Door Motor
    G00849012Courtesy of NISSAN MOTOR CO., U.S.A.
