Lubricant Adjusting Procedure for Components Replacement Except Compressor

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

After replacing any of the following major components, add the correct amount of lubricant to the system.

Amount of lubricant to be add

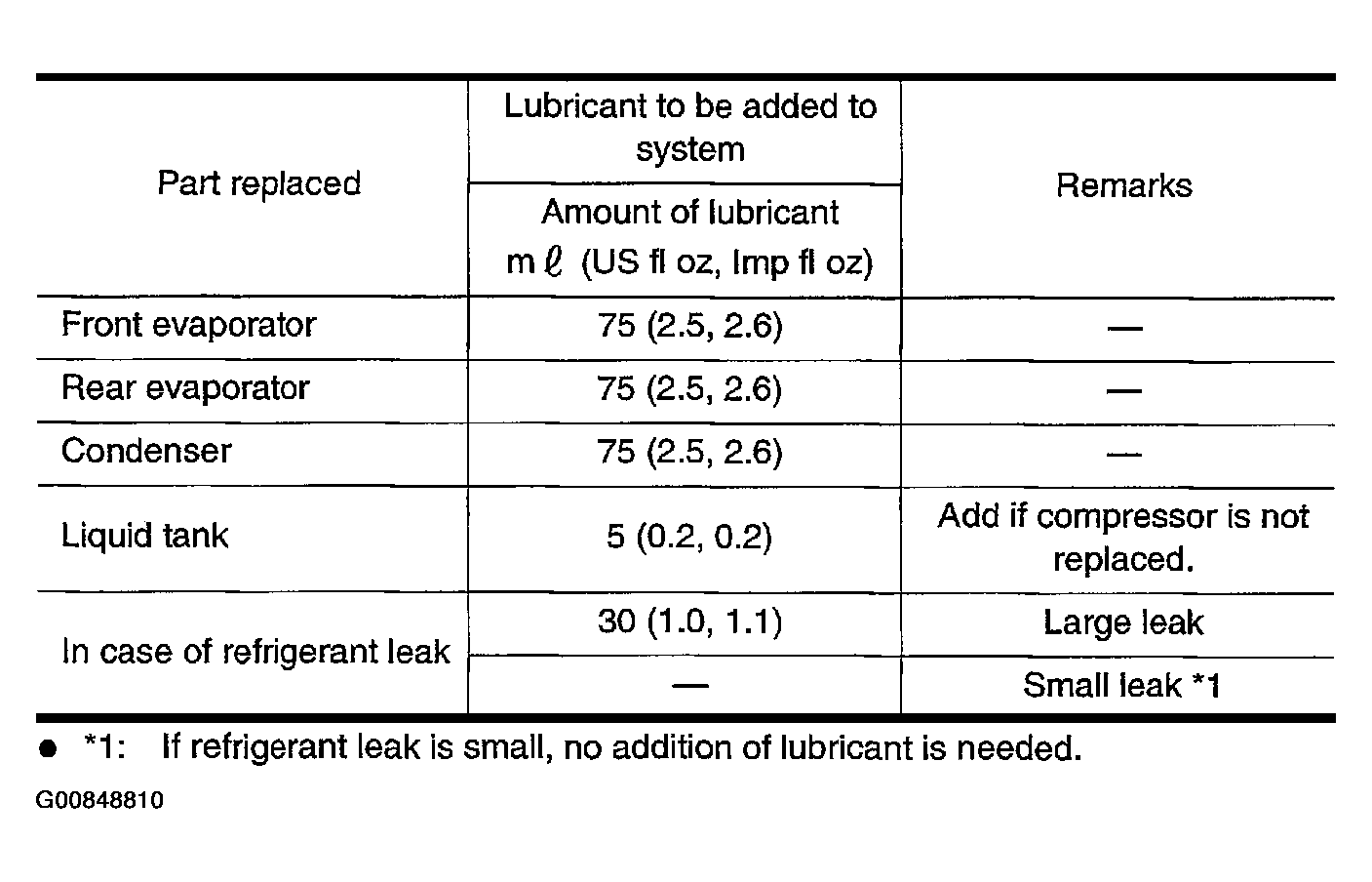

Fig 1: Lubricant Specification Chart
G00848810Courtesy of NISSAN MOTOR CO., U.S.A.
