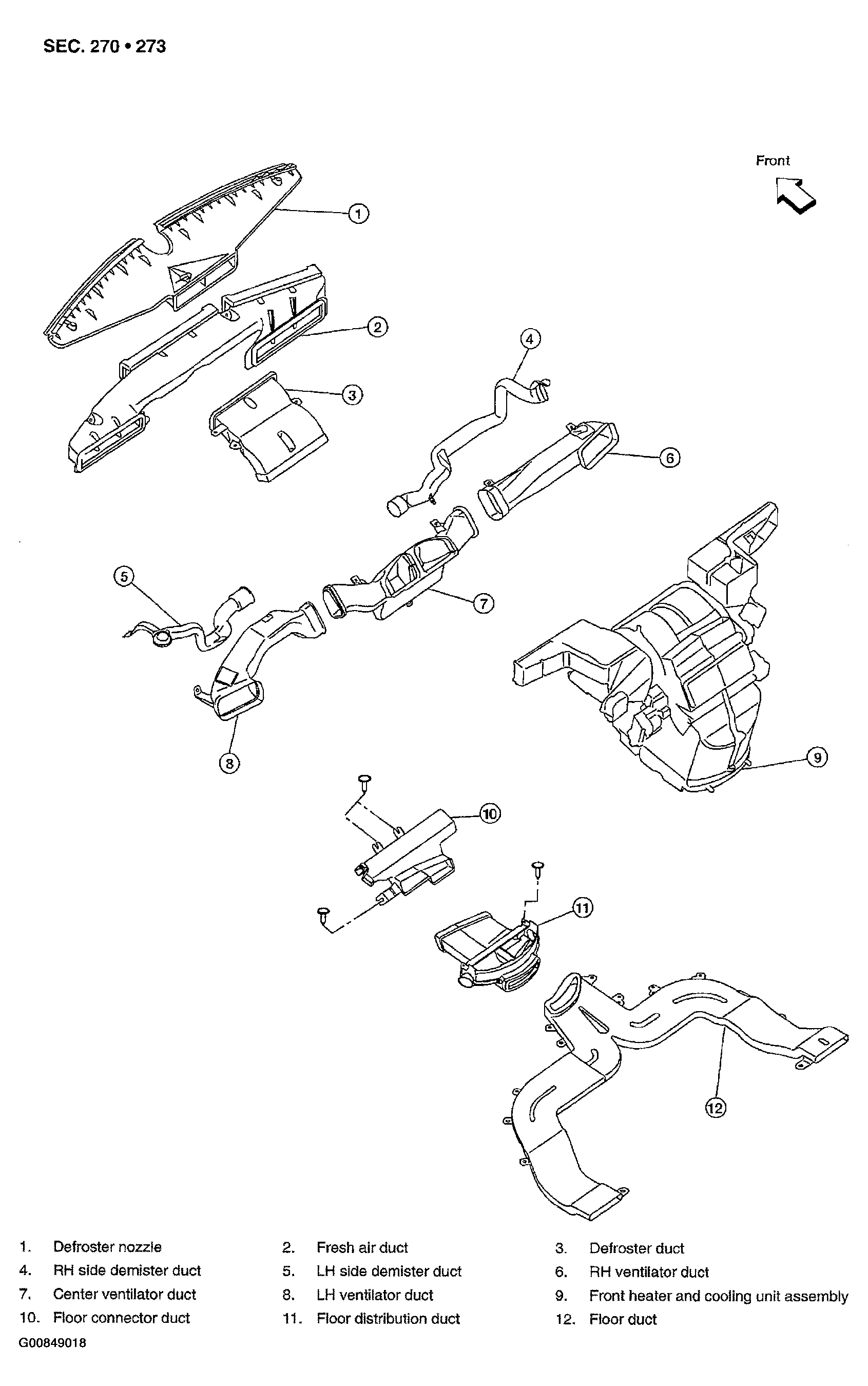

Fig 1: Identifying Ducts - Front Heater And Cooling Unit Assembly Components
Courtesy of NISSAN MOTOR CO., U.S.A.

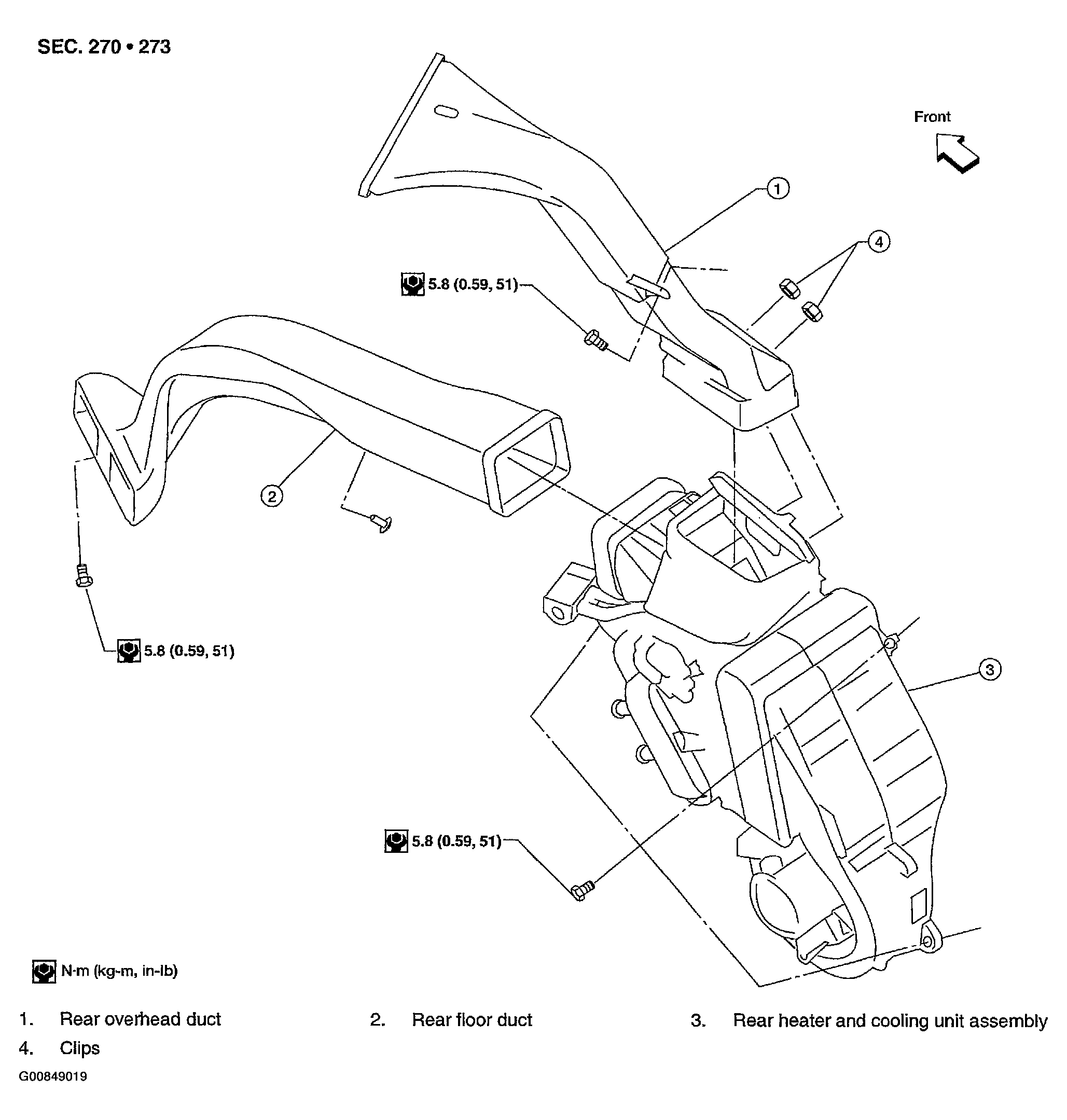

Fig 2: Identifying Ducts - Rear Heater and Cooling Unit Assembly Components
