Rear Blower Motor

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear RH interior trim panel. Refer to "RIGHT SIDE AND REAR "
  2. Disconnect the blower motor electrical connector.
  3. Remove the three screws and remove the blower motor.
  4. Installation is in the reverse order of removal.

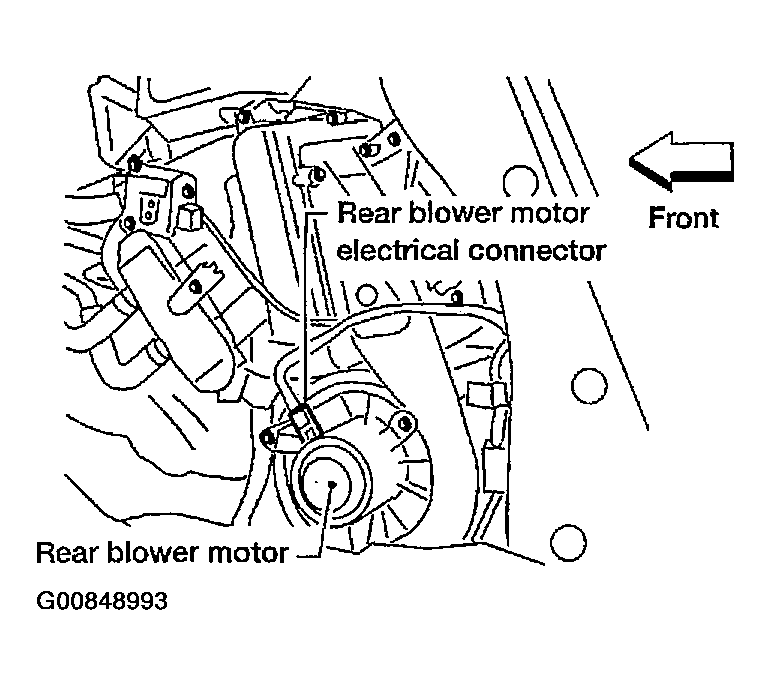

    Fig 1: Disconnecting Blower Motor Electrical Connector
    G00848993Courtesy of NISSAN MOTOR CO., U.S.A.
