Rear Blower Switch (Front)

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals at each switch position.

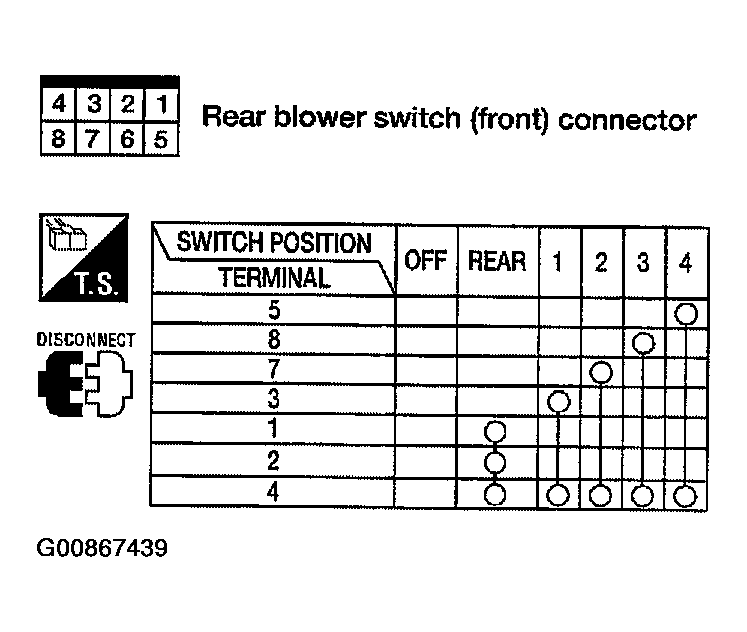

Fig 1: Identifying Rear Blower Switch (Front)
G00867439Courtesy of NISSAN MOTOR CO., U.S.A.
