Rear Blower Motor Relay

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check circuit continuity between terminals by supplying 12 volts and ground to coil side terminals of relays.

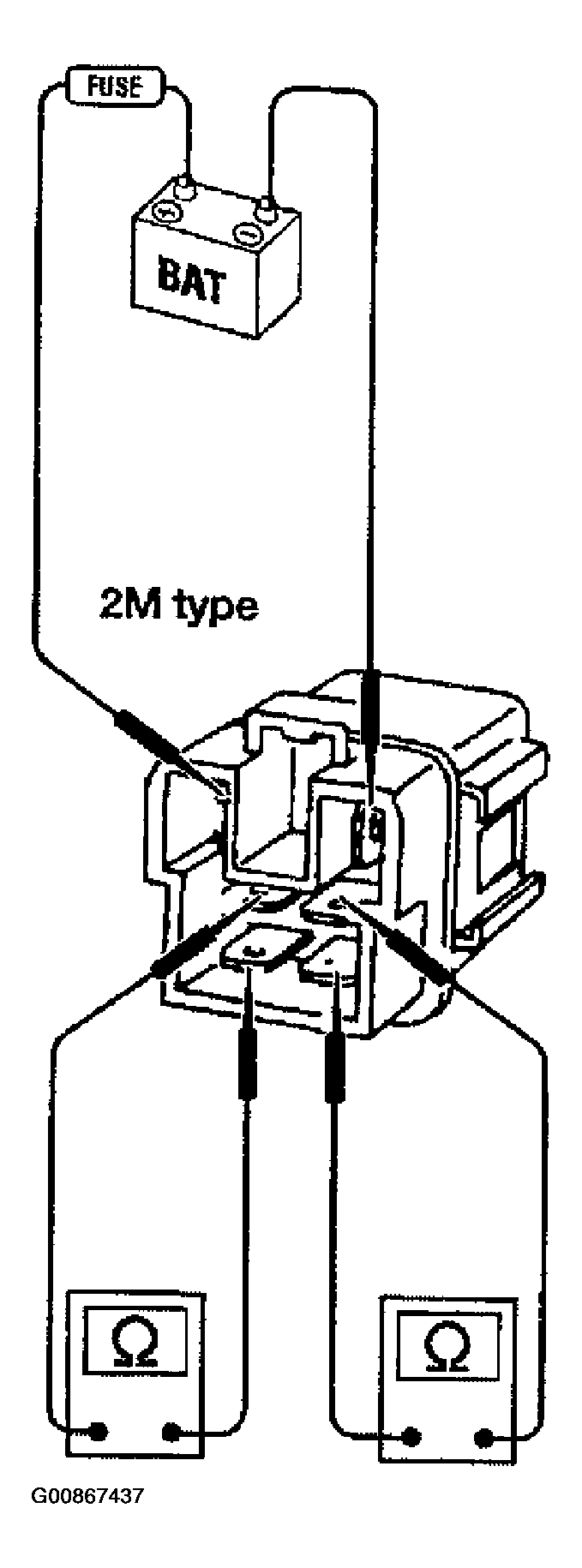

Fig 1: Identifying Rear Blower Motor Relay Component
G00867437Courtesy of NISSAN MOTOR CO., U.S.A.
