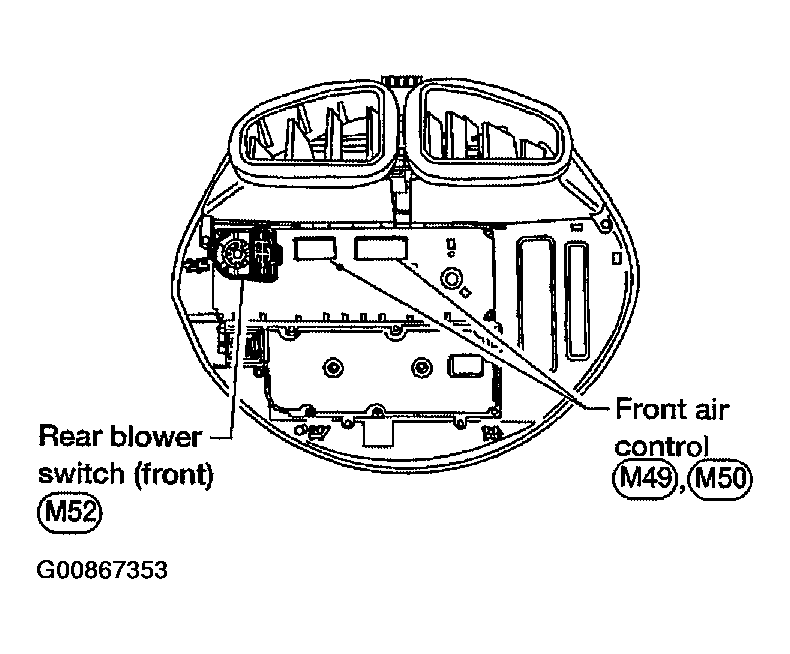

Front Air Control
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
The front air control has a built-in microcomputer which processes information sent from various sensors needed for air conditioner operation. The air mix door motors, mode door motor, intake door motors, defroster door motor, blower motor and compressor are then controlled.
The front air control is unitized with control mechanisms. When the various switches and temperature dials are operated, data is input to the front air control.
Self-diagnostic functions are also built into the front air control to provide quick check of malfunctions in the auto air conditioner system.
