Performance Test Diagnoses

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

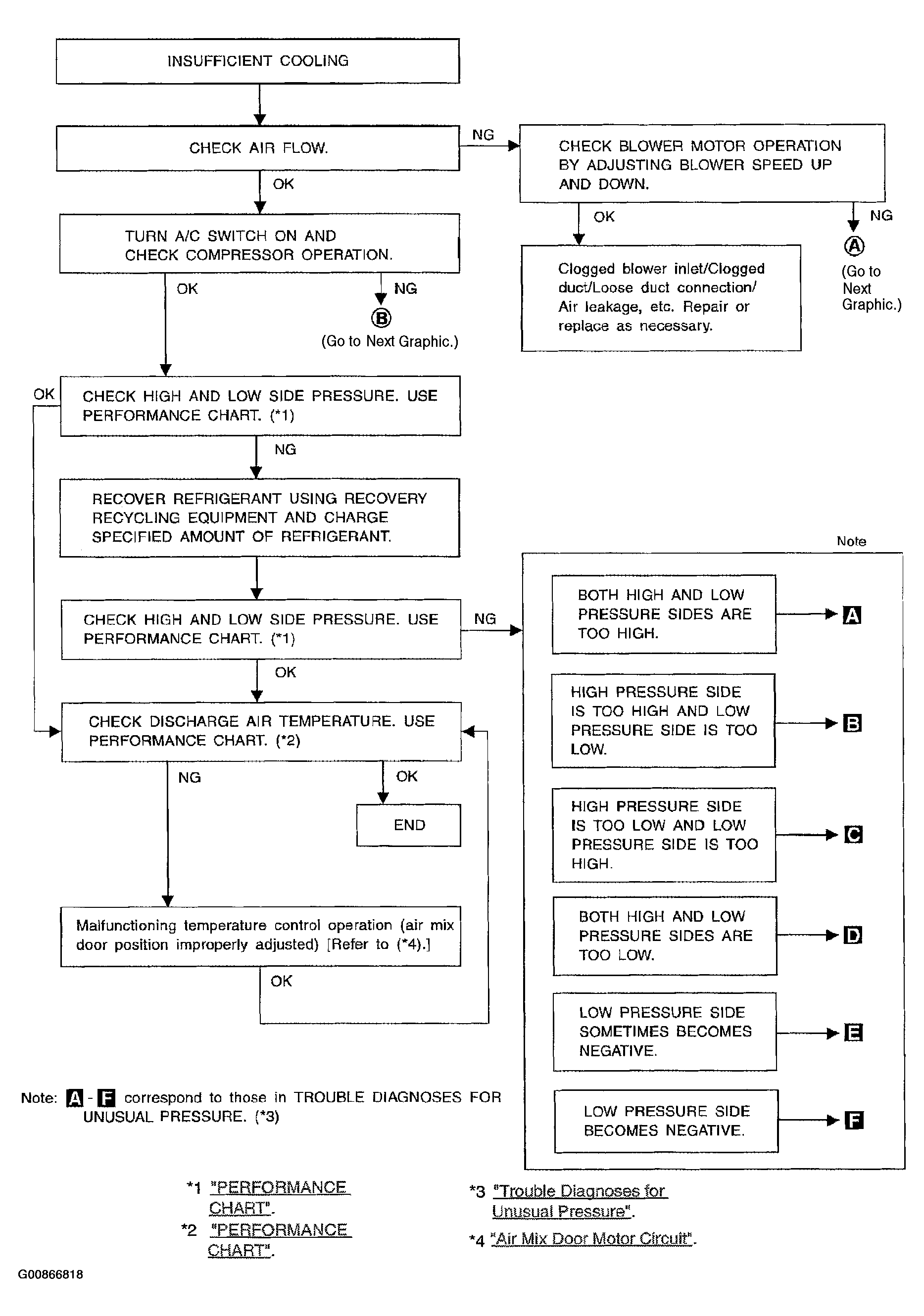

Fig 1: Performance Test Diagnoses Flow Chart
G00866818Courtesy of NISSAN MOTOR CO., U.S.A.

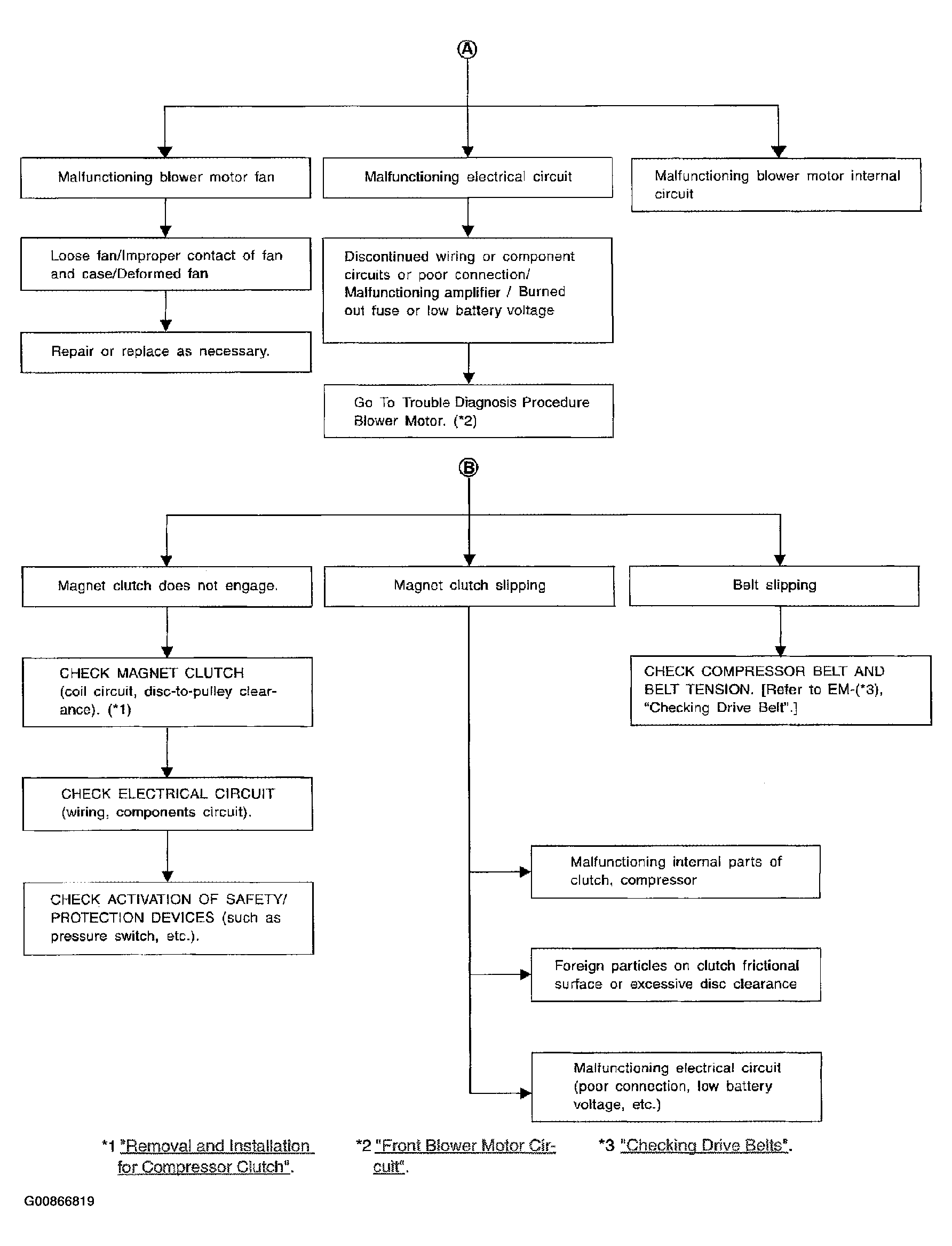

Fig 2: Trouble Diagnoses Flow Chart
G00866819Courtesy of NISSAN MOTOR CO., U.S.A.
