Low-pressure Side Becomes Negative

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

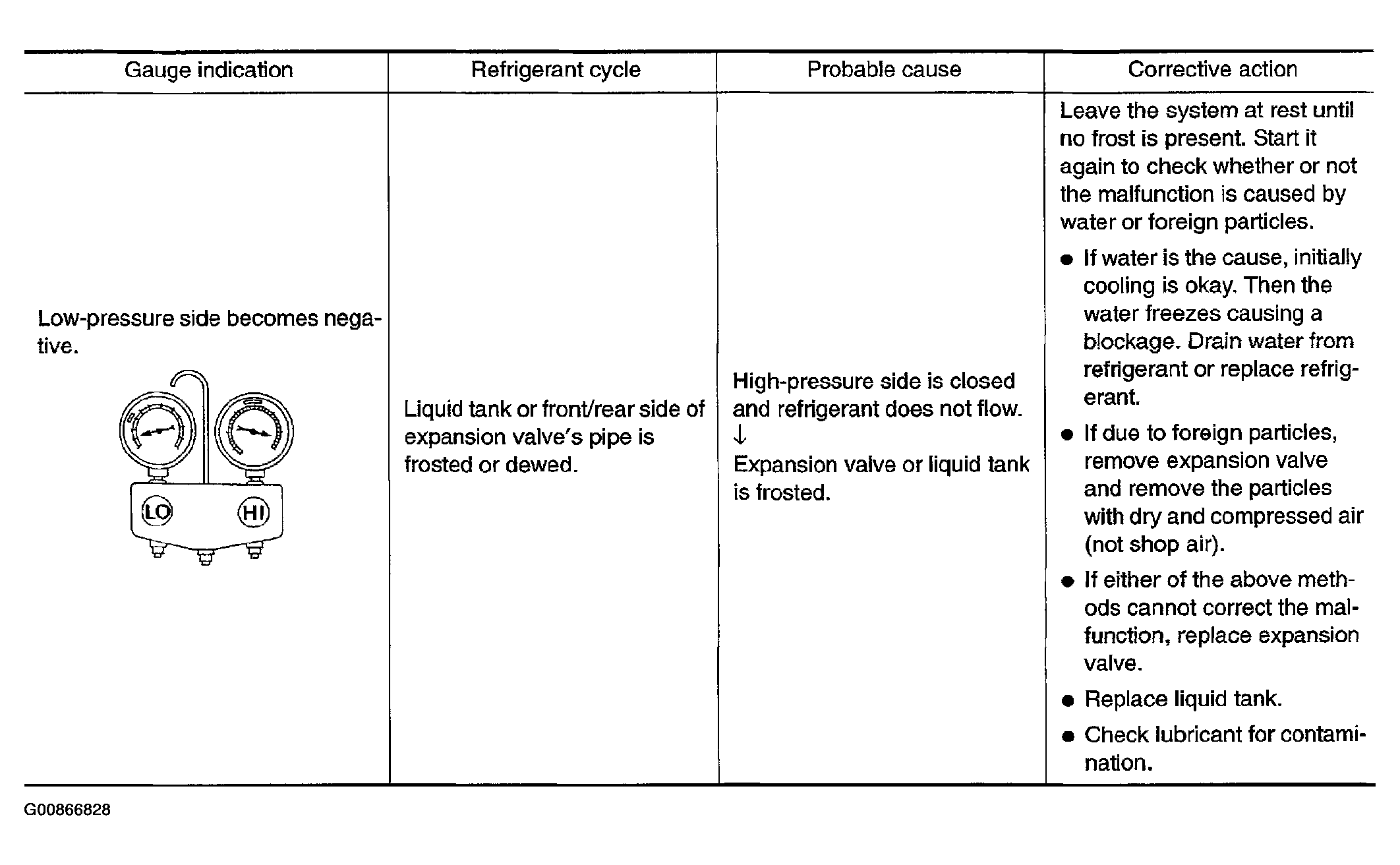

Fig 1: Low-Pressure Side Becomes Negative - Gauge Indication Chart
G00866828Courtesy of NISSAN MOTOR CO., U.S.A.
