In-vehicle Sensor

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

The in-vehicle sensor is located on instrument lower driver panel. It converts variations in temperature of passenger compartment air (drawn in through the integrated fan) into a resistance value. It is then input into the front air control.

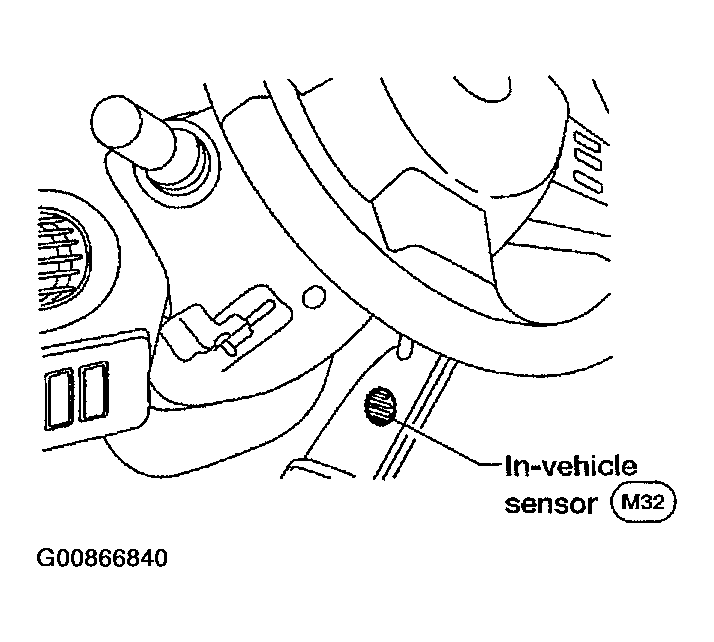

Fig 1: Identifying In-Vehicle Sensor Circuit
G00866840Courtesy of NISSAN MOTOR CO., U.S.A.

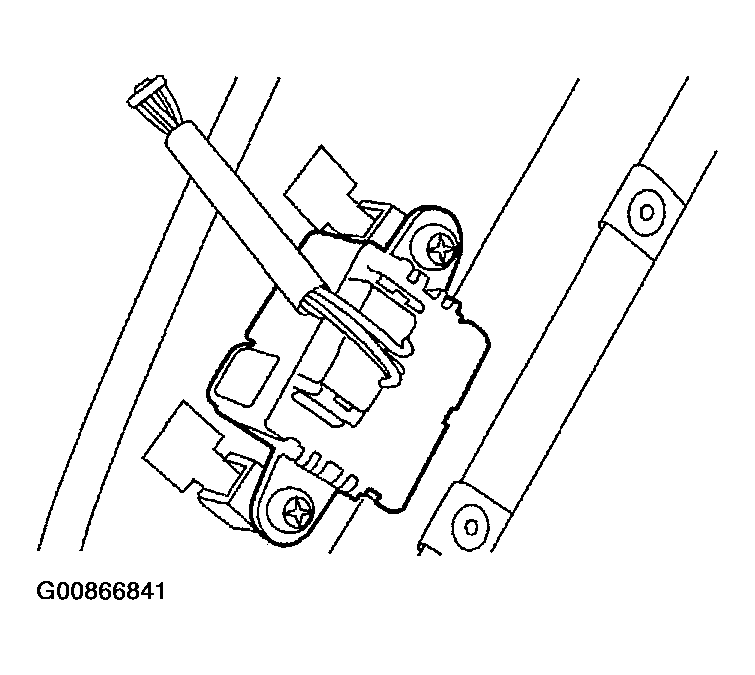

Fig 2: Identifying In-Vehicle Sensor Component
G00866841Courtesy of NISSAN MOTOR CO., U.S.A.
