Refrigerant Pressure Sensor

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

The refrigerant pressure sensor is attached to the condenser.

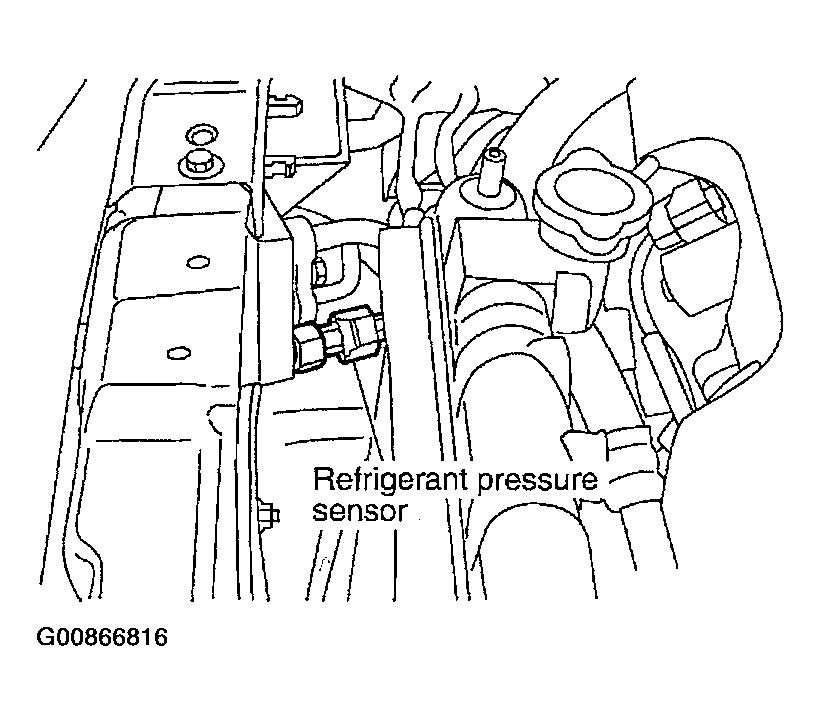

Fig 1: Identifying Refrigerant Pressure Sensor
G00866816Courtesy of NISSAN MOTOR CO., U.S.A.
