Ambient Sensor

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

After disconnecting ambient sensor connector, measure resistance between terminals 2 and 1 at sensor component side, using the table below.

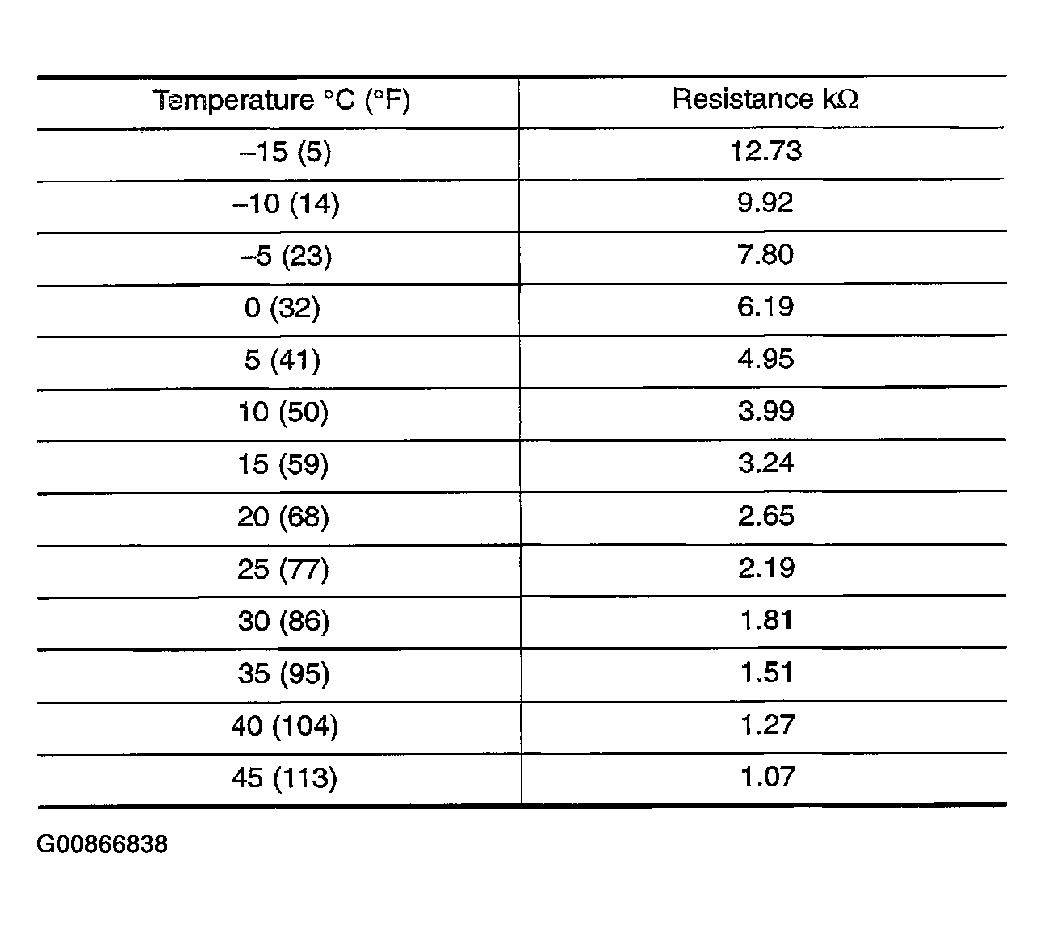

Fig 1: Temperature Resistance Specification Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace ambient sensor.

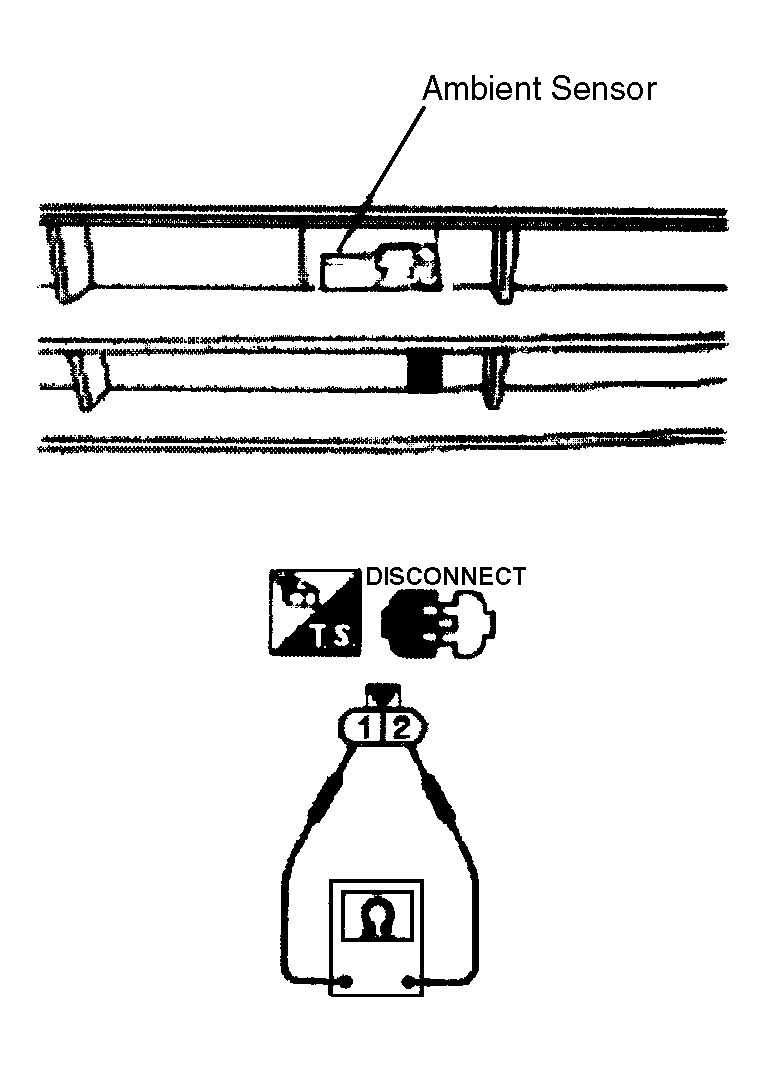

Fig 2: Measuring Resistance Between Terminals 2 And 1 At Sensor Component Side

Courtesy of NISSAN MOTOR CO., U.S.A.
