Front Blower Motor Relay

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals by supplying 12 volts and ground to coil side terminals of relay.

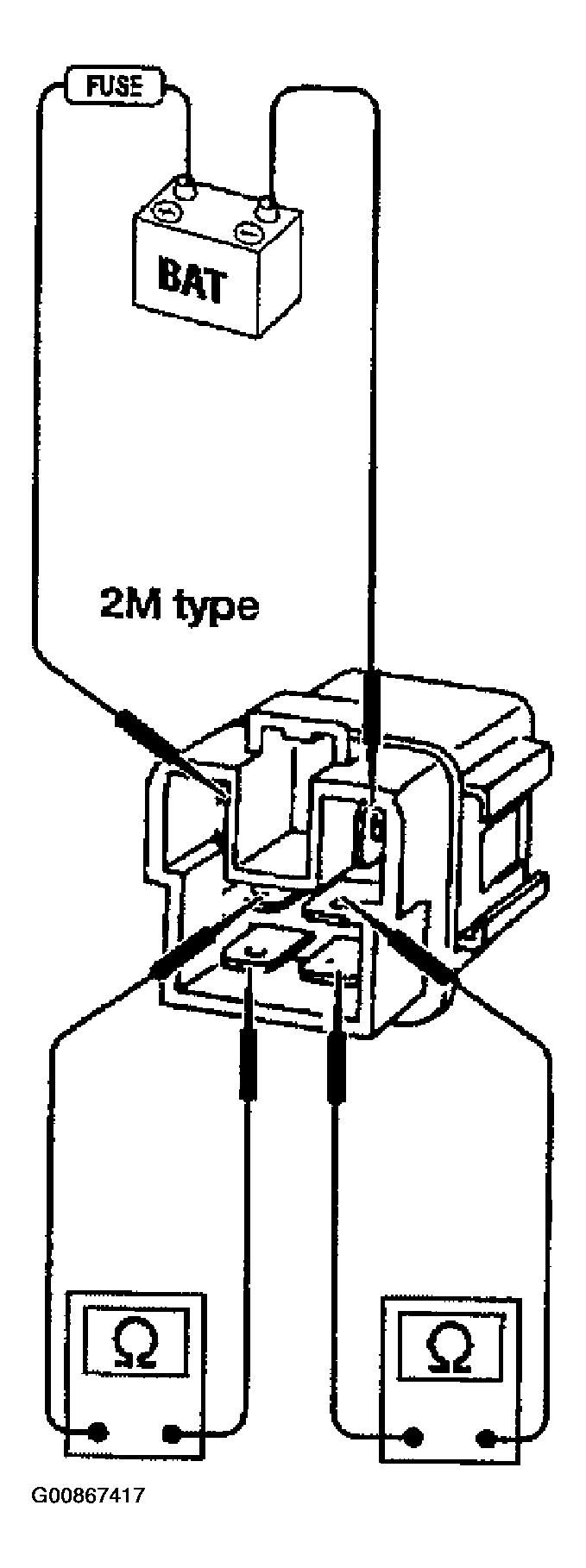

Fig 1: Identifying Front Blower Motor Relay
G00867417Courtesy of NISSAN MOTOR CO., U.S.A.
