Removal and Installation for Front Expansion Valve: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Discharge the refrigerant. Refer to HFC-134A (R-134A) SERVICE PROCEDURE .
  2. Remove the front heater and cooling unit assembly. Refer to "FRONT HEATER AND COOLING UNIT ASSEMBLY ".
  3. Remove the cooler grommet.
  4. Remove the expansion valve.

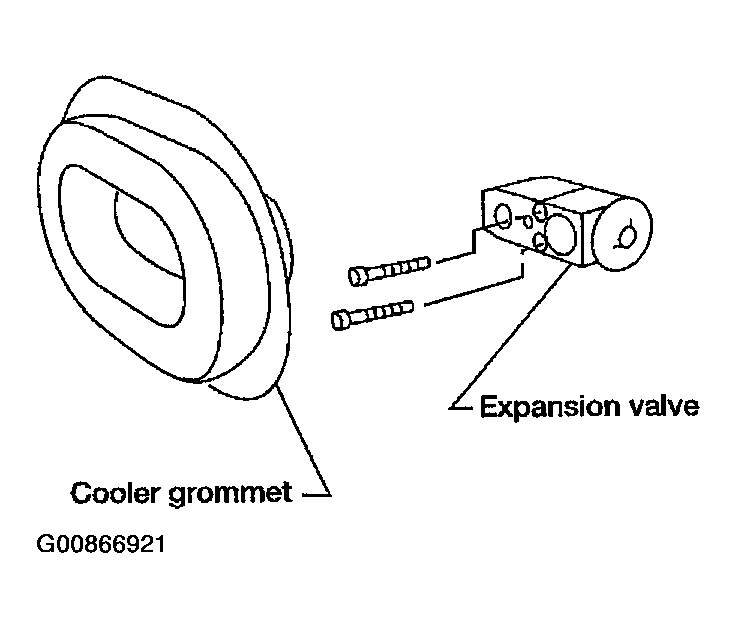

    Fig 1: Identifying Cooler Grommet And Expansion Valve
    G00866921Courtesy of NISSAN MOTOR CO., U.S.A.
