Evacuating System and Charging Refrigerant
WARNING:
This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

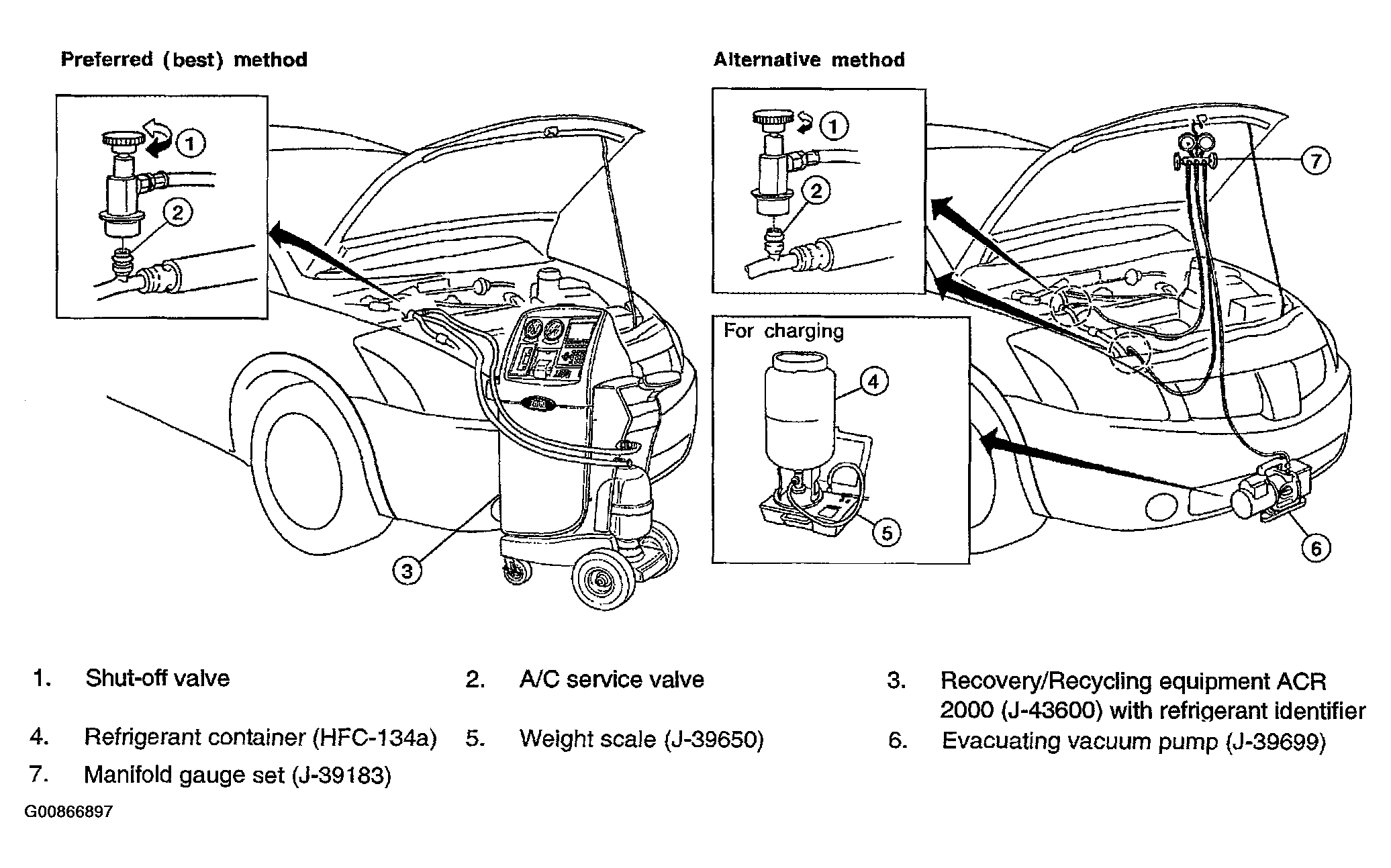

Fig 1: Identifying Evacuating System And Charging Refrigerant
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Refrigerant Lines Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
