Precautions For Handling Leak Detector

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When performing a refrigerant leak check, use a electronic refrigerant leak detector (J-41995) or equivalent. Ensure that the electronic refrigerant leak detector (J-41995) is calibrated and set properly according to the manufacturer's operating instructions.
The electronic refrigerant leak detector (J-41995) is a delicate device. To use the leak detector properly, read the manufacturer's operating instructions and perform any specified maintenance.

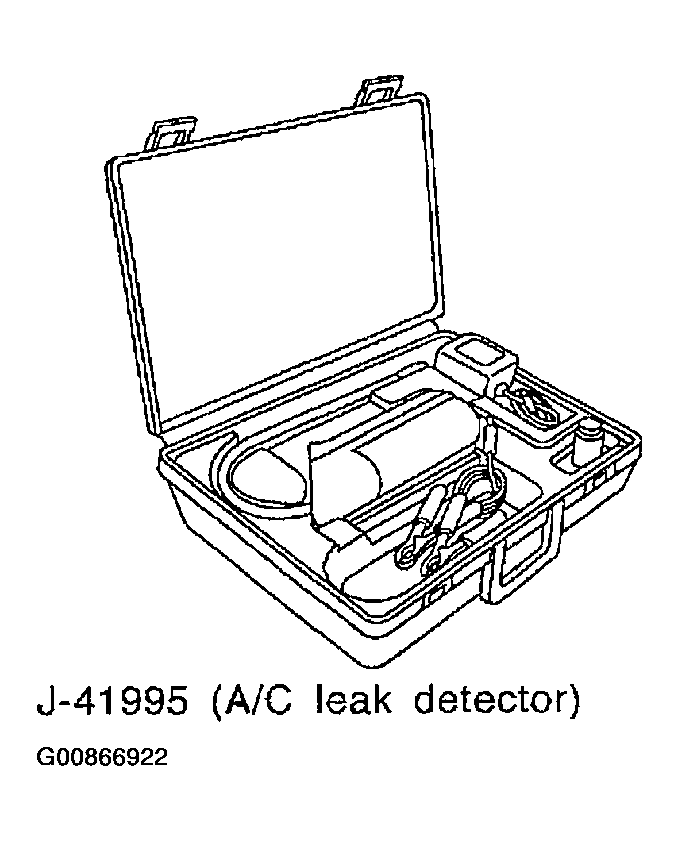

Fig 1: Identifying A/C Leak Detector

Courtesy of NISSAN MOTOR CO., U.S.A.

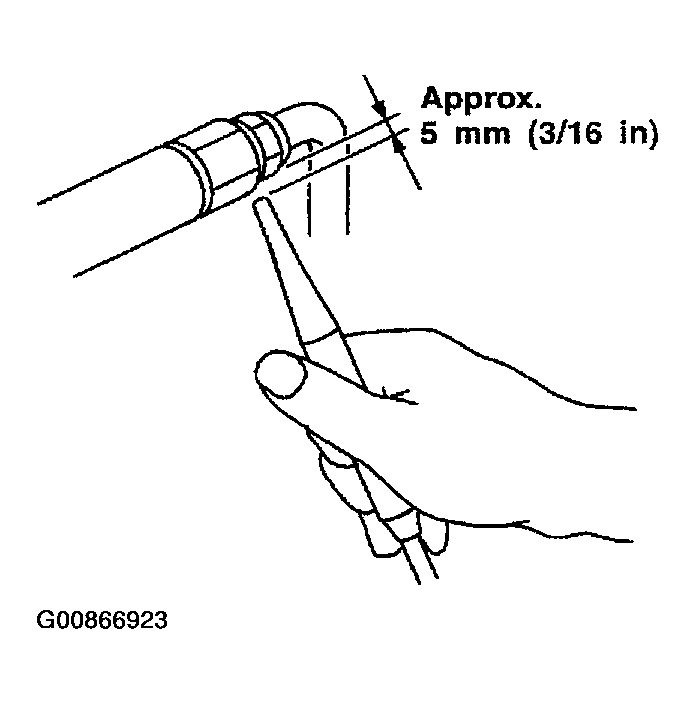

Position the probe approximately 5 mm (3/16 in) away from the point to be checked as shown.

Fig 2: Positioning Probe Approximately Away From Point
Courtesy of NISSAN MOTOR CO., U.S.A.

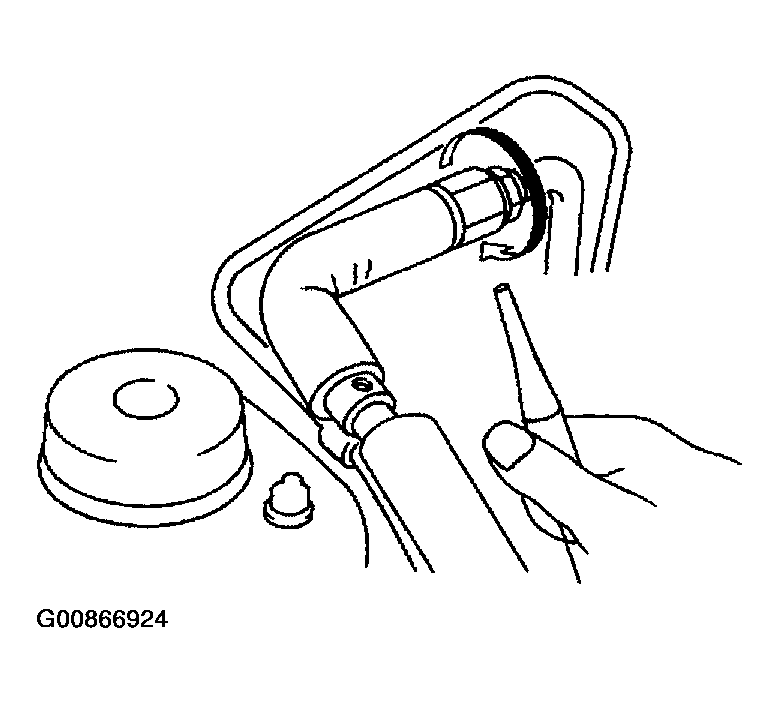

When checking for leaks, circle each fitting completely with the probe as shown.

Fig 3: Checking For Leaks
Courtesy of NISSAN MOTOR CO., U.S.A.

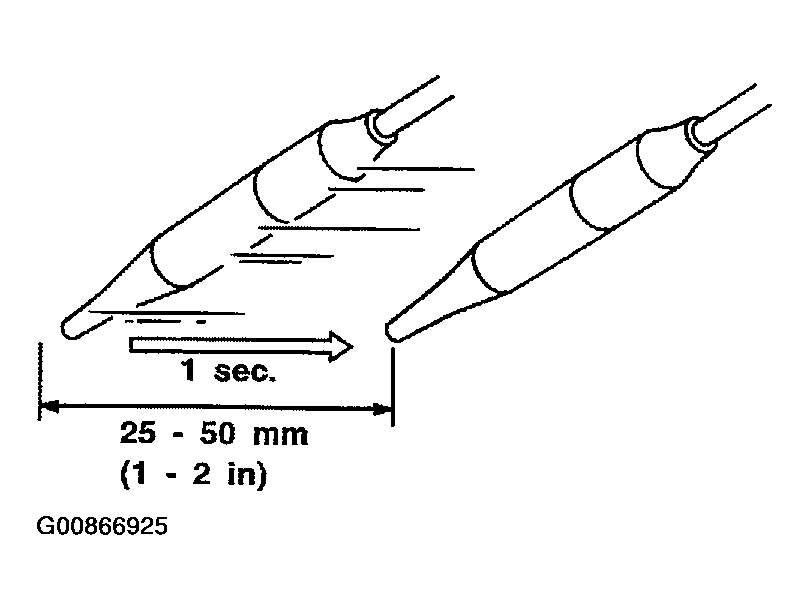

Move the probe along each component at a speed of approximately 25 - 50 mm (1 - 2 in)/second as shown.

Fig 4: Moving Probe Along Each Component
Courtesy of NISSAN MOTOR CO., U.S.A.
