HFC-134A (R-134A) Service Tools And Equipment

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Never mix HFC-134a refrigerant and/or its specified lubricant with CFC-12 (R-12) refrigerant and/or its lubricant.

Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/lubricant.

Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles refrigerant and/or lubricant) are different between CFC-12 (R-12) and HFC-134a (R-134a). This is to avoid mixed use of the refrigerants/lubricant.

Adapters that convert one size fitting to another must never be used refrigerant/lubricant contamination will occur and compressor failure will result.

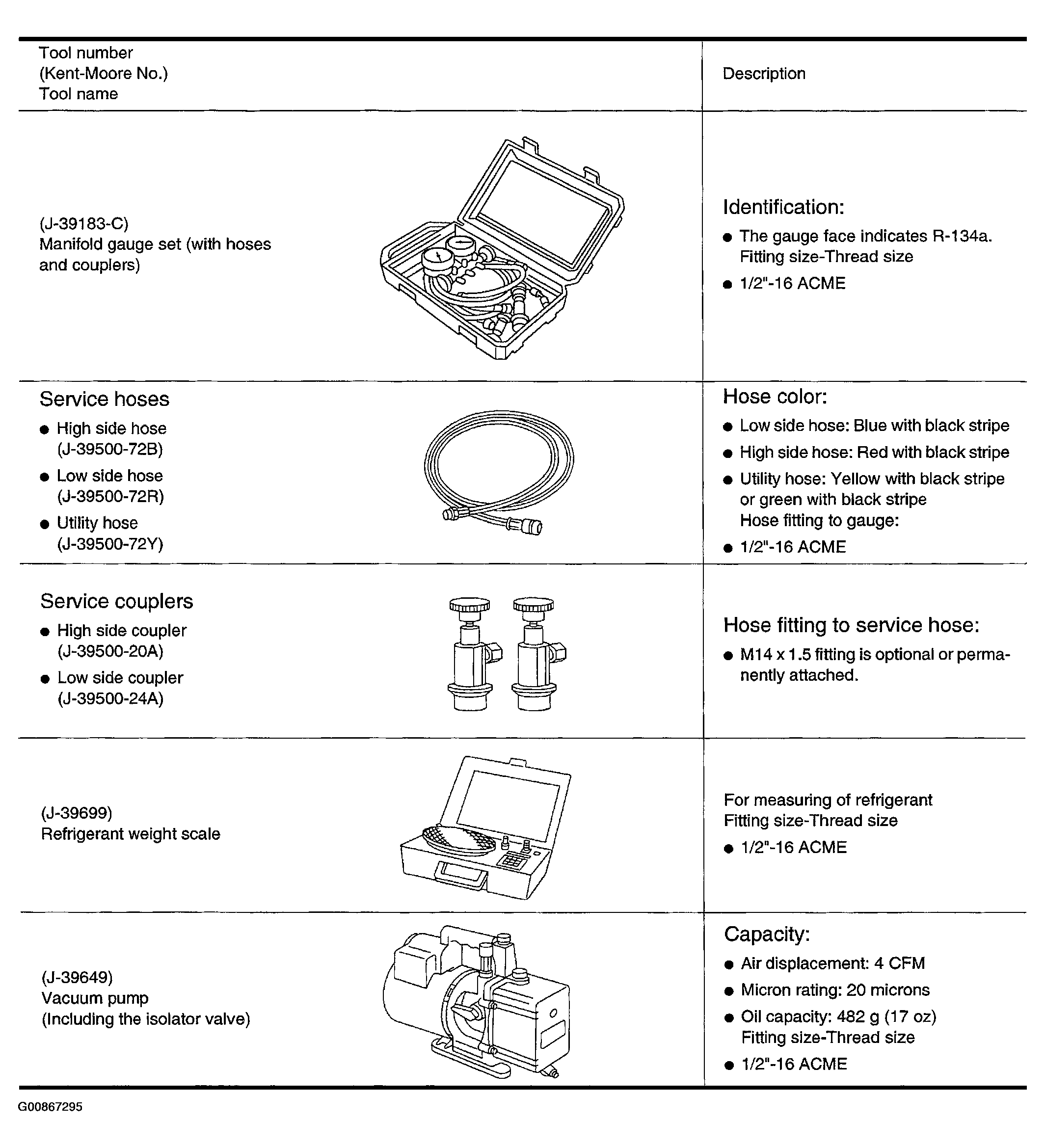

Fig 1: Identifying Service Tools And Equipment (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

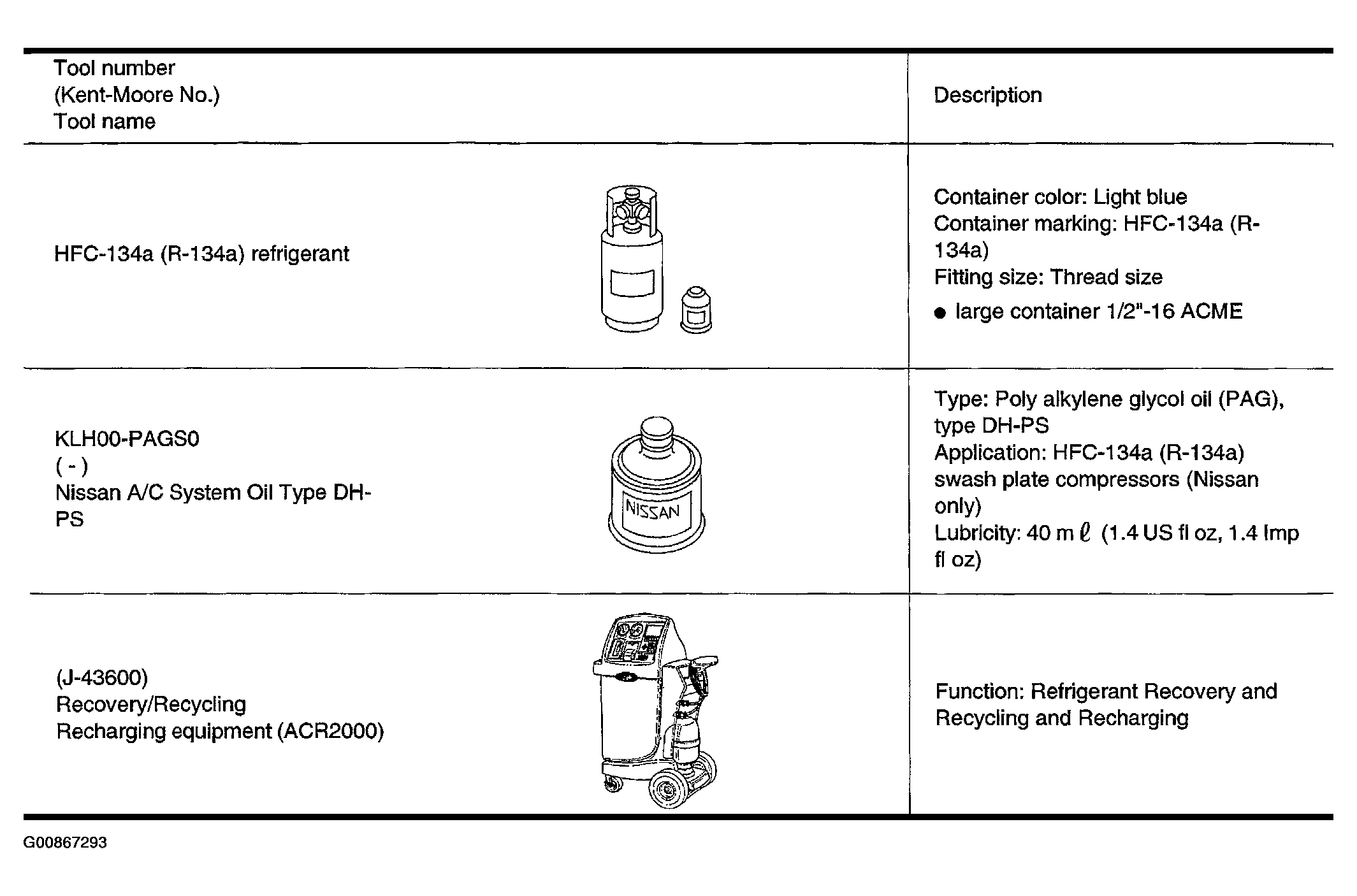

Fig 2: Identifying Service Tools And Equipment (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

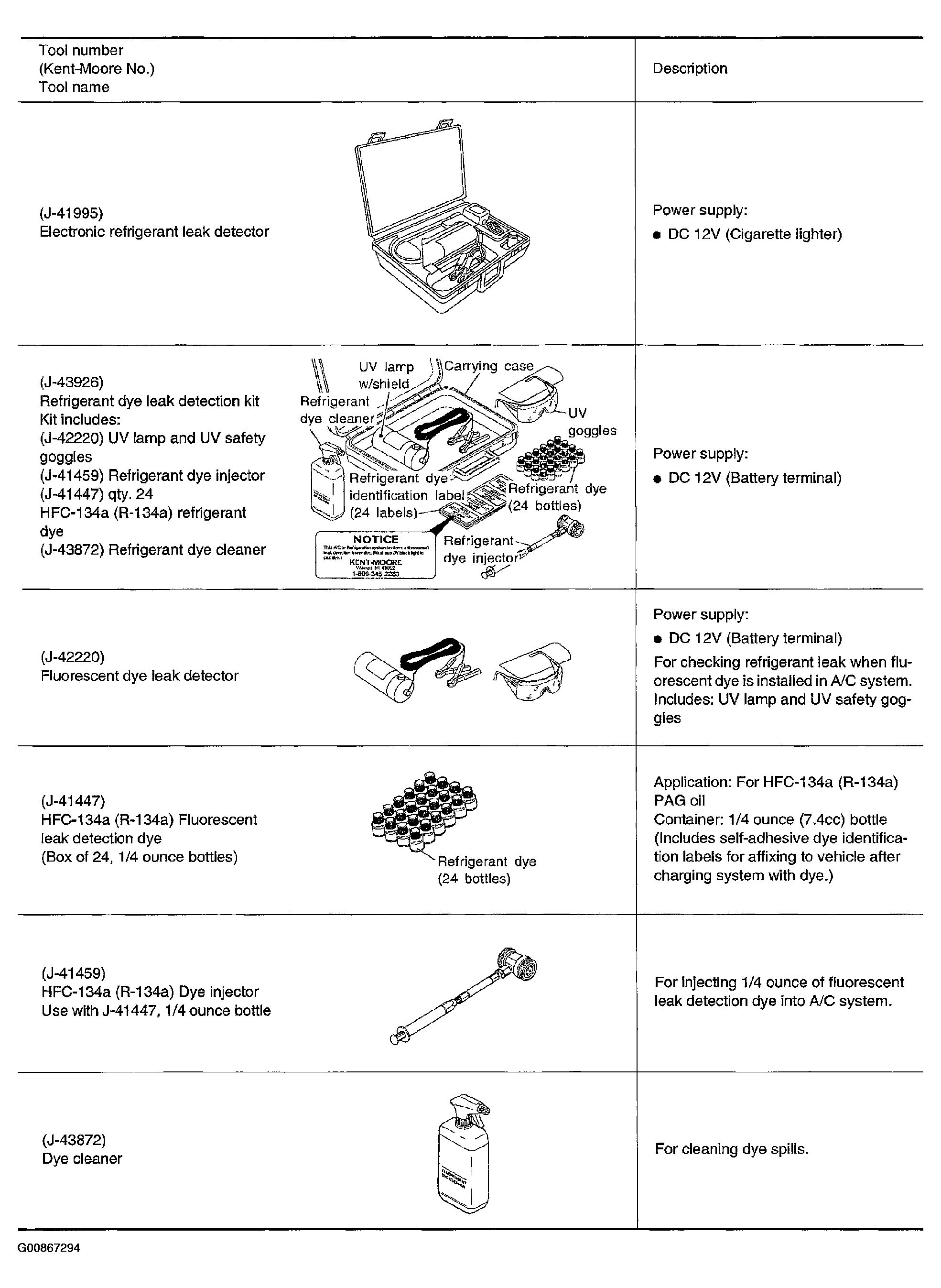

Fig 3: Identifying Service Tools And Equipment (3 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
