Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument passenger lower panel and glove box. Refer to "INSTRUMENT LOWER PANEL RH AND GLOVE BOX ".
  2. Remove the center console trim panel.
  3. Disconnect the mode door motor electrical connector.
  4. Remove the three screws and remove the mode door motor.

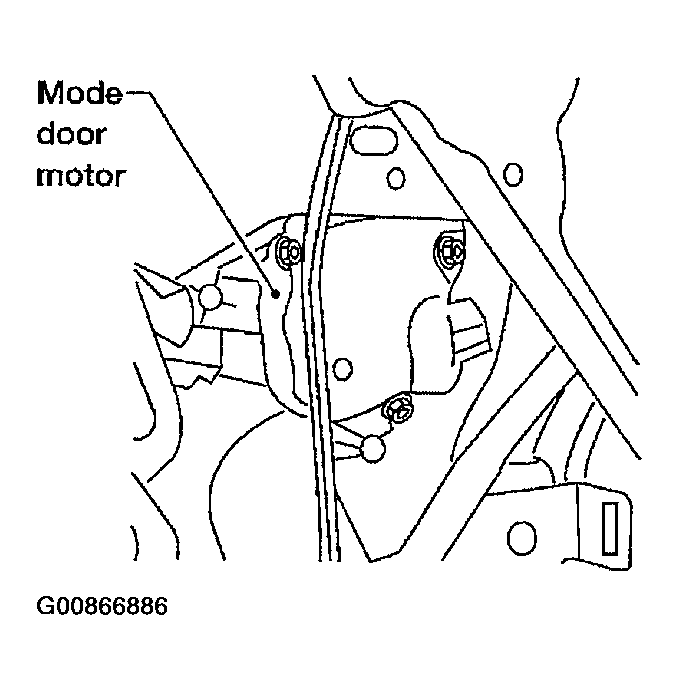

    Fig 1: Identifying Mode Door Motor
    G00866886Courtesy of NISSAN MOTOR CO., U.S.A.
