Rear Blower Motor

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear RH interior trim panel. Refer to EXTERIOR/INTERIOR .
  2. Disconnect the blower motor electrical connector.
  3. Remove the three screws and remove the blower motor.
  4. Installation is in the reverse order of removal.

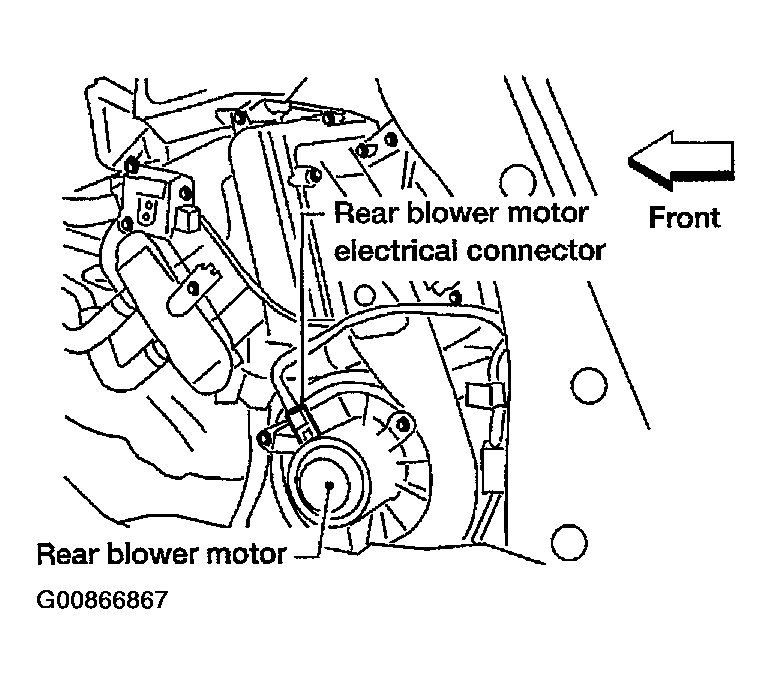

    Fig 1: Identifying Rear Blower Motor And Electrical Connector
    G00866867Courtesy of NISSAN MOTOR CO., U.S.A.
