Second Row: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift handle and tilt seat forward.
  2. Remove seat base trim cover.
  3. Remove seat anchor bolts and seat assembly.
  4. Remove seat striker covers and seat strikers.

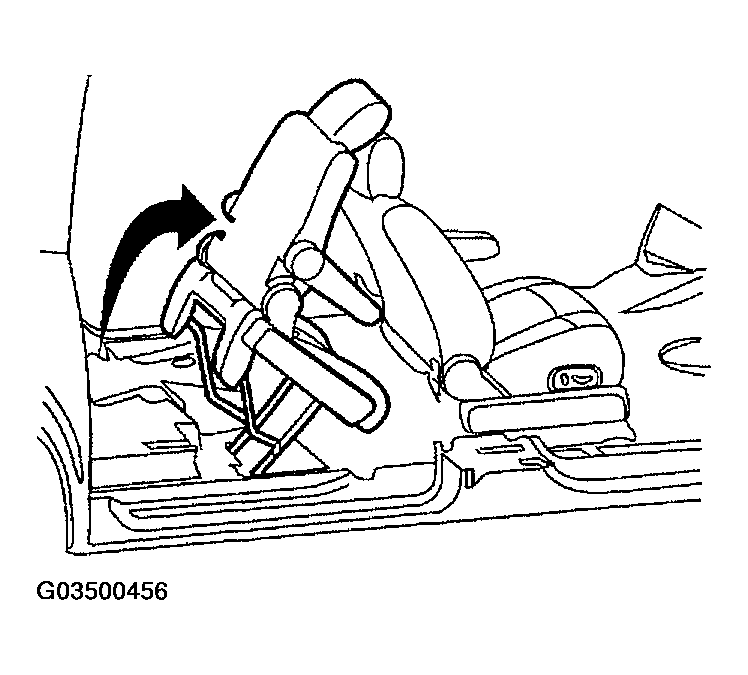

    Fig 1: Tilting Seat Forward
    G03500456Courtesy of NISSAN MOTOR CO., U.S.A.
