Manual Driver Seat

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

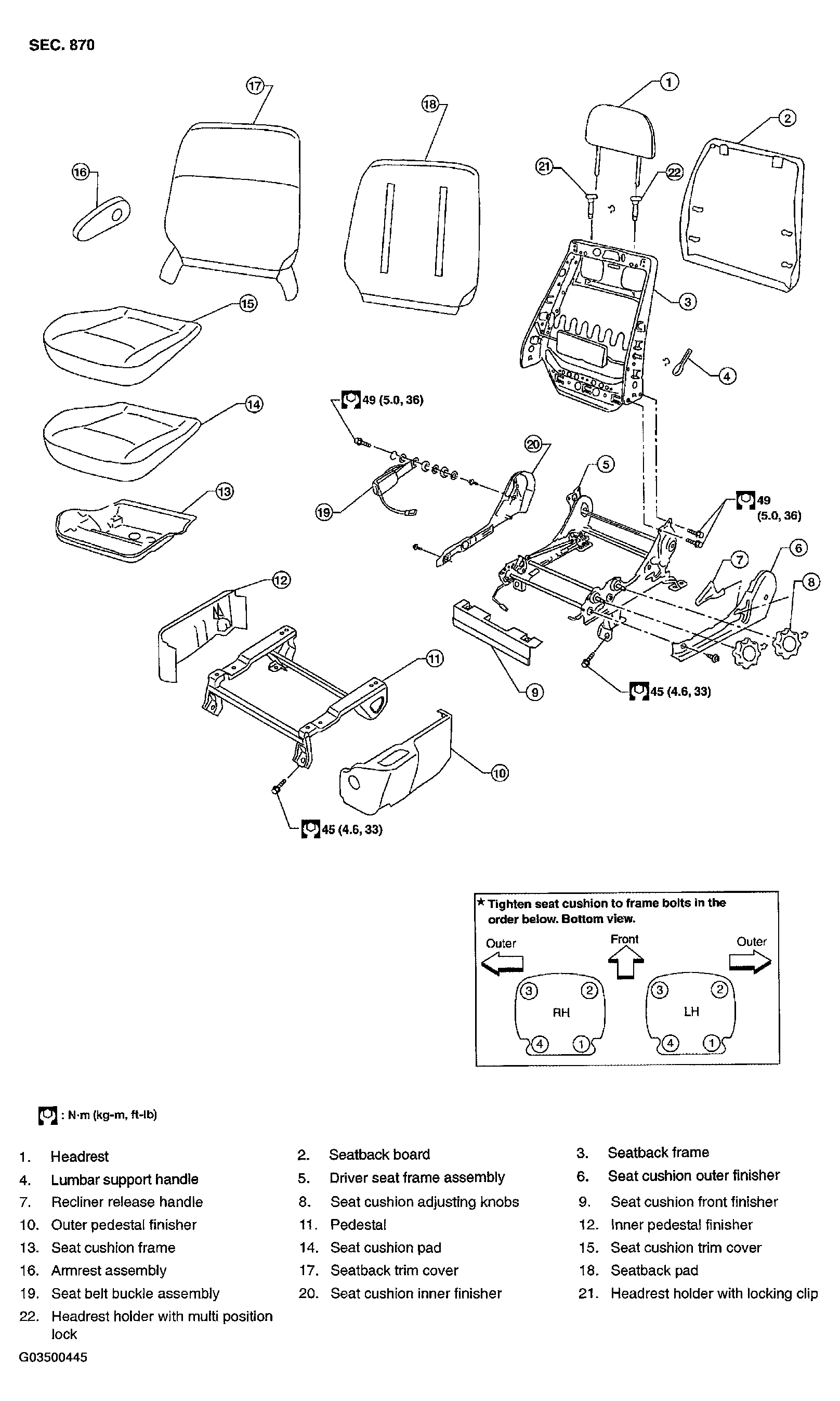

Fig 1: Manual Driver Front Seat Replacement Components With Torque Specifications
G03500445Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Power Driver Front Seat Replacement Components With Torque Specifications
G03500446Courtesy of NISSAN MOTOR CO., U.S.A.
