Seat Cushion Trim And Pad

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power seat switch knobs and trim plate (or recline knobs on manual seat).

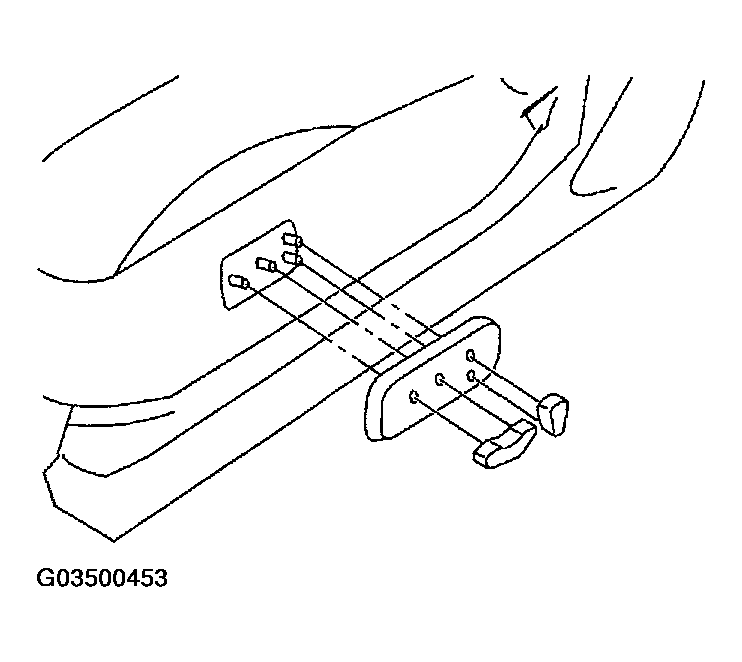

    Fig 1: Removing Power Seat Switch Knobs And Trim Plate
    G03500453Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove the front seat cushion finisher (inner).

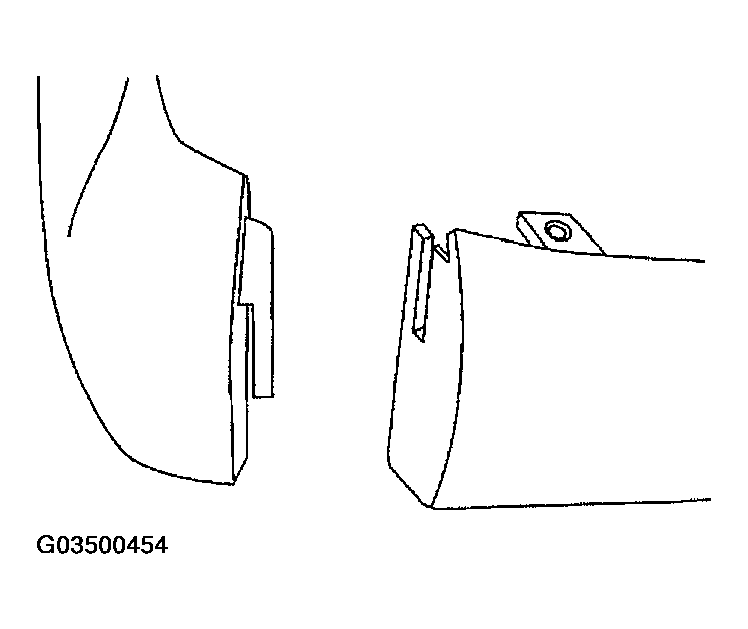

    Fig 2: Removing Front Seat Cushion Finisher (Inner)
    G03500454Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the power seat switch screws (or lift knobs on manual seats).
  4. Remove four bolts and the seat cushion assembly.
    Fig 3: Removing Four Bolts And Seat Cushion Assembly
    G03500455Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove the retainer on the seat cushion frame, then remove the harness connector for the seat heater.
  6. After removing the seat cushion trim and pad, remove the hog rings to separate the trim cover from the pad and seat cushion heater unit.
