Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

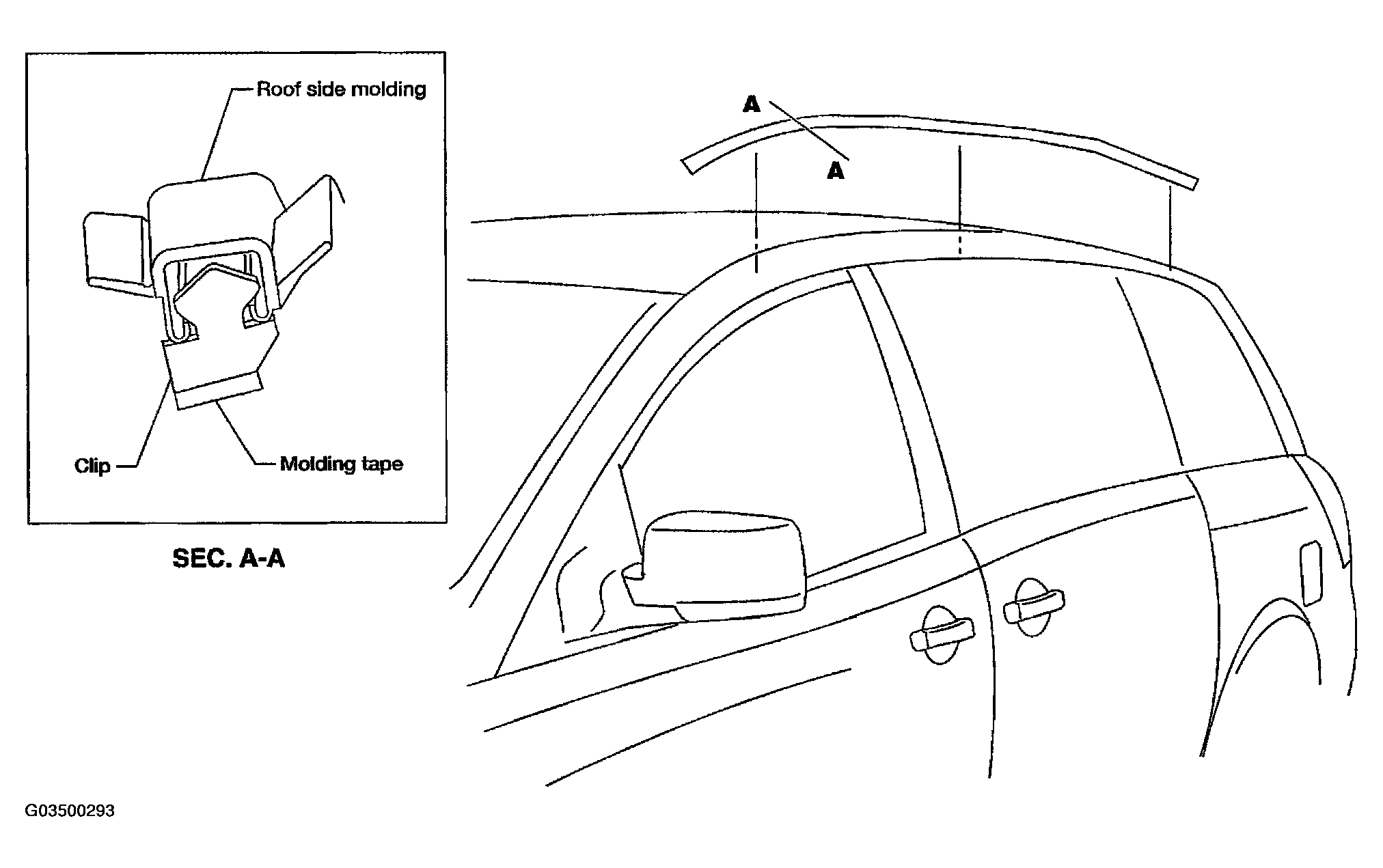

Fig 1: Removing Roof Side Molding
G03500293Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Lift roof side molding from front edge.
  2. Remove roof side molding.
    • Molding clips are attached to vehicle with tape.

    Installation is in the reverse order of removal.

    • Clean surface of roof where clips with molding tape will be mounted and surface of molding clip where tape is attached with isopropyl alcohol or equivalent to degrease the surface.
    • Use new molding tape on clips during installation.
