Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

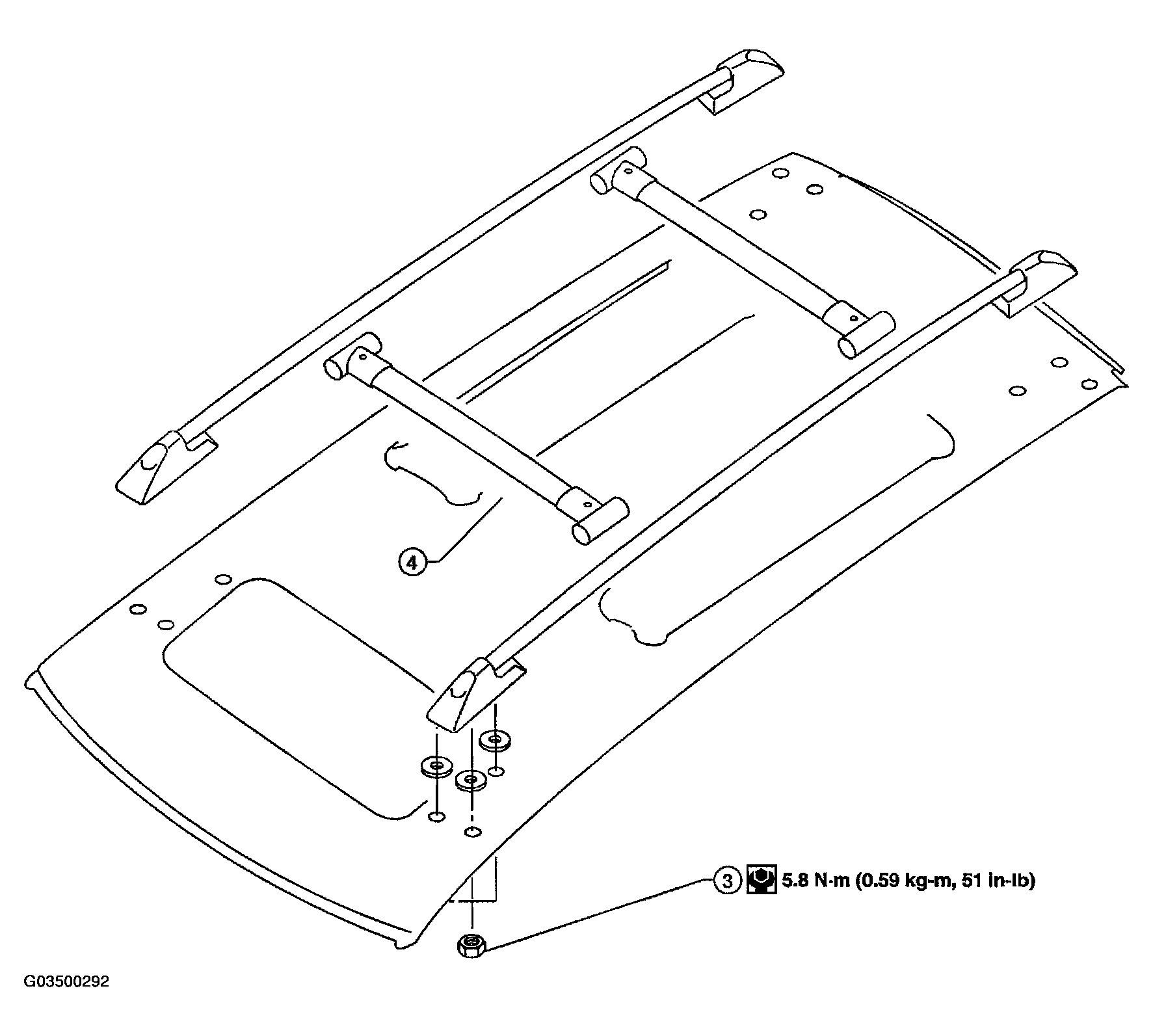

Fig 1: Removing Roof Rack with Torque Specs

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove body side trim. Refer to "BODY SIDE TRIM ".
Remove headlining. Refer to "HEADLINING ".
Remove roof rack.
- Remove nuts.
Remove crossbars.
- Remove screws from crossbar brackets.
  Installation is in the reverse order of removal.
  - Ensure the arrows on the crossbar brackets are pointing forward.
  - Be sure to install the foam washers with the soft side (non-plastic) facing towards the roof sheet metal.
