Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

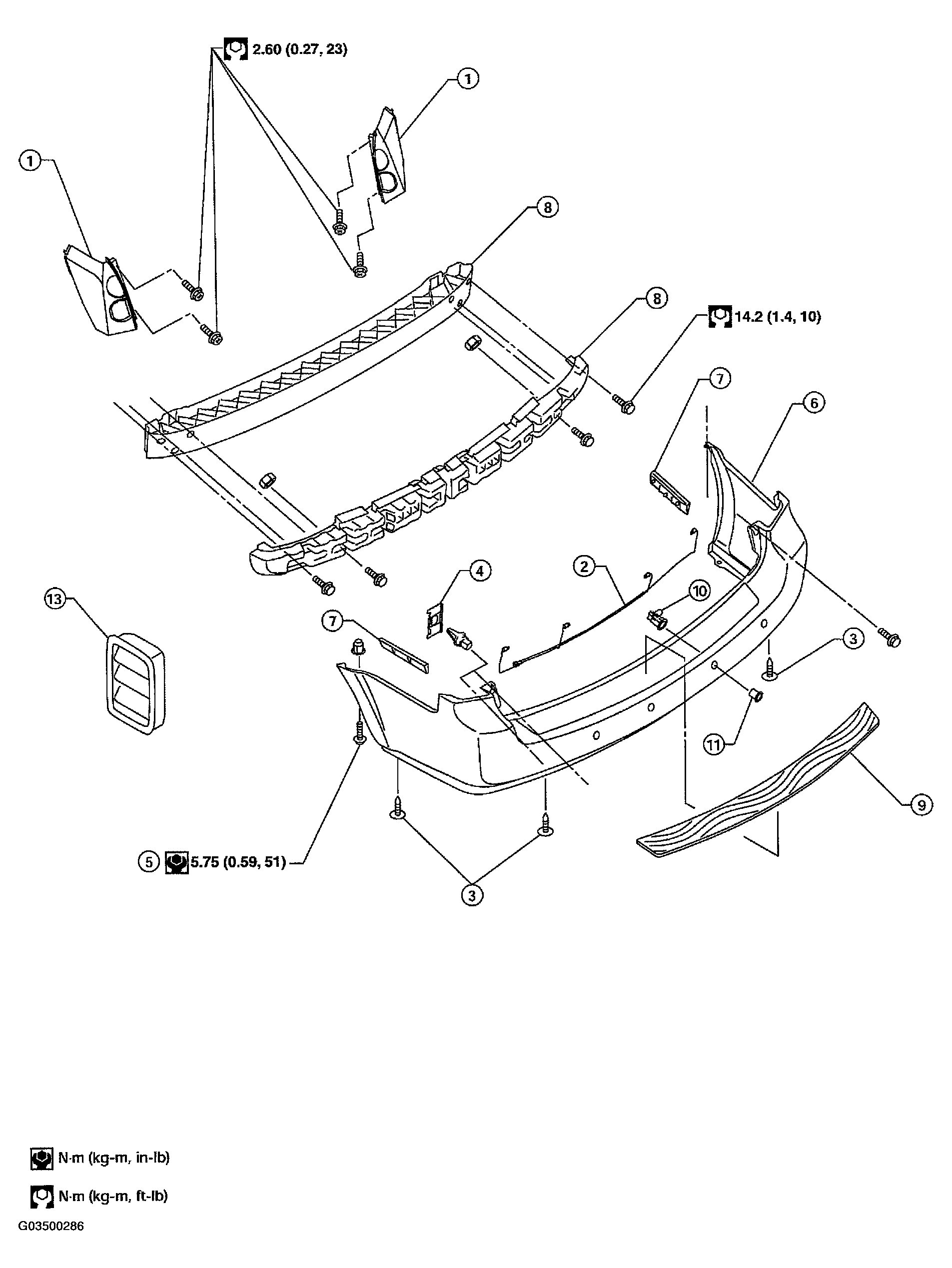

Fig 1: Removing Rear Bumper with Torque Specs
G03500286Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove rear combination lamp RH and LH assemblies. Refer to "REAR COMBINATION LAMP ".
  2. Disconnect sonar sensor harness connector, if equipped.
  3. Remove top and bottom clips from rear bumper fascia
  4. Remove rear bumper side brackets from rear bumper fascia.
    • Twist bracket 1/4 turn to remove.
  5. Remove rear bumper fascia screws.
  6. Remove rear bumper fascia.
  7. Remove rear bumper side brackets.
  8. Remove bumper reinforcement.
    • Separate energy absorber and rear bumper reinforcement.
  9. Remove step pad from rear bumper fascia.
  10. Disconnect harness from sonar sensors, if equipped.
  11. Remove sonar sensors and retainers from rear bumper fascia, if equipped.
    • Separate sensors and retainers.
  12. Remove sonar sensor harness from rear bumper fascia.
  13. Remove drafter duct from rear bumper area.

Installation is in the reverse order of removal.
