Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

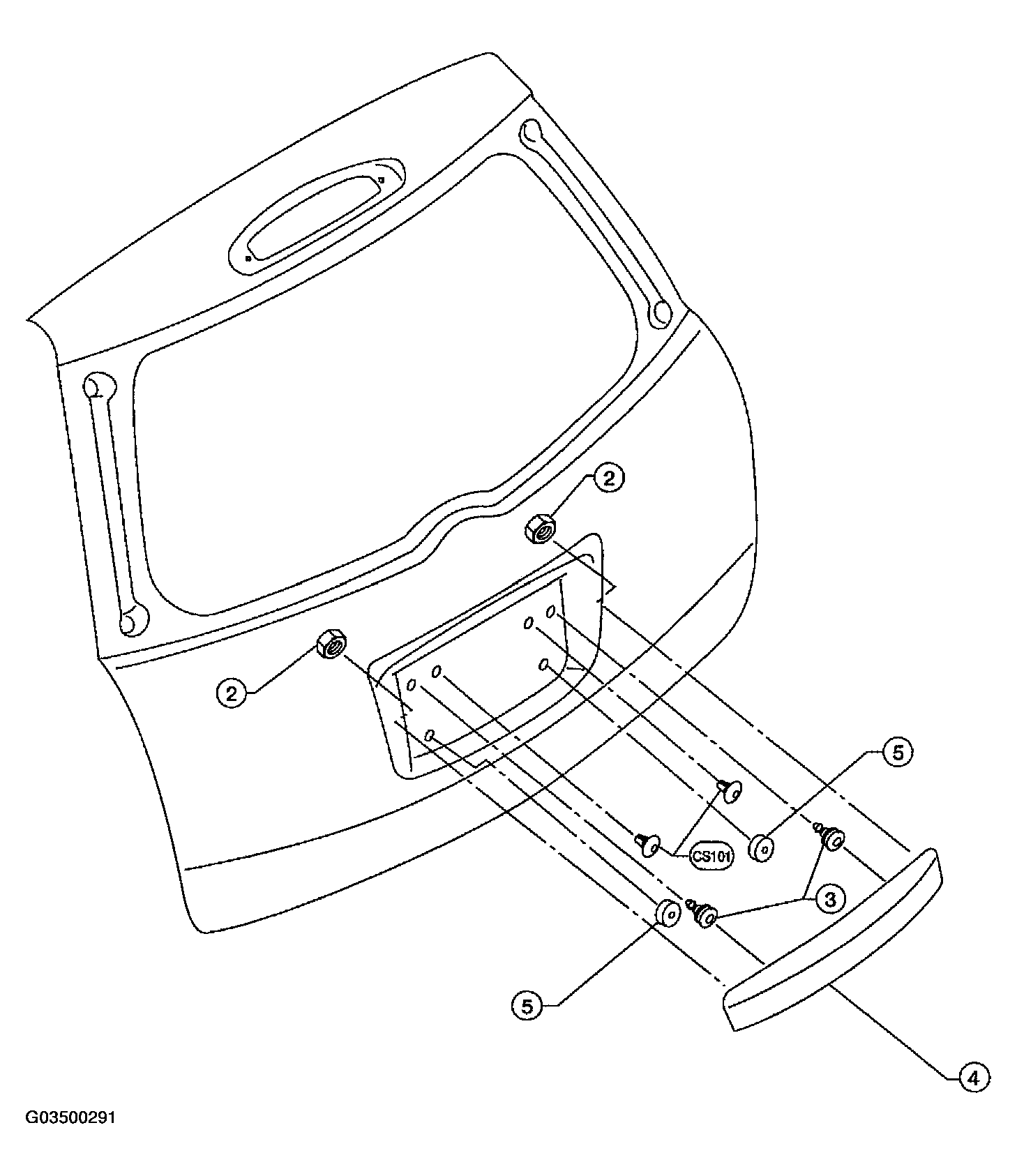

Fig 1: Removing License Lamp Finisher
G03500291Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove back door finisher. Refer to "BODY SIDE TRIM ".
  2. Remove nuts from license lamp finisher.
  3. Release clips on license lamp finisher.
  4. Remove license lamp finisher.
  5. Remove rubber bumpers.
    NOTE: If replacing rubber bumpers, clean surface where rubber bumpers will be mounted with isopropyl alcohol or equivalent to degrease the surface.

    Installation is in the reverse order of removal.
