Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

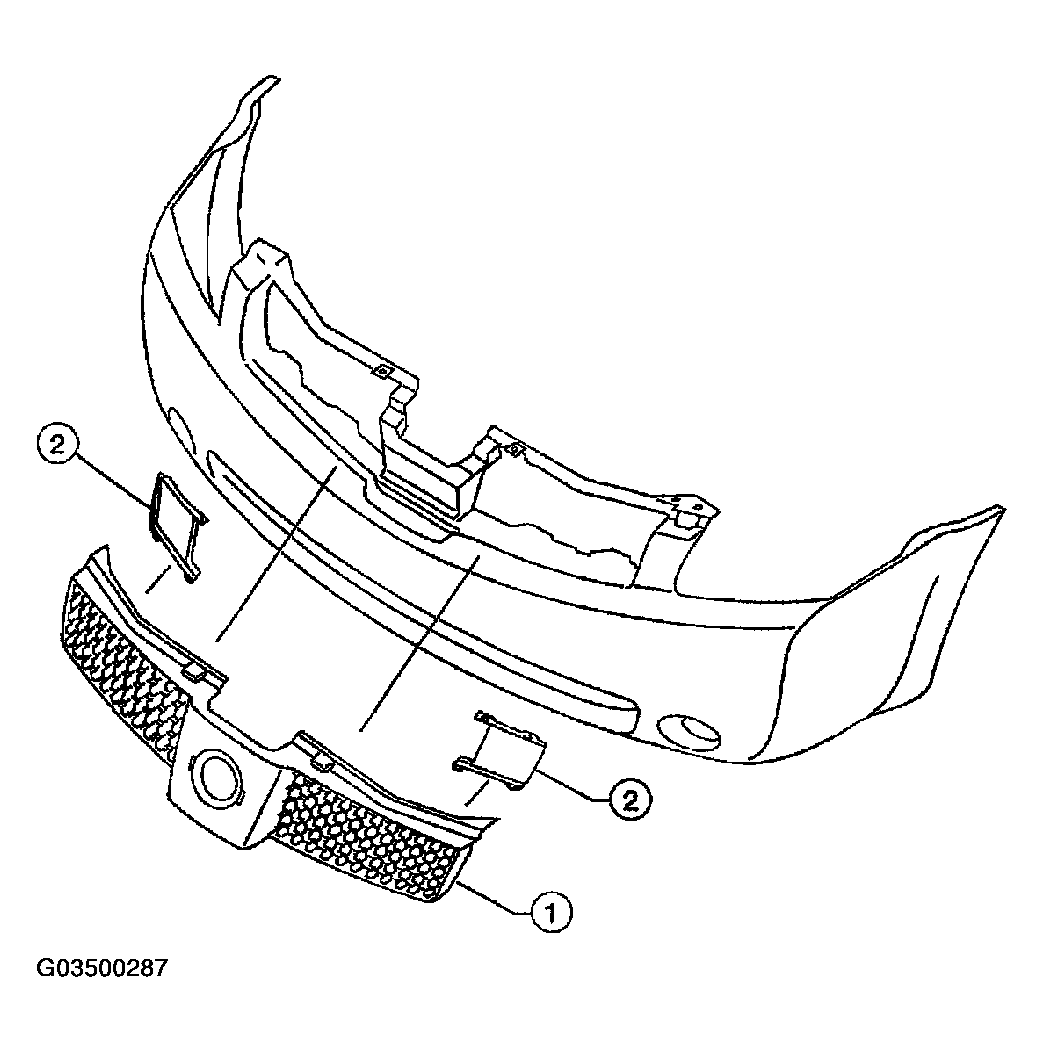

Fig 1: Removing Front Grille
G03500287Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Release clips attaching front grille to front bumper fascia and remove front grille.
  2. Release clips attaching RH and LH side deflectors to front grille and remove side deflectors.

Installation is in the reverse order of removal.
