Removal and Installation

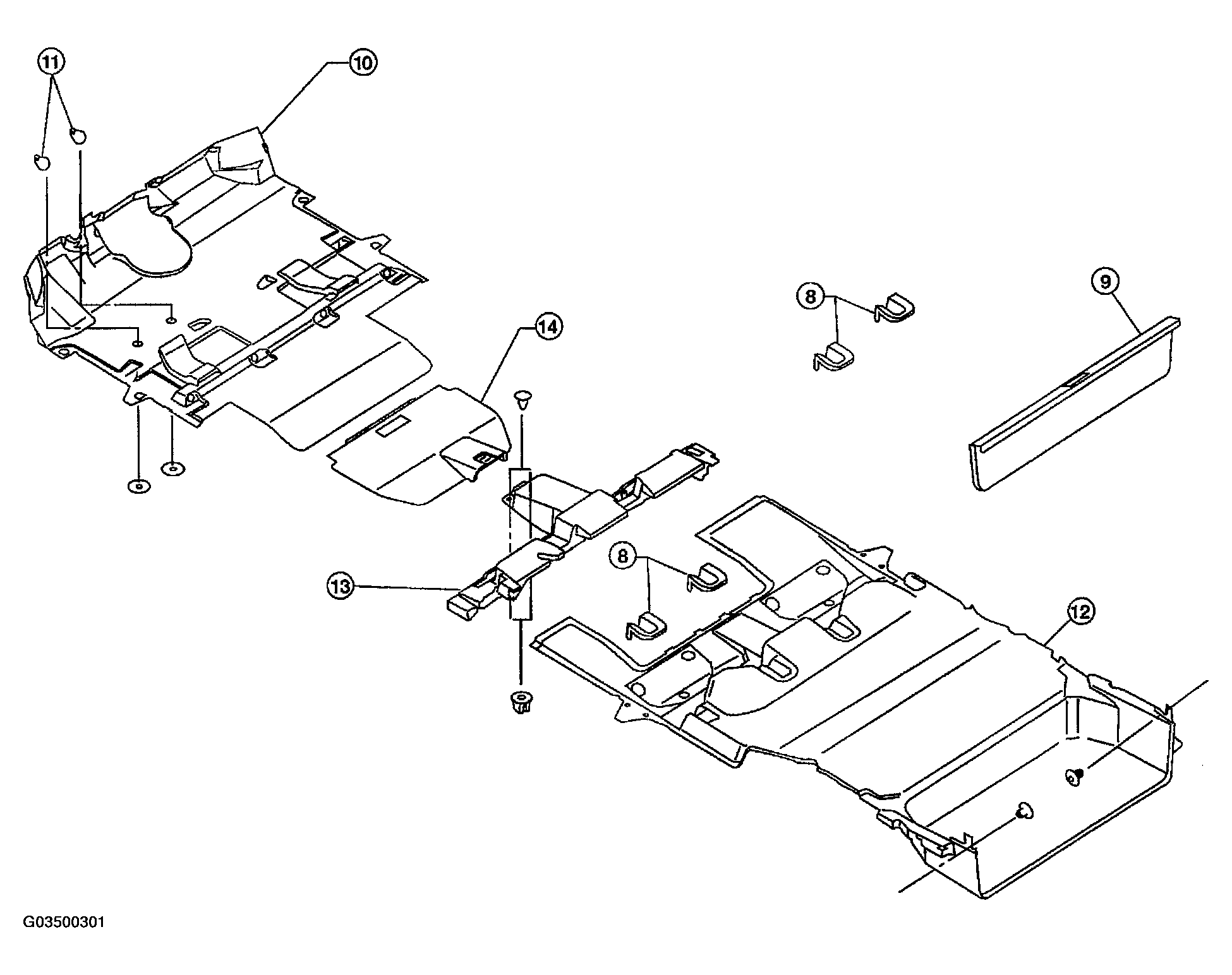

Fig 1: Removing Floor Trim

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Remove rear lower finisher assembly. Refer to "BODY SIDE TRIM ".
2. Remove front seats. Refer to "FRONT SEAT ".
3. Remove rear seats. Refer to "REAR SEAT ".
4. Remove 3rd row rear seat assembly. Refer to "REAR SEAT ".
5. Remove kicking plates. Refer to "BODY SIDE TRIM ".
6. Remove center console. Refer to "INSTRUMENT PANEL ASSEMBLY ".
7. Remove lower seat belt anchors. Refer to "SEAT BELTS ".
8. Remove rear seat striker covers.
9. Remove tailgate kicking plate assembly.
10. Remove front carpet.
11. Remove floor mat hooks from front carpet.
12. Remove rear carpet assembly.
13. Remove front floor spacer.
14. Remove spare tire cover.

Installation is in the reverse order of removal.
